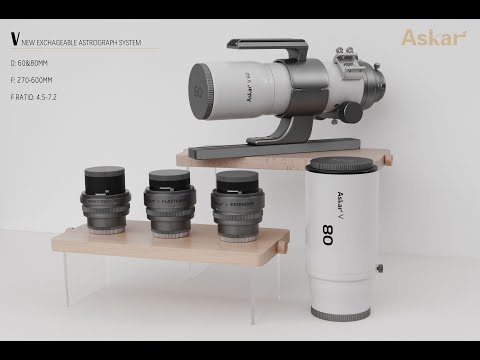

The Askar V is a revolutionary product that sets a new standard in the world of astrophotography and visual observation. This telescope offers a unique blend of versatility, high-quality optics, and innovative design, making it an indispensable tool for both beginners and experienced astronomers.
Key Features:

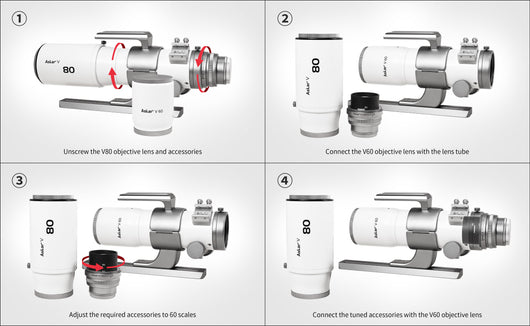

Dual Objective Lenses: The Askar V is equipped with two objective lenses—60mm and 80mm—both featuring a triplet APO design with two ED glass elements. This design effectively eliminates chromatic aberration, delivering sharp and clear images.

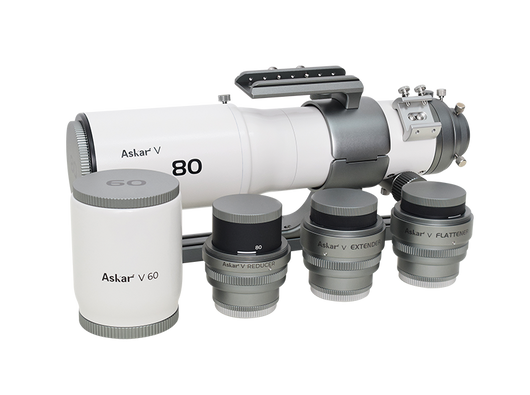

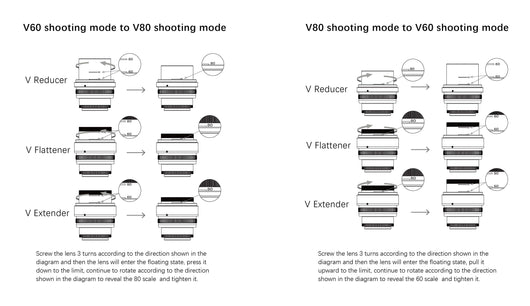

Three Functional Accessories: The telescope comes with a reducer, flattener, and extender, allowing users to adapt the Askar V to various focal lengths and imaging needs. The reducer expands the field of view and shortens exposure times, while the flattener improves field curvature and reduces aberrations. The extender increases the focal length, enabling clearer and more detailed observations.
Flexible Focal Ratios: With the V60 objective lens, you achieve a native focal ratio of f/6 (360mm), which can be reduced to f/4.5 (270mm) with the reducer. The V80 lens offers a focal ratio of f/6.25 (500mm), adjustable to f/4.8 (384mm) with the reducer. The V extender further extends the focal length to 446mm (f/7.43) with the V60 and 600mm (f/7.5) with the V80.
Elegant and Durable Design: The Askar V boasts a sleek ivory white and silver finish, exuding elegance and sophistication. Every detail of the telescope reflects Askar’s commitment to quality and craftsmanship, ensuring both beauty and functionality.

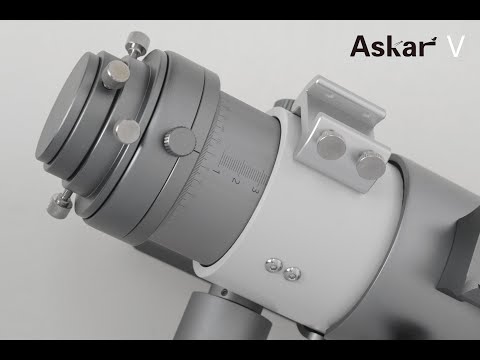

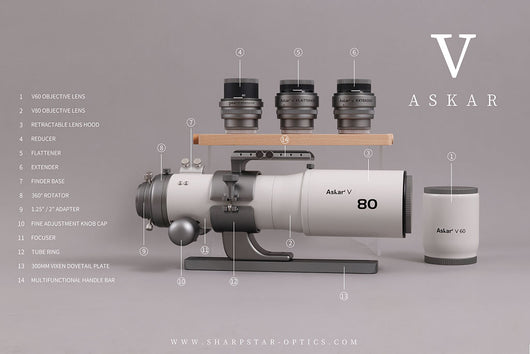

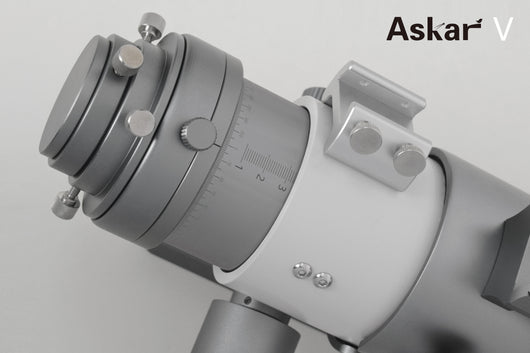

Enhanced Usability: The telescope features a new scaled 360° rotator and a multifunctional handle design, making it easy to connect to Vixen-style finder bases and other accessories. The included 1.25” and 2” visual adapters support high-quality visual observations.
Why Choose Askar V? The Askar V is a highly cost-effective telescope that caters to the needs of all levels of astronomy enthusiasts. Its multi-functionality and adaptability make it an excellent choice for anyone looking to explore the cosmos, whether you’re capturing breathtaking deep-sky images or enjoying detailed visual observations. The Askar V is truly a must-have for any serious amateur astronomer.
Upgrade your stargazing experience with the Askar V—where versatility meets precision.

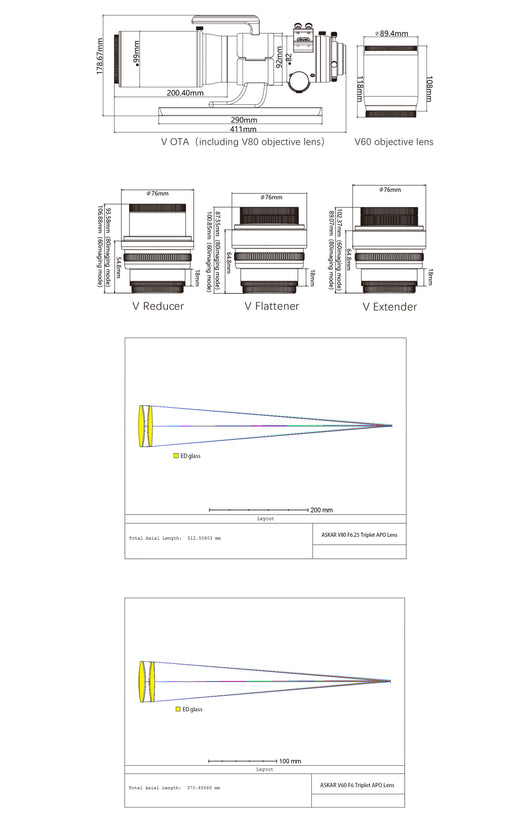

Specifications
V60 mode OTA Parameters
Aperture size
60mm
Focal length
360mm
Focal ratio
f/6
Objective lens
Triplet air-spaced APO (including two ED glasses)
Distance from the 2" adapter to the focal plane with the focuser barrel retracted
150mm
Total length（ without accessories）
318.5mm
Total Weight (Including tube ring&dovetail plate）
2.8kg
Rear-end adapter type
2” adapter, 1.25” adapter
V80 mode OTA Parameters
Aperture size
80mm
Focal length
500mm
Focal ratio
f/6.25
Objective lens
Triplet air-spaced APO (including two ED glasses)
Distance from the 2" adapter to the focal plane with the focuser barrel retracted
139.7mm
Total length（ without accessories）
411mm（with the dew shield contracted）479mm（with the dew shield fully stretched）
Total Weight (Including tube ring&dovetail plate）
3.4kg
Rear-end adapter type
2” adapter, 1.25” adapter
Focal length，Focal ratio Parameters
Aperture size：60mm
Focal length
Focal ratio
+V Reducer
270mm
f/4.5
+V Flattener
360mm
f/6
+V Extender
446mm
f/7.43
Aperture size：80mm
Focal length
Focal ratio
+V Reducer
384mm
f/4.8
+V Flattener
495mm
f/6.18
+V Extender
600mm
f/7.5
Accessory Parameters
Weight
Reducer：0.44kg
Flattener：0.48kg
Extender：0.46kg
Rear-end adapter
M54×0.75 ,M48×0.75(built-in 2”filter thread)
Back focus
55mm (from the M48 adapter)
