ADM Accessories MAX-HD Guider ALT/AZ Aiming Device - Heavy Duty Version
-
Robust Alternative: Offers a heavy-duty alternative to adjustable guidescope rings, providing exceptional support for guidescopes or finderscopes equipped with tube rings and dovetail bars for enhanced stability and adjustability.
-
Dual Tube Alignment: Ideal for simultaneously co-aligning two optical tubes to observe the same celestial target or for offsetting them to identify an appropriate guidestar for effective autoguiding.
-

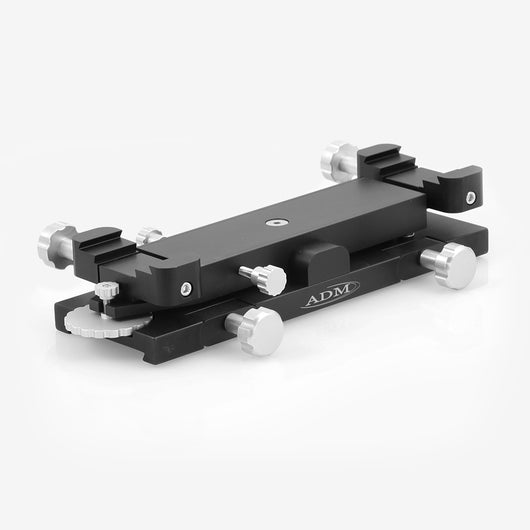

Advanced Mounting System: Features a bottom "D" Series dovetail saddle for secure sliding and clamping onto any "D" Series dovetail bar, plus a top "D/V" Series dovetail clamp that accepts both "D" and "V" Series bars.
-
High Capacity Design: Capable of securely holding any guidescope or finderscope weighing up to 20 lbs.
-

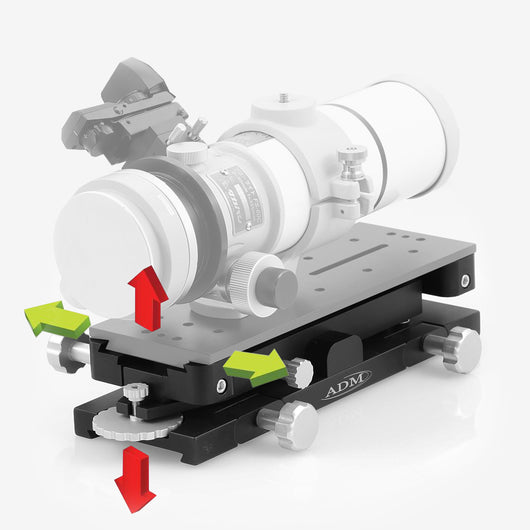

Precision Adjustments: Provides 10 degrees of azimuth adjustment and 5 degrees of altitude adjustment for precise targeting and alignment.
-
Dimensions and Weight: Measures 12″ in length and adds approximately 2″ in height from the top of the dovetail on the OTA to the bottom dovetail on the guidescope/finderscope; overall weight is 4 lbs 8 oz.
-
Superior Build Quality: CNC machined from aircraft-grade 6061 aluminum, ensuring durability and precision.
-
Durable Finish: Constructed from anodized aluminum and stainless steel, this device not only boasts a sleek, attractive finish but also promises longevity and resistance to the elements.
