Advanced Dual-Band Filter Technology: The Altair Dual-Band ULTRA Sii/Oii is a cutting-edge narrowband filter with a tight 6nm FWHM Bandpass, designed for enhancing nebula imaging.
Effective Light Pollution Suppression: Incorporates Altair V2 coatings, highly effective against LED light pollution, offering deep blocking factors of OD>6 below 440nm and OD5 in the visual range.
Exceptional Transmission Rates: Demonstrates impressive transmission rates of 93% for both Oiii (6nm bandwidth) and Sii (5.5nm bandwidth), with precise tolerances of 0.5nm and 0.5%.
Ideal for Diverse Imaging Conditions: Perfect for imaging in moonlight, light pollution, or dark-sky conditions, providing total channel control in narrowband-style imaging.
Certified Individual Testing: Each filter undergoes individual spectrographic testing with 0.1nm true resolution, ensuring authenticity and superior performance, unlike generic test reports from other brands.
DualBand Ha/Oiii Emission Suppression: Transmits only Sii and Oiii light from emission nebulae, effectively suppressing unwanted light, ideal for narrowband Bi-Colour imaging.
Versatile Imaging Capabilities: Capture key emission nebulae bands simultaneously while suppressing extraneous light. Compatible with color CMOS cameras for varied imaging scenarios.
Increased Data Acquisition: Acquire more data efficiently, expanding your imaging window, even in challenging conditions like summer nights.
Complementary Use with Ha Oiii Filter: Combine with Ha Oiii version for doubled Oiii data capture per session, enabling true SHO Hubble style imaging with color cameras.
Steep Bandpass for Maximum Contrast: Features a steep 6nm bandpass for Oiii and 5.5nm for Sii, enhancing contrast in extreme light pollution
Optimized for Various Telescopes: Performs best at F4.8 or slower focal ratios, but can be used up to F3.6 with minimal contrast impact.
Standard Filter Thread and Specifications: Fits standard M48x0.75mm thread, compatible with various holders and wheels. Specifications include two bands, Oiii and Sii, with 93% transmission and OD5 blocking.
Frequently Asked Questions: Explains the functionality of OSC Narrowband filters, compatibility with different cameras, and the concept of DualBand filtering.
Availability Note: High demand may lead to temporary suspension of orders to maintain production quality. Specifications and prices are subject to change without notice.

Safety Reminder: Always ensure proper solar viewing safety measures when using filters for solar imaging.

Specifications

HA/Oiii

*1st band, Oiii CWL 500.7nm FWHM 6nm ~0.5nm tolerance , T% 93% 0.5% Tolerance.
*2nd band, Ha CWL 656.28nm FWHM 5.5nm ~0.5nm tolerance, T% 93% 0.5% Tolerance.
OD4/5 Blocking (0.01%~0.001%) over the majority of unwanted wavelengths
1.85mm thick optical glass with 30 arc sec parallelism. Parfocal with other Altair filters.
Si02 "hard" overcoat with UVIR Block and Anti-Reflection Coating for durability.

Oiii/Sii

*1st band, Oiii CWL 500.7nm FWHM 6nm ~0.5nm tolerance , T% 93% 0.5% Tolerance.
*2nd band, Sii CWL 671.6nm FWHM 5.5nm ~0.5nm tolerance, T% 93% 0.5% Tolerance.
OD5 Blocking (0.001%) over unwanted visual wavelengths
1.85mm thick optical glass with 30 arc sec parallelism. Parfocal with other Altair filters.
Si02 "hard" overcoat with UVIR Block and Anti-Reflection Coating for durability.

Country

Country

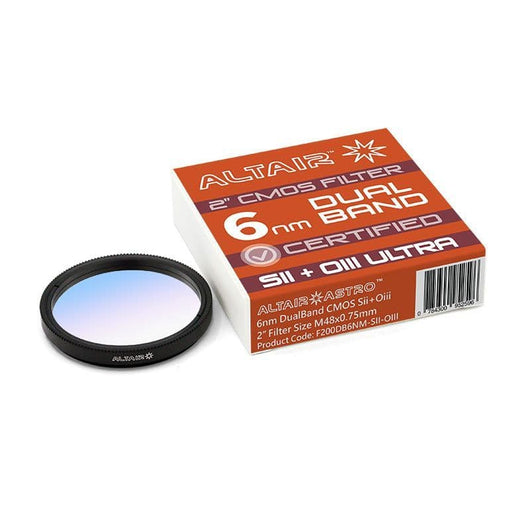

Altair 1.25 DualBand Sii/Oiii 6nm Filters
