Discover seamless stargazing with the Altair Starwave Mini AZ Mount. This compact and versatile telescope mount offers easy-to-use functionality for astronomy enthusiasts. Explore the night sky effortlessly and capture breathtaking celestial views. Elevate your stargazing experience with Altair's precision engineering and user-friendly design.

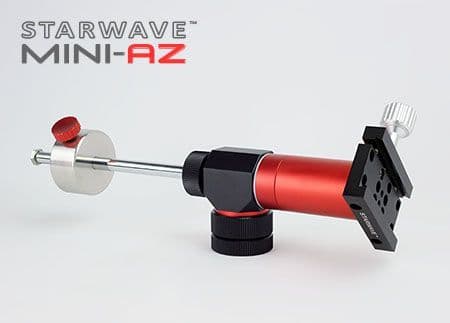

The Starwave Mini-AZ Mount - take your telescope anywhere!
Quick to set up and intiutive to use with easy tension controls on both axes.
Perfect for visual astronomy with a small refractor. No power needed, no polar aligment needed (like for Equatorial Mounts), just point and go!
Fits any camera tripod with standard 3/8 thread (if 1/4, just use a 3/8 to 1/4 converter)
Has optional extension arm, stainless steel counterweight, and counterweight shaft.
Packs down tiny for travel.
Optional L-Bracket for Photo lens or spotting scopes with 1/4" thread fitting.
Designed for compact refractors like the Starwave 70ED and 80ED, spotters or even a camera and large telephoto lens.
Vixen format clamp - spring loaded with captive clamp.
80mm removable side-arm-extension to allow longer optical tubes to clear the tripod legs.
Specifications
Total weight 1.5kg (Head, extension arm & clamp)
Stainless Steel Counterweight 1kg
Counterweight shaft 20cm
Head height 95mm
Head width 100mm
Head depth 55mm
Extension arm length 80mm.
Distance of Vixen-Style clamp from centre pivot-point with extension in place = 155mm
Distance of Vixen-Style clamp from centre pivot-point without extension = 60mm
What's in the box?
Mount head with Vixen-format clamp.
1kg Stainless Steel Counterweight & shaft.
80mm side arm extension.
