Features

Powerful large binoculars with a 70 mm objective diameter and 400 mm focal length
Observe the moon, the planets and bright deep sky objects in the night sky as well as terrestrial targets
Extremely robust binoculars, sealed and filled with nitrogen
Convenient 45-degree view and individual focusing
Carrying handle makes it easier to transport the binocular and ensures a secure hold during tripod assembly

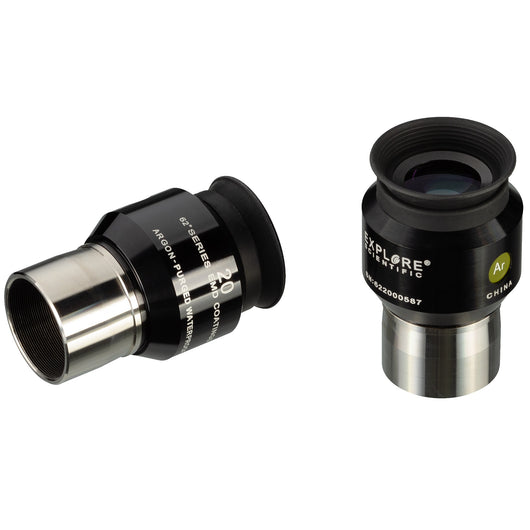

Includes two premium waterproof Explore Scientific 62 degree 20mm LER eyepieces
Eyepiece holder 1.25 inch / 31.7mm, interchangeable eyepieces
Extendable dew caps minimize condensation on the lenses
Tripod connection: 2 x 1/4 inch and 1 x 3/8 inch photo thread
Optional accessories: Item 01-14300 U-mount with field tripod

Description

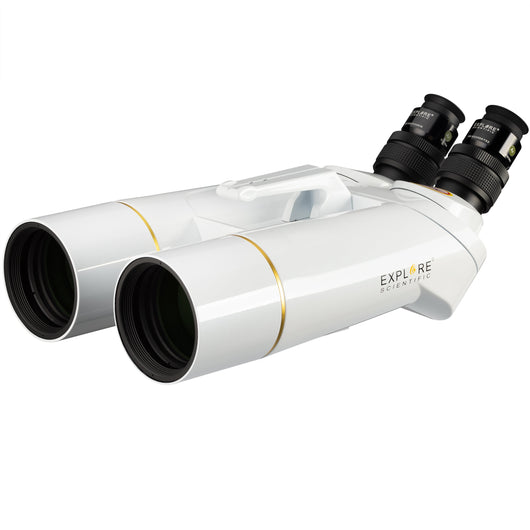

Giant binocular for observing the starry sky, nature and landscape.
Observe the beauty of the starry sky at night and distant objects in nature during the day. Globular star clusters, glowing gas nebulae, the moon with its craters and even planets can be observed wonderfully on a clear night. But also all other distant things in nature and landscape, even ships and airplanes can be seen in detail. With the all-round binoculars of the EXPLORE SCIENTIFIC BT series, you can get up very close. Thanks to the large, light-gathering lenses and the professional coatings on all lens surfaces, these binoculars produce bright and brilliant images even at night and at twilight, providing a special viewing pleasure. The comfortable 45 degree viewing angle allows fatigue-free use even when the binoculars are tilted strongly.

A large binocular can also be called a double refractor telescope
One complete lens telescope with the full light gathering power is available per eye. Experience a whole new dimension of observing. Objects are reproduced almost vividly in these binoculars and observing with both eyes is basically very relaxed. Last but not least, this comfortable way of observation increases the recognition of the finest details and effectively prevents rapid eye fatigue.

Extremely robust binoculars with magnesium housing, sealed and filled with nitrogen
The BT series binoculars are designed for tough outdoor use. The IPX6 sealed and nitrogen-filled design effectively prevents fogging of the internal optics even under difficult weather conditions. The very light magnesium housing saves weight and makes it easy to handle. Two EXPLORE SCIENTIFIC 20mm eyepieces of the 62 degree LER series already included. EXPLORE SCIENTIFIC is an established manufacturer of extremely high-quality eyepieces in the astronomy scene. An optical system is only as good as its weakest component. Therefore we have decided to deliver these giant binoculars with a pair of quality eyepieces of the 62 degree LER series. With an apparent field of view of 62 degrees and a focal length of 20mm, the BT-70 binoculars produce a 20x magnification. Thus these wide angle eyepieces offer a very good overview (field of view 3.1 degree) at moderate magnification. The large interpupillary distance of these LER (long eye relief) eyepieces of 15mm and soft silicone eyecups, which can be turned inside out, also guarantee a comfortable and relaxed view. For astronomy, a flat and sharp image field is advantageous and offers a particularly impressive viewing experience even during the day. Due to the waterproof design and the argon filling, these eyepieces are absolutely durable and easy to clean.

Interchangeable eyepieces with 1.25 inch / 31.7mm plug-in diameter
Adjust the magnification and field of view to your individual needs and choose from a wide range of available eyepieces. All eyepiece types with a plug-in diameter of 1.25 inch / 31.7mm can be used with the binoculars of the BT series. Especially recommended are EXPLORE SCIENTIFIC eyepieces of the 62 and 82 degree series with focal lengths from 8 to 26mm (see item No. 02188xx and 02196xx). The magnification can be varied from 15x to 50x (focal length binoculars : focal length eyepiece = magnification). The eyepieces are held in the binoculars by a precise brass compression ring clamp and guarantee a tilt free position.

Use of color and nebula filters for astronomical observations
Increase the contrast and visibility of objects and details by screwing the corresponding filters directly into the thread of the eyepiece sleeves. The use of color and nebula filters must of course always be done in pairs. Suitable are all EXPLORE SCIENTIFIC screw filters with 1.25inch / 31.7mm diameter (see item No. 03102xx)

Comfortable 45 degree view and helical single focus
The 45-degree viewing angle allows a relaxed observation position even when the binoculars are tilted strongly. Also the individual interpupillary distance can be adjusted in a range from 54 to 76mm. With the fine helical individual focusing, precise focusing is achieved effortlessly. Extendable dew caps The integrated dew caps can be removed in high humidity and cold conditions. This avoids fogging of the outer objective lenses and effectively shields additional control light coming in from the side.

Integrated carrying handle
A metal carrying handle located at the center of gravity facilitates transport and ensures a secure hold during tripod assembly.

Suitable tripods and tripod connection

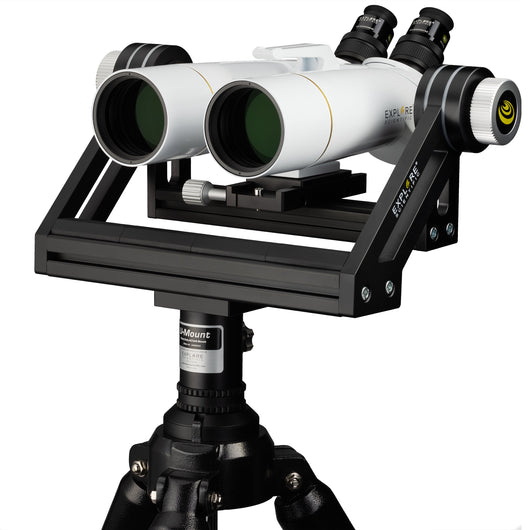

When using these large binoculars, a sturdy photo tripod with an appropriate load capacity is highly recommended. The connection is made via two 1/4 inch or one 3/8 inch threaded holes (standard photo tripod thread) in the tripod adapter of the binoculars. The ideal solution is to use the optional availlable EXPLORE SCIENTIFIC U-Mount with field tripod (item No. 01-14300). This is specially designed for the large binoculars of the BT series and carries these devices absolutely safely. The excellent mechanism with adjustable friction in both axes allows easy moving and tracking. The binocular position is kept stable depending on the adjusted friction intensity. Vibrations are reduced to a minimum by the massive construction of the U-Mount and the large stainless steel tripod. Even at high magnification there are no vibrations and the finest details can be observed.

Specs

Item Number 01-14200

Optical design Achromatic refractor Porro

Mirror / lens diameter 70 mm

Focal length 400 mm

Focal ratio 5.7

Apparent Facial field 62 degrees

Type of remuneration Enhanced Multilayer Desposition (EMD)

Exit pupil min. 3.5 mm

Field of view 3.1 degrees

Waterproof Yes

Water resistance protection level IPX6

Exit pupil distance 15 mm

Total length 370 mm

Total width 213 mm

Total height 122 mm

Total net weight 3400 g

Housing material Magnesium

Warranty

Explore Scientific offers free collimation service for the Giant Binoculars for the lifetime of the product. The customer is responsible for shipping both ways. Explore Scientific Giant Binoculars come with a 1-year warranty when registered within 60 days of purchase.

The Explore Alliance membership program offers Extended Care for all Explore Scientific products with a paid membership. For more information on the Explore Alliance Click Here

Manual

Download Manual Here

Recommended Accessories: (2) Astrozap 3” Dew Heater Strap
