The Advanced VX (AVX) sets a benchmark for mid-level telescopes, incorporating features from Celestron's advanced German equatorial mounts at a remarkably affordable price. Designed for astroimagers and visual observers seeking portability without sacrificing performance, the Advanced VX 6” Schmidt Cassegrain telescope outshines reflectors or refractors. Its 6” Schmidt-Cassegrain optical tube provides 40% more light gathering than a 5” telescope and eliminates chromatic aberration, making it ideal for entry-level astroimaging. The Advanced VX mount integrates Celestron’s cutting-edge technologies like All-Star Polar Alignment, PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).

For experienced imagers, the portable Advanced VX mount offers the convenience of a larger observatory mount at dark sky sites. Newcomers to imaging will find the Advanced VX a reliable starting point, meeting their needs for years to come.

The Advanced VX is Celestron’s smallest German equatorial mount, featuring automatic GoTo capability for tracking celestial objects. Equipped with ports for a hand control, autoguider, and 2 AUX ports for optional accessories, the mount's NexStar+ hand control provides easy access to all functions. Its automatic slewing and user-friendly menu descriptions allow astronomers of any skill level to master the mount quickly. The mount boasts a robust tripod with 2” diameter steel legs, ensuring stability.

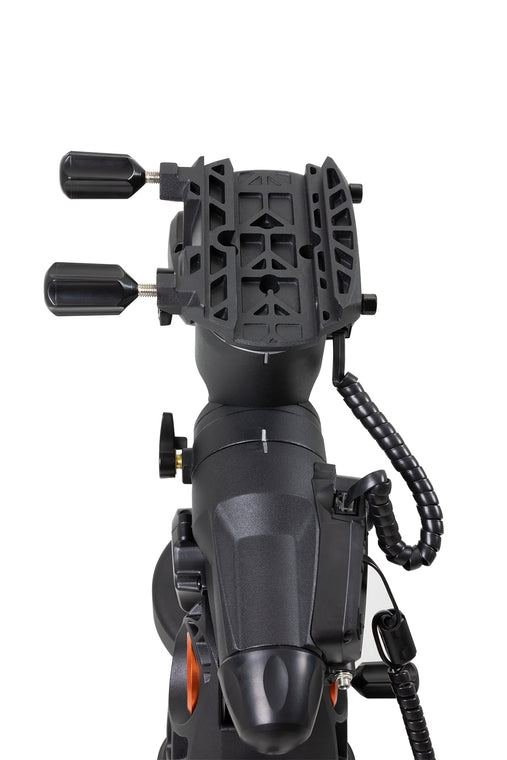

With a payload capacity of 30 lb, the Advanced VX provides a sturdy platform for various optical tubes and optional accessories. The dual saddle plate, introduced in early 2019, accommodates both CG-5 and CGE-style dovetails. Transitioning between the two saddle plates is straightforward, allowing the use of an Advanced VX mount with virtually any optical tube within its weight limit. It is compatible with Vixen format dovetails 100mm or longer, but not compatible with Losmandy D format plates, regardless of the manufacturer.

Specifications

MOUNT INFO:
Optical Design:	Schmidt-Cassegrain
Aperture:	150mm (6")
Focal Length:	1500mm (59")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	25mm (.98")
Magnification of Eyepiece 1:	60x
Finderscope:	6x30
Star Diagonal:	1.25" Star Diagonal
Optical Tube:	Aluminum
Highest Useful Magnification:	354x
Lowest Useful Magnification:	21x
Limiting Stellar Magnitude:	13.4
Resolution (Rayleigh):	.93 arc seconds
Resolution (Dawes):	.77 arc seconds
Light Gathering Power (Compared to human eye):	459x
Secondary Mirror Obstruction:	56mm (2.2")
Secondary Mirror Obstruction by Diameter:	37%
Secondary Mirror Obstruction by Area:	14%
Optical Coatings:	StarBright XLT
Optical Tube Length:	406mm (16")
Optical Tube Diameter:	184.15mm (7.25")
Optical Tube Weight:	10 lbs (4.54 kg)
Dovetail:	CG-5 Dovetail bar
Mount Type:	Computerized Equatorial
Instrument load capacity:	30 lbs (13.6 kg)
Height adjustment range (includes mount and tripod):	1118mm - 1626mm (44" – 64")
Tripod Leg Diameter:	50.8mm (2") Stainless Steel
Latitude adjustment range:	7° - 77°
Mount Head Weight:	17 lbs (7.71 kg)
Accessory Tray:	Yes
Tripod Weight:	18 lbs (8.16 kg)
Weight of Counterweights:	1 x 12 lbs
Slew Speeds:	9 slew speeds - max speed 4°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	EQ North and EQ South
GPS:	N/A
Dovetail Compatibility:	Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports:	3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories
Autoguide Port:	Yes
USB Port:	Yes, input on Hand Control
Power Requirements:	12V DC 3.5A (tip positive)
Motor Drive:	DC servo motors
Alignment Procedures:	2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction:	Yes
Computerized Hand Control:	2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database:	40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software:	Celestron Starry Night Special Edition Software and SkyPortal App
Total Kit Weight:	57 lbs (25.85 kg)
Included Items:	Advanced VX Equatorial Head and tripod Accessory Tray 1 x 12 lbs counterweight NexStar+ Hand Control DC Power Cable (item# 18769) Hand Control Holster
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Software and Documentation

MANUALS:
Advanced VX Manual
NexStar Plus Hand Control Manual
Schmidt-Cassegrain Optics Manual
SOFTWARE & FIRMWARE:
CPWI Software
Celestron Firmware Manager (CFM) Software
NexRemote Telescope Control Software
Periodic Error Correction Tool (PECTool)
DRAWINGS:
Advanced VX 6" Schmidt-Cassegrain Dimensional Drawing
6" Schmidt-Cassegrain Optical Tube Assembly Dimensional Drawing
OTHER PRODUCT FILES:
SCT & EdgeHD Collimation Guide
How to Align a Red Dot Finder to Your Telescope Video
Solar Safety Warning
What are the Sizes of Collimation Screws
Celestron NexStar+ Hand Control Troubleshooting Guide
