Celestron CB1000CF - Compound Binocular Microscope
The Celestron Labs CB1000CF Binocular Compound Microscope is a cost-effective laboratory-grade microscope that offers all the essential features required for various applications. With a 10x eyepiece and four objective lenses...

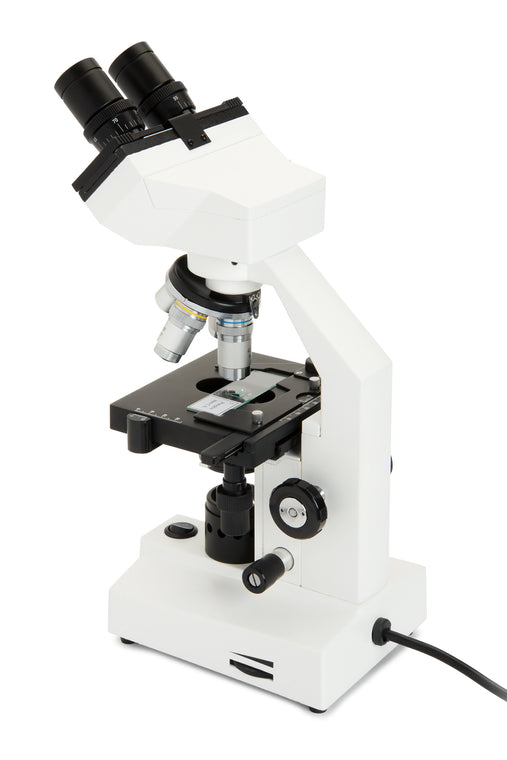

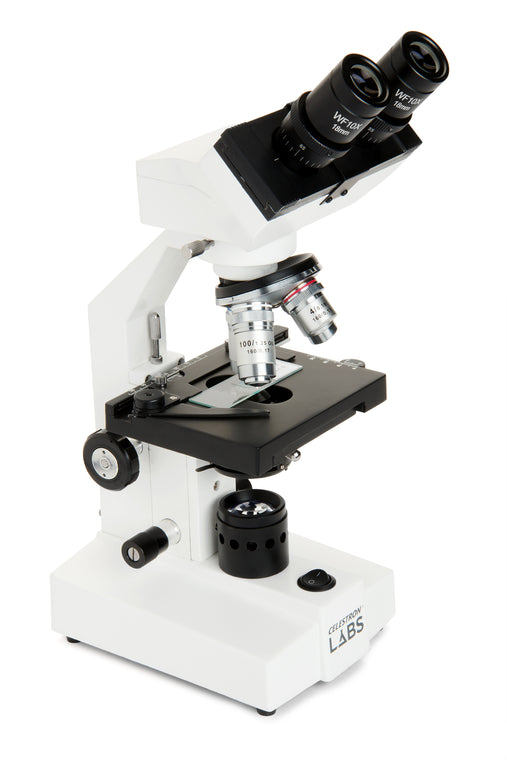

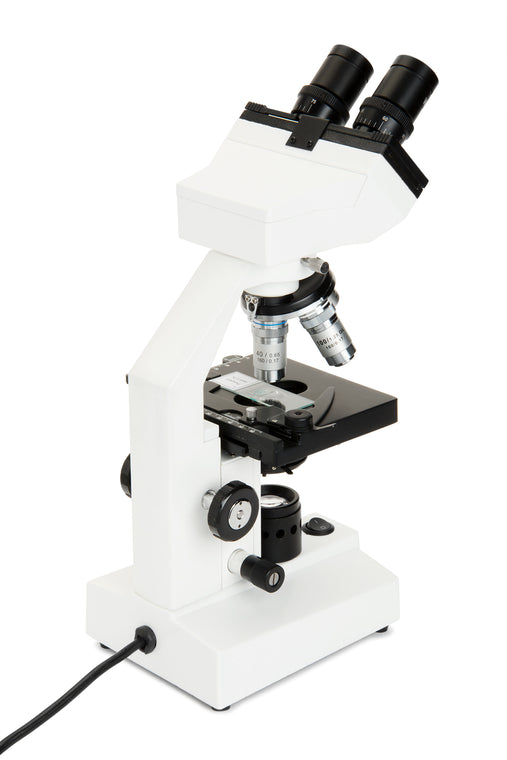

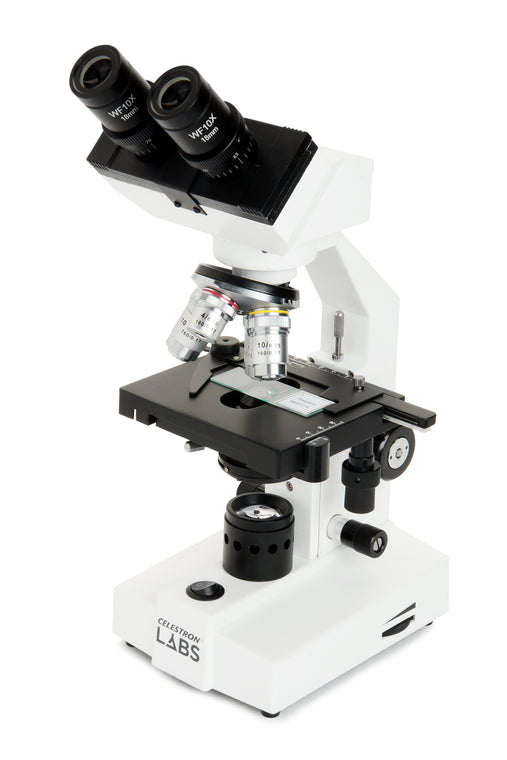

The Celestron Labs CB1000CF Binocular Compound Microscope is a cost-effective laboratory-grade microscope that offers all the essential features required for various applications. With a 10x eyepiece and four objective lenses (4x, 10x, 40x, and 100x), it provides magnifications ranging from 40x to an impressive 1,000x.

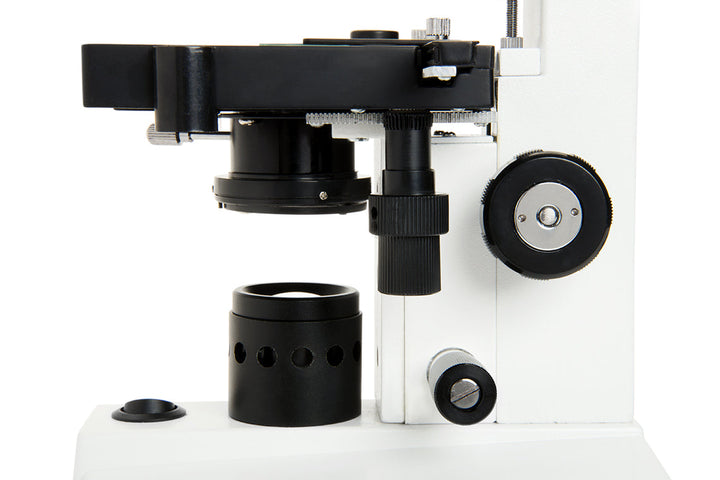

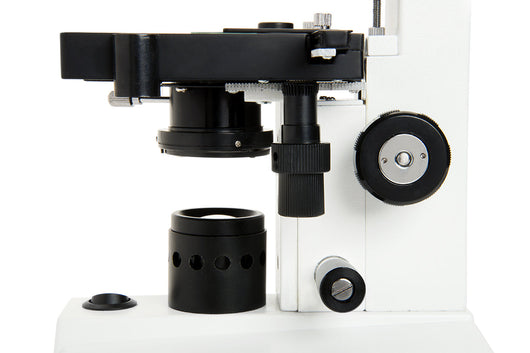

One of its standout features is the adjustable lower illuminator, which ensures bright and highly detailed views with accurate color representation, especially when examining translucent specimens. The LED illuminator remains cool to the touch even during extended observation sessions. Additionally, the microscope boasts an Abbe condenser with an iris diaphragm that allows you to fine-tune the lower illumination for enhanced viewing. These qualities make the CB1000CF a versatile tool suitable for laboratories, educational institutions, fieldwork, and more.

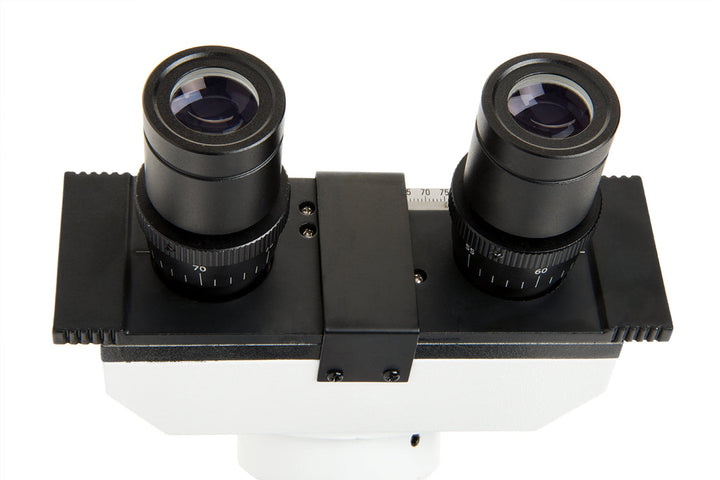

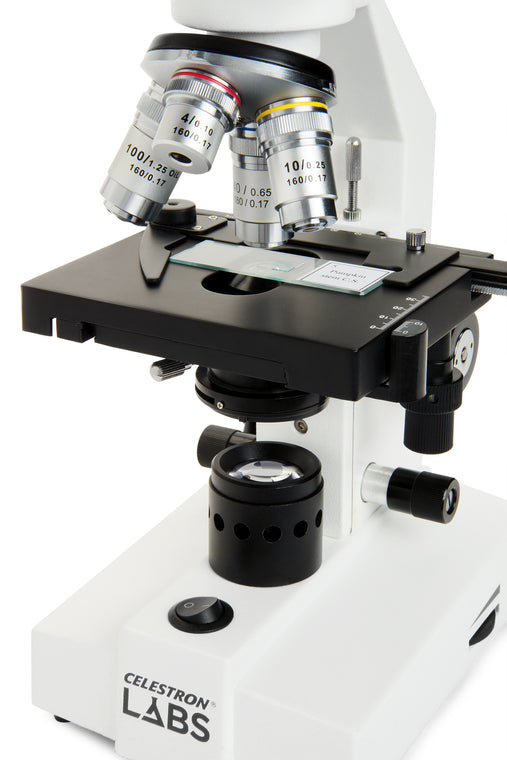

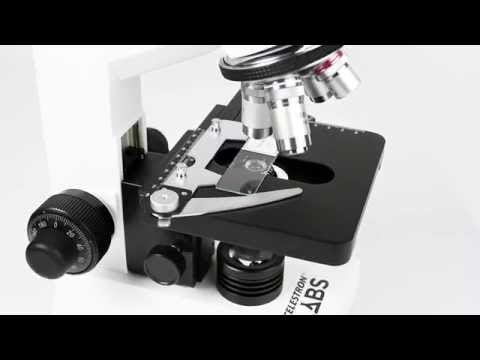

Constructed with durability in mind, this microscope features an all-metal build. Its coaxial coarse and fine focus knobs enable precise and detailed examination of specimen slides. The mechanical stage is fully adjustable, facilitating easy centering of your specimen slides. To get you started on your microscopy journey, the microscope comes with a set of 10 prepared slides, ensuring engaging discoveries right from the beginning. The swiveling binocular head can be rotated for comfortable viewing or shared with others seated across the table. Additionally, the microscope includes three colored filters to enhance the quality of your magnified images, and it comes with a universal power cord for international usage.
Specifications
| GENERAL | |
|---|---|
| Type of Microscope: | Compound |
| Head: | Binocular with 360° rotatable 45° incline and interpipilary distance adjustability |
| Eyepiece(s) Magnification: | (2) 10x (with pointer) |
| Eyepiece(s) Diameter: | 23.2mm (.91") |
| Nosepiece: | quadruple, rotational |
| Objective(s) Type: | Refractive |
| Objective(s) Standard: | DIN |
| Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
| Objective(s) Thread: | 4/5" x 1/36" |
| Focus Type(s): | Rack and pinion, coarse and fine focus (individual dials) |
| Focus Travel (per rotation): | 0.1 mm (.004") |
| Magnification Range: | 40x to 1000x (40x, 100x, 400x, 1000x) |
| Illumination Type: | LED |
| Illumination Position(s): | Lower |
| Illumination Adjustability Mechanism: | Dial |
| Power Source: | AC Adapter- 100-240V |
| Battery Option: | None |
| Stage: | Mechanical stage, 110mm x 120mm (4.3" x 4.7") |
| Condenser Type: | Abbe with Iris adjustment |
| Condenser N.A.: | 1.25 |
| Stage Diaphragm: | N/A |

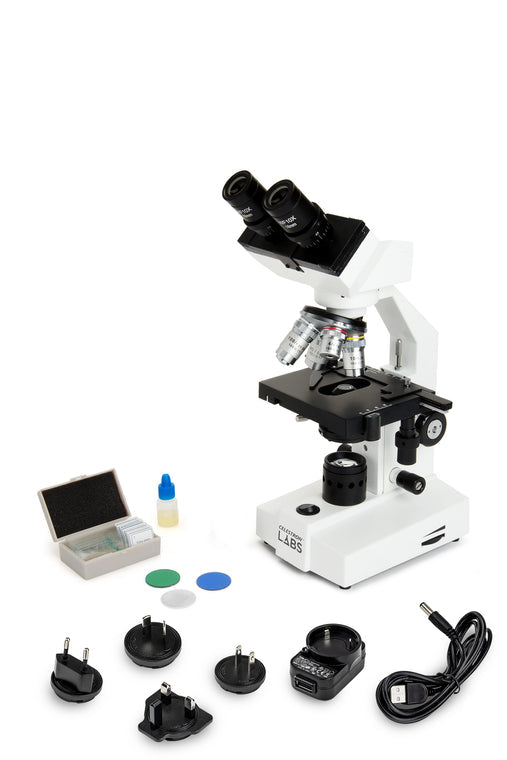

| Included Items: | Universal AC Adapter- 100-240V; plugs A, C, G, and I Power adapter cord 3 color filters (blue, white opaque, green) Immersion oil (Type B High-viscosity Cedar wood oil) 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s. |
| Solar Warning | |
| California Residents |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documentation
| MANUALS: |
|---|
| Celestron Labs CB1000CF Microscope Manual |
| Celestron Labs CB1000CF Microscope Quick Setup Guide |
| OTHER PRODUCT FILES: |
| Microscope basics |
