Celestron CB2000C - Compound Binocular Microscope
The Celestron Labs CB2000C Binocular Compound Microscope is equipped with an array of advanced features to meet your microscopy needs. It comes with both 10x and 20x eyepieces and includes...

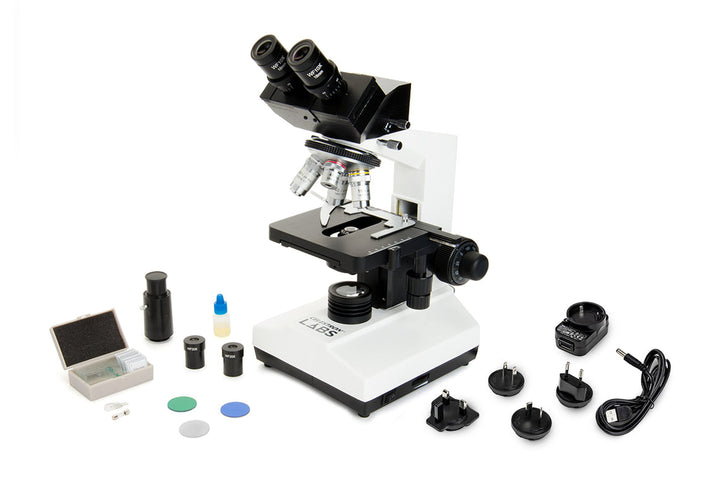

The Celestron Labs CB2000C Binocular Compound Microscope is equipped with an array of advanced features to meet your microscopy needs. It comes with both 10x and 20x eyepieces and includes four objective lenses (4x, 10x, 40x, and 100x), offering an extensive magnification range from 40x to an impressive 2000x. Additionally, the microscope is accompanied by three colored filters to enhance the quality of your magnified images.
This model features a trinocular eyepiece tube, which allows for the attachment of a camera or the option for secondary eyepiece viewing. With the inclusion of ten prepared slides, you'll embark on your microscopy journey with engaging discoveries right out of the box.
Achieving perfect illumination is effortless with the NA 1.25 Abbe condenser and iris diaphragm, which enable precise control and concentration of light on your specimens. You have the flexibility to adjust brightness, contrast, depth of field, and illumination uniformity by modifying the distance between the Abbe condenser and objective or by regulating the condenser's iris diaphragm to control the diameter of the light beam.

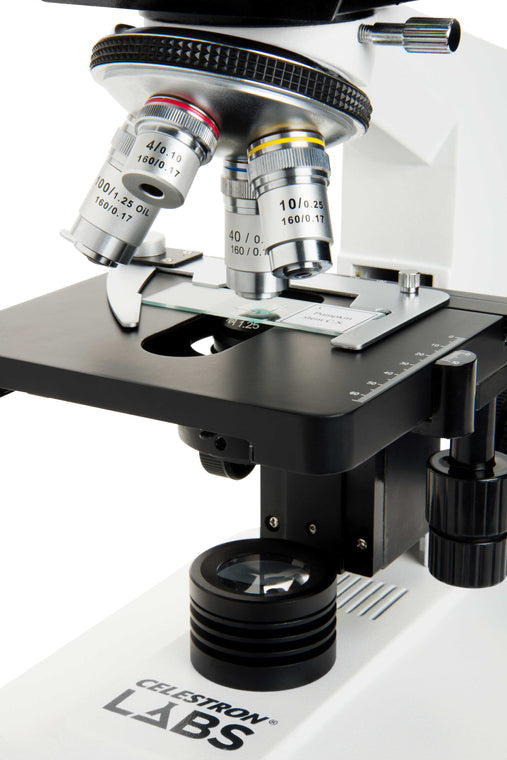

For convenience, the fully mechanical stage features knobs that control both axes, allowing you to easily center your slides. The microscope's all-metal construction ensures its durability, providing reliable performance for years to come. Furthermore, the trinocular adapter enables the attachment of a camera for capturing images of your specimens, expanding its utility for documentation and analysis.
Specifications
| GENERAL | |||||
|---|---|---|---|---|---|
| Type of Microscope: | Compound Trinocular | ||||
| Head: | Trinocular with 360° rotatable 45° incline and interpipilary distance adjustability | ||||
| Eyepiece(s) Magnification: | (1) 10x and (1) 20x (10x with pointer) | ||||
| Eyepiece(s) Diameter: | 23.2mm (.91") | ||||
| Nosepiece: | quadruple, rotational | ||||
| Objective(s) Type: | Refractive | ||||
| Objective(s) Standard: | DIN | ||||
| Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic | ||||
| Objective(s) Thread: | 4/5" x 1/36" | ||||
| Focus Type(s): | Coaxial coarse and fine focus (individual dials) | ||||
| Focus Travel (per rotation): | 0.2mm (.0078") | ||||
| Magnification Range: | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) | ||||
| Illumination Type: | LED | ||||
| Illumination Position(s): | Lower | ||||
| Illumination Adjustability Mechanism: | Dial | ||||
| Power Source: | Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations | ||||
| Battery Option: | N/A | ||||
| Stage: | Mechanical stage, 140mm x 140mm (5.5" x 5.5") | ||||
| Condenser Type: | Abbe with Iris adjustment | ||||
| Condenser N.A.: | 1.25 | ||||
| Stage Diaphragm: |
N/A |
||||
|
Trinocular adapter tube |
||||
|
|
Documentation
| MANUALS: |
|---|
| Celestron Labs CB2000C Manual |
| OTHER PRODUCT FILES: |
| Microscope basics |
