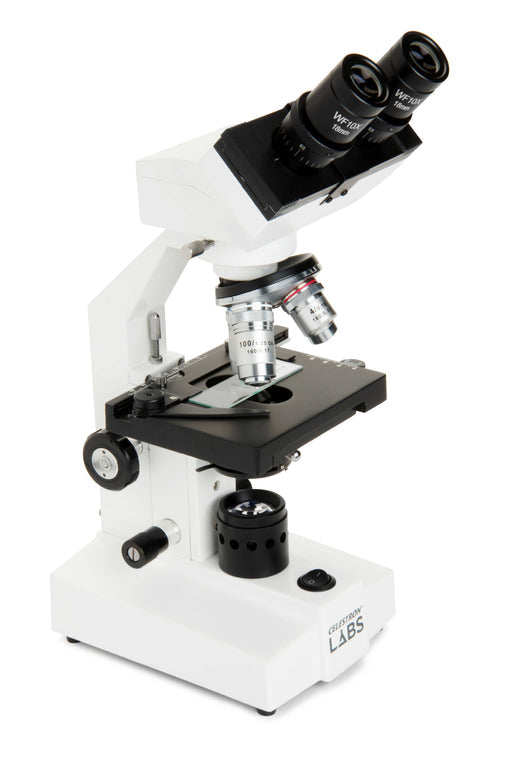

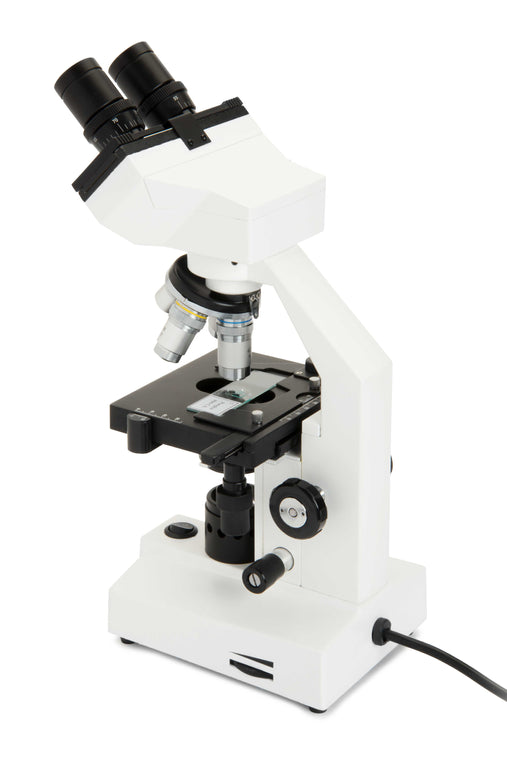

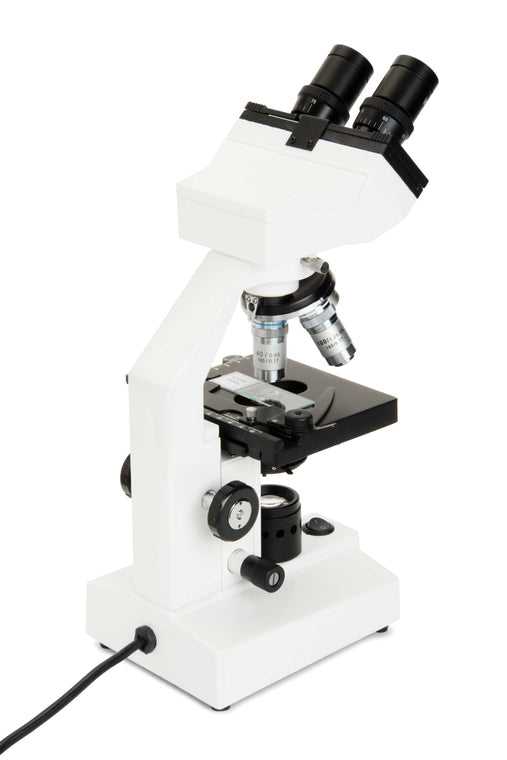

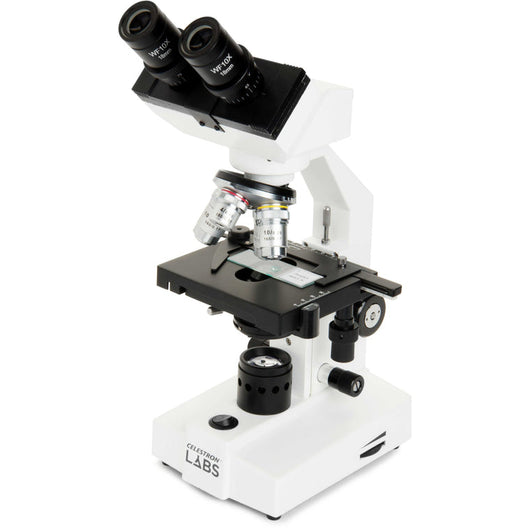

Celestron CB2000CF - Compound Binocular Microscope
The Celestron Labs CB2000CF Binocular Compound Microscope offers a range of advanced features at a budget-friendly price point. It includes 10x and 20x eyepieces along with four objective lenses (4x,...
The Celestron Labs CB2000CF Binocular Compound Microscope offers a range of advanced features at a budget-friendly price point. It includes 10x and 20x eyepieces along with four objective lenses (4x, 10x, 40x, and 100x), providing magnification capabilities spanning from 40x to 2000x.
Constructed with durability in mind, this microscope boasts an all-metal build for robustness and stability. Its mechanical stage is fully adjustable, facilitating the precise centering of specimen slides. Additionally, it comes equipped with three colored filters to enhance the quality of magnified images. For immediate exploration, the package includes ten prepared slides. The microscope features an N 1.25 Abbe condenser with an iris diaphragm, enabling concentration and focus of lower illumination, thereby enhancing viewing quality. These qualities make the CB2000CF an excellent tool for a wide range of applications, including laboratories, educational institutions, scientific research, and more.
Specifications
| GENERAL | |
|---|---|
| Type of Microscope: | Compound Binocular |

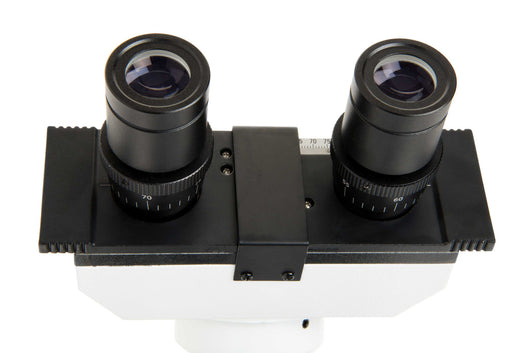

| Head: | Binocular with 360° rotatable 45° incline and interpipilary distance adjustability |
| Eyepiece(s) Magnification: | (1) 10x and (1) 20x (10x with pointer) |
| Eyepiece(s) Diameter: | 23.2mm (.91") |
| Nosepiece: | quadruple, rotational |
| Objective(s) Type: | Refractive |
| Objective(s) Standard: | DIN |

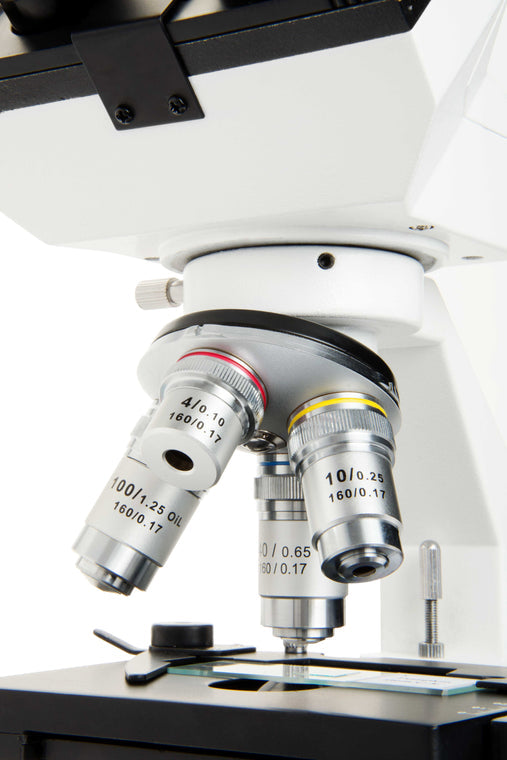

| Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
| Objective(s) Thread: | 4/5" x 1/36" |
| Focus Type(s): | Rack and pinion, coarse and fine focus (individual dials) |
| Focus Travel (per rotation): | 0.1mm (.004") |
| Magnification Range: | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
| Illumination Type: | LED |
| Illumination Position(s): | Lower |
| Illumination Adjustability Mechanism: | Dial |
| Power Source: | Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations |
| Battery Option: | N/A |

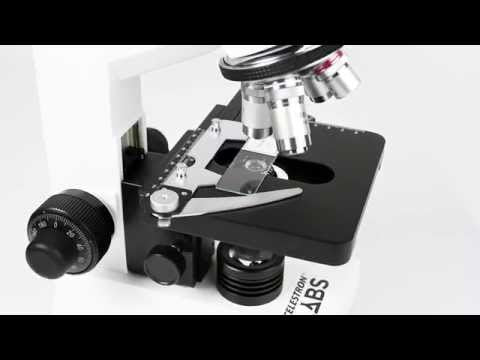

| Stage: | Mechanical stage, 110mm x 120mm (4.3" x 4.7") |
| Condenser Type: | Abbe with Iris adjustment |
| Condenser N.A.: | 1.25 |
| Stage Diaphragm: | N/A |

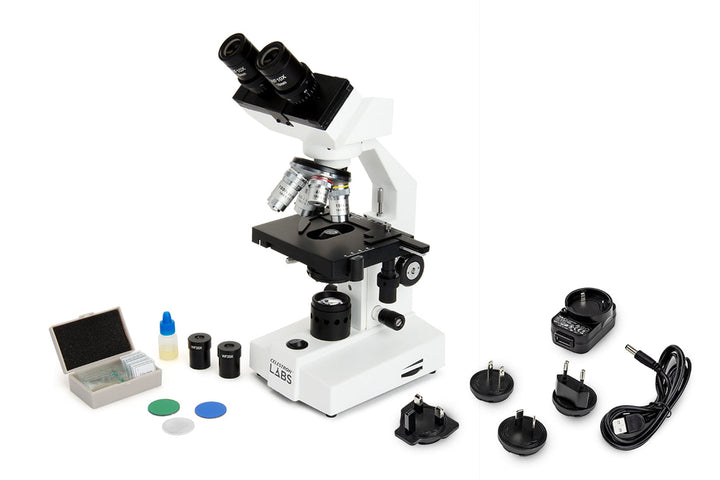

| Included Items: | 3 color filters (blue, white opaque, green) Immersion oil ,br/> 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s. |
| Solar Warning | |
| California Residents | View Proposition 65 Warning |
Documentation
In the event that a particular specimen becomes unavailable, a substitution may be made to any one listed below.
Specimen Mounted Slides included:
i. Wall of stomach, sec.
ii. Stratified flat epithelium, sec.
iii. Testis, sec.
iv. Aspergillus, w.m.
v. Rhizopus nigricans, w.m.
vi. Small intestine, c.s.
vii. Lily anther, c.s.
viii. Hydrilla verticallata, w.m.
ix. Spirogyra, w.m.
x. Lily ovary, c.s.
| MANUALS: |
|---|
| Celestron Labs CB2000CF Manual |
| OTHER PRODUCT FILES: |
| Microscope basics |
