Celestron CGX 1100 SCT

$5,299.00

 Explore the cosmos with the Celestron CGX Equatorial 1100 Schmidt-Cassegrain Telescope. This advanced system features an 11" Schmidt-Cassegrain optical tube assembly, crafted from durable aluminum and enhanced with Celestron's superior StarBright...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
SKU: 12052
Availability: In Stock Pre order Out of stock
Categories: Celestron Celestron
Tags: 11 CGX SCT
Description

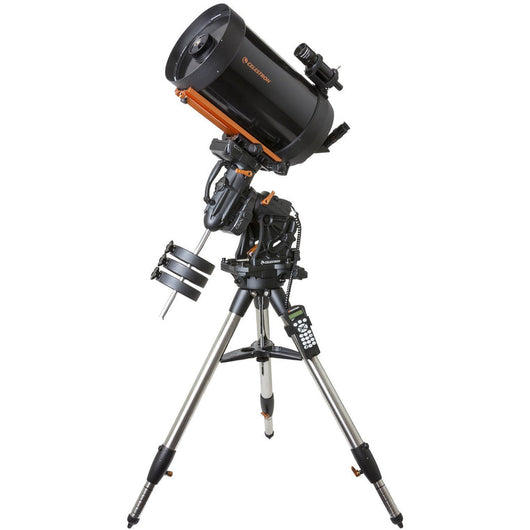

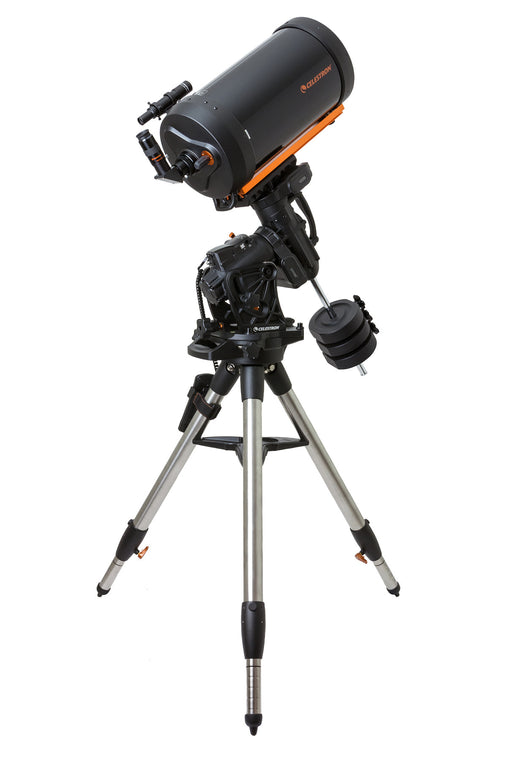

 Explore the cosmos with the Celestron CGX Equatorial 1100 Schmidt-Cassegrain Telescope. This advanced system features an 11" Schmidt-Cassegrain optical tube assembly, crafted from durable aluminum and enhanced with Celestron's superior StarBright XLT coatings. With a focal length of 2800mm (f/10) and a 40mm eyepiece included, offering 70x magnification, this telescope brings the universe closer to you.

The visual back is compatible with 1.25" accessories, expanding your viewing options. A 9x50 finderscope assists in precisely locating celestial objects, while the star diagonal ensures a comfortable viewing experience, especially for high-sky observations. It includes a dovetail rail, compatible with the CGE mount, integrating seamlessly into your setup.

The CGX 1100 Schmidt-Cassegrain, with its optical tube assembly weighing just 27.5 lb, combines portability with extraordinary light-gathering power — 89% more than an 8" telescope and over 40% more than the 9.25" models.

The CGX Mount, a product of Celestron’s extensive experience in German Equatorial mounts, is designed to be the solid foundation for telescopes ranging from 6 to 11 inches in aperture. This mount represents the evolution of backyard telescope technology, catering to both astro-imagers and automated planetarium setups.

Celestron’s CGX EQ mount is the result of years of advancement in design and engineering, focusing on stability, precision, and ease of use. Its low-profile EQ head ensures a compact and stable setup. The mount boasts an improved drive system, is friendly for remote operation with home and limit optical sensors, and offers straightforward polar alignment adjustments. Enhanced cable management and overall mechanical and ergonomic improvements make the CGX mount sturdier, easier to handle, and more convenient to transport.

This mount is Celestron’s commitment to providing a versatile equatorial backbone, capable of supporting a wide array of telescopes for both visual observation and astrophotography.

Specifications

OPTICAL TUBE INFO:
Optical Design: Schmidt-Cassegrain
Aperture: 279.4mm (11")
Focal Length: 2800mm (110")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 40mm (1.57")
Magnification of Eyepiece 1: 70x
Finderscope: 9x50
Star Diagonal: 1.25" Star Diagonal
Optical Tube: Aluminum
Highest Useful Magnification: 660x
Lowest Useful Magnification: 40x
Limiting Stellar Magnitude: 14.7
Resolution (Rayleigh): 0.5 arc seconds
Resolution (Dawes): 0.42 arc seconds
Light Gathering Power (Compared to human eye): 1593x
Secondary Mirror Obstruction: 95mm (3.75")
Secondary Mirror Obstruction by Diameter: 34%
Secondary Mirror Obstruction by Area: 12%
Optical Coatings: StarBright XLT
Optical Tube Length: 610mm (24")
Optical Tube Diameter: 312.42mm (12.3")
Optical Tube Weight: 27.5 lbs (12.4 kg)
Dovetail: CGE Dovetail Bar
MOUNT INFO:
Mount Type: Computerized Equatorial
Instrument load capacity: 55 lbs (25 kg)
Height adjustment range (includes mount and tripod): 1200.15mm - 1968.5mm (47.25" - 77.5")
Tripod Leg Diameter: 50.8mm (2") Steel tripod with graduated markings on lower section
Latitude adjustment range: 3° - 65°
Mount Head Weight: 44 lbs (20 kg)
Accessory Tray: Yes
Tripod Weight: 19.2 lbs (8.7 kg)
Weight of Counterweights: 3 x 11 lbs
Slew Speeds: 9 slew speeds - max speed 4°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North and EQ South
GPS: N/A
Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports: 2 AUX Ports (Hand Control can use either AUX Port)
Autoguide Port: Yes
USB Port: Yes, input for Mount and Hand Control
Power Requirements: 12V DC, 4 amps
Motor Drive: DC servo motors
Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction: Yes
Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App
Total Kit Weight: 123.7 lbs (56.11 kg)
Included Items: CGX Equatorial HeadCGX TripodAccessory Tray3 x 11 lbs counterweightsNexStar+ Hand Control8mm Allen Wrench12V DC Power CableHand Control Holster
Solar Warning
  • Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
  • Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
  • Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Software and Documentation

MANUALS:
CGX Mount Manual
EdgeHD Optics Manual
Whitepaper EdgeHD Optics
NexStar Plus Hand Control Manual
SOFTWARE & FIRMWARE:
CPWI Software
Celestron Firmware Manager (CFM) Software
Periodic Error Correction Tool (PECTool)
DRAWINGS:
CGX 1100 SCT & EdgeHD Dimensional Drawing
OTHER PRODUCT FILES:
Adapter to Pier Info Guide
SCT & EdgeHD Collimation Guide
How to Align a Red Dot Finder to Your Telescope Video
Solar Safety Warning
What are the Sizes of Collimation Screws
Celestron NexStar+ Hand Control Troubleshooting Guide
