Celestron CGX 925 SCT

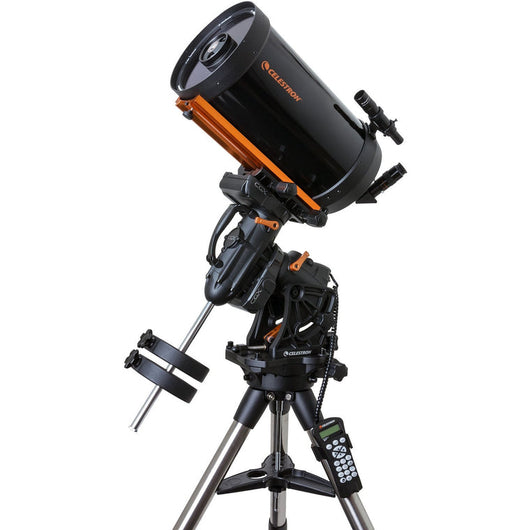

Introducing the Celestron CGX Equatorial 925 Schmidt-Cassegrain Telescope, a perfect blend of power and portability. This advanced telescope features a 9.25" Schmidt-Cassegrain Optical Tube Assembly crafted from robust aluminum, ensuring...
Introducing the Celestron CGX Equatorial 925 Schmidt-Cassegrain Telescope, a perfect blend of power and portability. This advanced telescope features a 9.25" Schmidt-Cassegrain Optical Tube Assembly crafted from robust aluminum, ensuring durability and precision. Enhanced with Celestron's superior StarBright XLT coatings, it boasts an impressive 2350mm focal length (f/10) and includes a 25mm eyepiece, providing 94x magnification for expansive celestial exploration.
The telescope is equipped with a visual back compatible with 1.25" accessories, adding versatility to your astronomical pursuits. A 6x30 finderscope is included to aid in accurately locating celestial objects, and the star diagonal ensures a comfortable viewing position, particularly for objects positioned high in the sky. This model also comes with a dovetail rail compatible with the CGE mount, seamlessly integrating with your existing setup.
The CGX 925 Schmidt-Cassegrain stands out with the CGX computerized equatorial mount, offering an ideal solution for those seeking a balance between high-resolution viewing and transportability. With over 9 inches of aperture and the premium StarBright XLT coatings, this telescope gathers over 1000 times more light than the unaided eye, making it an excellent choice for long exposure photography with optional CCD cameras or other photographic equipment.
Celestron's CGX mount, a staple of their CGEM series, has long been the foundation for German Equatorial telescopes ranging from 6 to 11 inches in aperture. This mount is the result of Celestron’s cumulative experience in mount design, incorporating technological advancements and user-focused features for enhanced performance and ease of use.
The CGX mount is engineered to optimally support your telescope for both visual observation and astro-imaging. It features a lower profile EQ head for a more compact and stable setup, an improved drive system, and is equipped for remote operation with home and limit optical sensors. The mount also facilitates easier polar alignment and improved cable management. Mechanical and ergonomic advancements have been made to the mount, making it sturdier, more user-friendly, and easier to transport. The CGX mount is designed to be a versatile foundation for a wide range of telescopes, serving as an essential tool for both amateur and professional astronomers.
Specifications
| OPTICAL TUBE INFO: | |
|---|---|
| Optical Design: | Schmidt-Cassegrain |
| Aperture: | 235mm (9.25") |
| Focal Length: | 2350mm (93") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 25mm (.98") |
| Magnification of Eyepiece 1: | 94x |
| Finderscope: | 6x30 |
| Star Diagonal: | 1.25" Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 555x |
| Lowest Useful Magnification: | 34x |
| Limiting Stellar Magnitude: | 14.4 |
| Resolution (Rayleigh): | 0.59 arc seconds |
| Resolution (Dawes): | 0.49 arc seconds |
| Light Gathering Power (Compared to human eye): | 1127x |
| Secondary Mirror Obstruction: | 85mm (3.35") |
| Secondary Mirror Obstruction by Diameter: | 36% |
| Secondary Mirror Obstruction by Area: | 13% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 559mm (22") |
| Optical Tube Diameter: | 271.78mm (10.7") |
| Optical Tube Weight: | 20 lbs (9.07 kg) |
| Dovetail: | CGE Dovetail Bar |
| MOUNT INFO: | |
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 55 lbs (25 kg) |
| Height adjustment range (includes mount and tripod): | 1200.15mm - 1968.5mm (47.25" - 77.5") |
| Tripod Leg Diameter: | 50.8mm (2") Steel tripod with graduated markings on lower section |
| Latitude adjustment range: | 3° - 65° |
| Mount Head Weight: | 44 lbs (20 kg) |
| Accessory Tray: | Yes |
| Tripod Weight: | 19.2 lbs (8.7 kg) |
| Weight of Counterweights: | 2 x 11 lbs |
| Slew Speeds: | 9 slew speeds - max speed 4°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: | 2 AUX Ports (Hand Control can use either AUX Port) |
| Autoguide Port: | Yes |
| USB Port: | Yes, input for Mount and Hand Control |
| Power Requirements: | 12V DC, 4 amps |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App |
| Total Kit Weight: | 105.2 lbs (47.71 kg) |
| Included Items: | CGX Equatorial Head CGX Tripod Accessory Tray 2 x 11 lbs counterweights NexStar+ Hand Control 8mm Allen Wrench 12V DC Power Cable Hand Control Holster |
