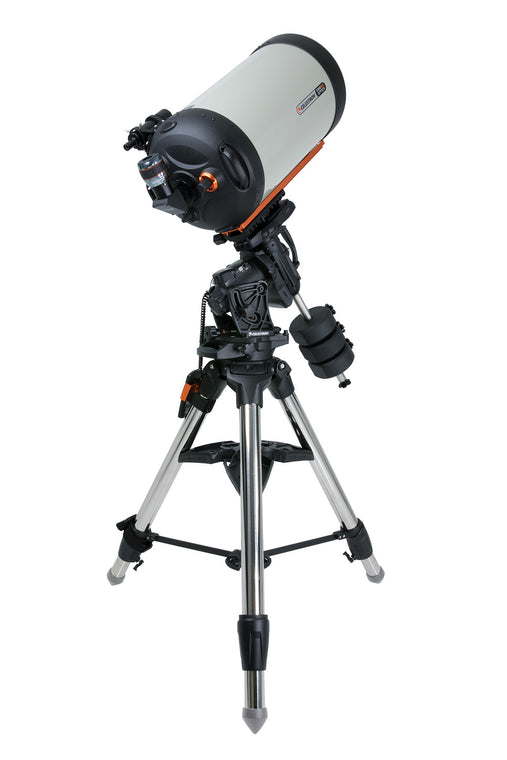

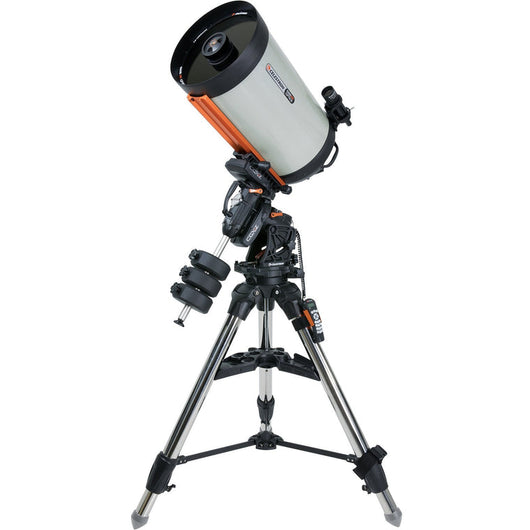

Introducing the Celestron 14" EdgeHD Optics Telescope, a top-tier astronomical instrument enhanced with Celestron's premium StarBright XLT coatings for unmatched light transmission. This advanced setup includes the CGX-L computerized Equatorial mount, known for its capability to support Celestron’s largest optical tubes with remarkable ease. The telescope is anchored on a Heavy Duty stainless steel tripod, adjustable from 38 to 55 inches, ensuring stability and versatility for observers of different heights.

The package comes equipped with a 9x50 finderscope, complete with a quick release bracket, to aid in accurately locating celestial objects. Additionally, a 2" Star diagonal is included to facilitate a more comfortable viewing position, especially for objects located high in the sky.

Celestron’s CGX-L Computerized Equatorial Mount, a recent addition to their esteemed computerized equatorial mount series, is specifically designed for backyard observatories and remote imagers. It stands out for its exceptional load capacity to weight ratio, compact design, and innovative features that are perfect for supporting large telescopes, extensive imaging kits, and the latest wireless technology accessories.

Key design elements of the CGX-L mount include larger 144mm diameter worm wheels for smoother operation and greater accuracy in driving heavier loads, a longer 270mm dovetail saddle to accommodate larger optical tubes, and features optimized for remote operation like home and limit optical sensors. The mount also offers easier polar alignment adjustments and enhanced cable management. Additionally, mechanical and ergonomic improvements have been made throughout the mount, making it more robust, user-friendly, and transport-friendly. The Celestron 14" EdgeHD Optics Telescope and CGX-L mount combination is the epitome of COMPACT, ERGONOMIC, and INNOVATIVE design, making it an ideal choice for serious astronomers and astrophotographers.

Specifications

OPTICAL TUBE INFO:
Optical Design:	EdgeHD
Aperture:	356mm (14")
Focal Length:	3910mm (154")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	23mm (.91")
Magnification of Eyepiece 1:	170x
Finderscope:	9x50
Star Diagonal:	2" with 1.25" adapter
Optical Tube:	Aluminum
Highest Useful Magnification:	840x
Lowest Useful Magnification:	51x
Limiting Stellar Magnitude:	15.3
Resolution (Rayleigh):	0.39 arc seconds
Resolution (Dawes):	0.33 arc seconds
Light Gathering Power (Compared to human eye):	2579x
Secondary Mirror Obstruction:	114mm (4.5")
Secondary Mirror Obstruction by Diameter:	32%
Secondary Mirror Obstruction by Area:	10%
Optical Coatings:	StarBright XLT
Optical Tube Length:	787mm (31")
Optical Tube Diameter:	400.5mm (15.77")
Optical Tube Weight:	46 lbs (21 kg)
Dovetail:	CGE Dovetail Bar
MOUNT INFO:
Mount Type:	Computerized Equatorial
Instrument load capacity:	75 lbs (34 kg)
Height adjustment range (includes mount and tripod):	1524mm - 1955.8mm (60" - 77")
Tripod adjustment range (tripod only):	838.2mm - 1397mm (33" - 55")
Equatorial height alone:	609.6mm (24")
Tripod Leg Diameter:	69.85mm (2.75") Steel tripod with graduated markings on lower section
Latitude adjustment range:	3° - 65°
Mount Head Weight:	52.6 lbs (23.8 kg)
Accessory Tray:	Yes
Tripod Weight:	46.2 lbs (21 kg)
Weight of Counterweights:	3 x 22 lbs
Slew Speeds:	9 slew speeds - max speed 3°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	EQ North and EQ South
GPS:	N/A
Dovetail Compatibility:	Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports:	4 AUX Ports (Hand Control can use any AUX Port, 2 are located near dovetail saddle)
Autoguide Port:	Yes, 2 Ports (one is located near the dovetail saddle)
USB Port:	Yes, input for Mount and Hand Control
Power Requirements:	12V DC, 3 amps
Motor Drive:	DC servo motors
Alignment Procedures:	2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction:	Yes
Computerized Hand Control:	Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons, USB 2.0 Port for PC connection
NexStar+ Database:	40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software:	CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App
Included Items:	CGX-L Equatorial Head CGX-L Tripod Accessory Tray 3 x 22 lbs counterweights NexStar+ Hand Control DC Power Cable (item# 18769) 8mm Allen wrench (contained in rear carry handle)
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Software and Documentation

MANUALS:
CGX-L Mount Manual
EdgeHD Optics Manual
Whitepaper EdgeHD Optics
NexStar Plus Hand Control Manual
SOFTWARE & FIRMWARE:
CPWI Software
Celestron Firmware Manager (CFM) Software
Periodic Error Correction Tool (PECTool)
DRAWINGS:
CGX-L 1400 SCT & EdgeHD Dimensional Drawing
14" EdgeHD Optical Tube Assembly Dimensional Drawing
OTHER PRODUCT FILES:
Adapter to Pier Info Guide
SCT & EdgeHD Collimation Guide
How to Align a Red Dot Finder to Your Telescope Video
Solar Safety Warning
What are the Sizes of Collimation Screws
Celestron NexStar+ Hand Control Troubleshooting Guide
