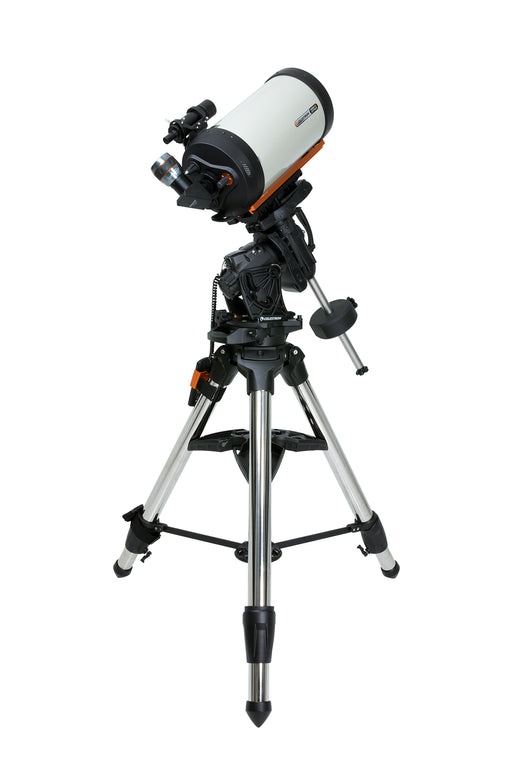

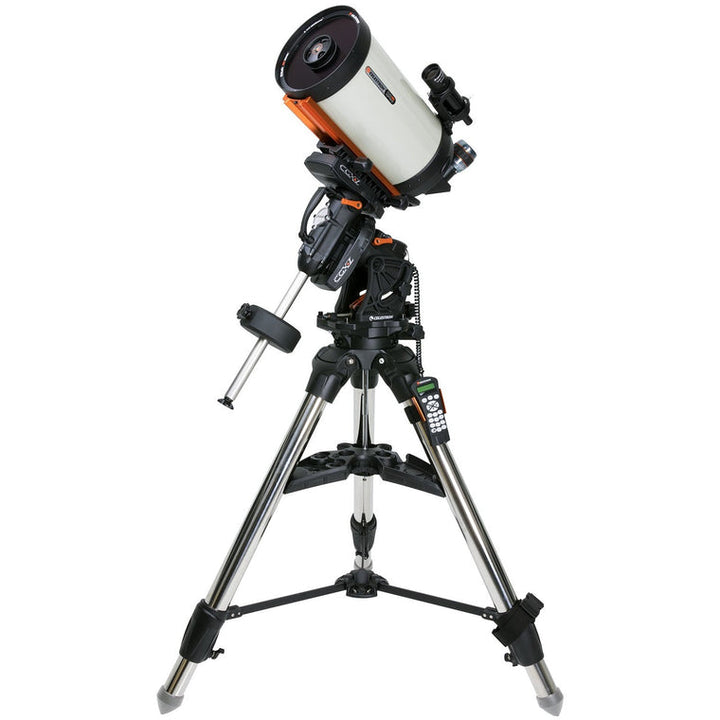

Celestron CGX-L 925 EdgeHD
Presenting the Celestron CGX-L Equatorial 925 HD Telescope, a stellar combination of a 9.25" HD Optical Tube Assembly mounted on the robust CGX-L EQ Mount and Tripod. This telescope is...
Presenting the Celestron CGX-L Equatorial 925 HD Telescope, a stellar combination of a 9.25" HD Optical Tube Assembly mounted on the robust CGX-L EQ Mount and Tripod. This telescope is enhanced with Celestron’s StarBright XLT coatings, known for their premium quality in ensuring maximum light transmission for bright and clear celestial views. The package includes a 9x50 finderscope for precise location of celestial objects, a 2” mirror diagonal for comfortable viewing at steep angles, and a wide-angle 23mm Luminos 2" eyepiece for an expansive field of vision.
Celestron's CGX-L Computerized Equatorial Mount, a recent and significant addition to their fully computerized equatorial mount series, is adept at carrying Celestron’s largest optical tubes with remarkable ease. This mount is an excellent choice for backyard observatories and remote imagers, offering an outstanding load capacity to weight ratio. Its compact design and innovative features are perfectly suited for supporting large telescopes, comprehensive imaging kits, and the latest wireless technology accessories.
Key features of the CGX-L mount include larger 144mm diameter worm wheels for smooth operation and more precise control over heavier loads, a lengthier 270mm dovetail saddle to accommodate larger optical tubes, and user-friendly features for remote operation, such as home and limit optical sensors. This mount also simplifies polar alignment adjustments and enhances cable management. Celestron has integrated both mechanical and ergonomic improvements across the mount, making it more robust, user-friendly, and easy to transport. The Celestron CGX-L Equatorial 925 HD Telescope stands as a testament to COMPACT, ERGONOMIC, and INNOVATIVE design in the world of advanced astronomical equipment.
Specifications
| OPTICAL TUBE INFO: | |
|---|---|
| Optical Design: | EdgeHD |
| Aperture: | 234.95mm (9.25") |
| Focal Length: | 2350mm (93") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 23mm (.91") |
| Magnification of Eyepiece 1: | 102x |
| Finderscope: | 9x50 |
| Star Diagonal: | 2" with 1.25" adapter |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 555x |
| Lowest Useful Magnification: | 34x |
| Limiting Stellar Magnitude: | 14.4 |
| Resolution (Rayleigh): | 0.59 arc seconds |
| Resolution (Dawes): | 0.49 arc seconds |
| Light Gathering Power (Compared to human eye): | 1127x |
| Secondary Mirror Obstruction: | 85mm (3.35") |
| Secondary Mirror Obstruction by Diameter: | 36% |
| Secondary Mirror Obstruction by Area: | 13% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 559mm (22") |
| Optical Tube Diameter: | 271.78mm (10.7") |
| Optical Tube Weight: | 21 lbs (9.53 kg) |
| Dovetail: | CGE Dovetail Bar |
| MOUNT INFO: | |
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 75 lbs (34 kg) |
| Height adjustment range (includes mount and tripod): | 1524mm - 1955.8mm (60" - 77") |
| Tripod adjustment range (tripod only): | 838.2mm - 1397mm (33" - 55") |
| Equatorial height alone: | 609.6mm (24") |
| Tripod Leg Diameter: | 69.85mm (2.75") Steel tripod with graduated markings on lower section |
| Latitude adjustment range: | 3° - 65° |
| Mount Head Weight: | 52.6 lbs (23.8 kg) |
| Accessory Tray: | Yes |
| Tripod Weight: | 46.2 lbs (21 kg) |
| Weight of Counterweights: | 1 x 22 lbs |
| Slew Speeds: | 9 slew speeds - max speed 3°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: | 4 AUX Ports (Hand Control can use any AUX Port, 2 are located near the dovetail saddle for optional accessories) |
| Autoguide Port: | Yes, 2 Ports (one is located near the dovetail saddle) |
| USB Port: | Yes, input for Mount and Hand Control |
| Power Requirements: | 12V DC, 3 amps |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App |
| Total Kit Weight: | 141.8 lbs (64.32 kg) |
| Included Item: | CGX-L Equatorial Head and tripod Accessory Tray 1 x 22 lbs counterweight NexStar+ Hand Control DC Power Cable (item# 18769) 8mm Allen wrench (contained in rear carry handle) |
