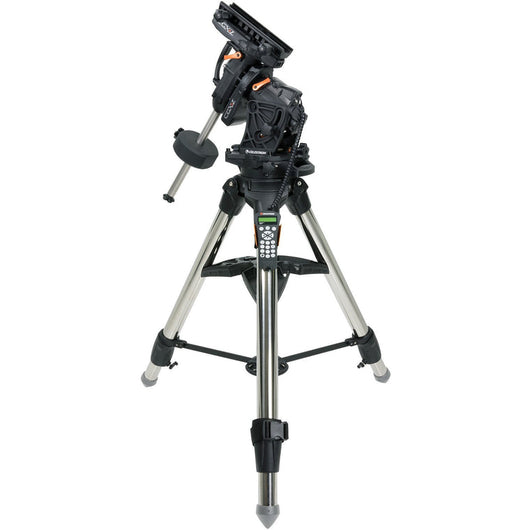

Celestron CGX-L Computerized Mount
The CGX-L Computerized Equatorial mount from Celestron represents the newest addition to our comprehensive line of fully computerized equatorial mounts. Specifically engineered to effortlessly support Celestron’s largest optical tubes, the CGX-L...
The CGX-L Computerized Equatorial mount from Celestron represents the newest addition to our comprehensive line of fully computerized equatorial mounts. Specifically engineered to effortlessly support Celestron’s largest optical tubes, the CGX-L is tailored for backyard observatories and remote imagers seeking an exceptional load capacity to weight ratio, a compact design, and cutting-edge features that seamlessly accommodate large telescopes, imaging setups, and the latest wireless tech accessories.
Key design objectives focused on incorporating larger 144mm diameter worm wheels to enhance operational smoothness and accurately handle heavier loads. The extended 270mm dovetail saddle provides robust support for larger optical tubes, while features like home and limit optical sensors cater to remote operation convenience. Simplified polar alignment adjustments and improved cable management contribute to the user-friendly design. Mechanical and ergonomic enhancements have been implemented throughout, reinforcing the mount's stability, usability, and transportability. It's a blend of compactness, ergonomics, and innovation.
Specifications
| MOUNT INFO: | |
|---|---|
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 75 lbs (34 kg) |
| Height adjustment range (includes mount and tripod): | 1524mm - 1955.8mm (60" - 77") |
| Tripod adjustment range (tripod only): | 838.2mm - 1397mm (33" - 55") |
| Equatorial height alone: | 609.6mm (24") |
| Tripod Leg Diameter: | 69.85mm (2.75") Steel tripod with graduated markings on lower section |
| Latitude adjustment range: | 3° - 65° |
| Mount Head Weight: | 52.6 lbs (23.8 kg) |

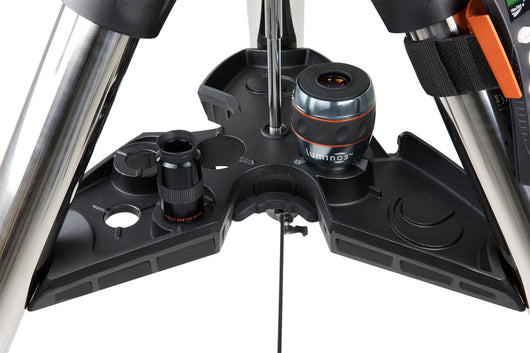

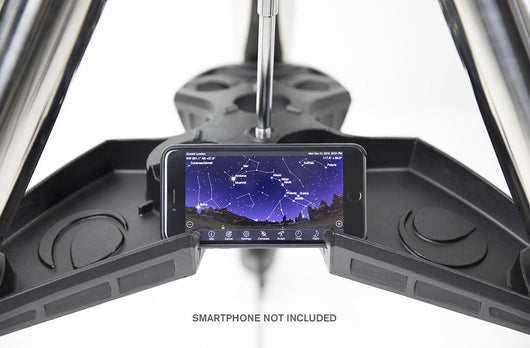

| Accessory Tray: | Yes |
| Tripod Weight: | 46.2 lbs (21 kg) |
| Weight of Counterweights: | 1 x 22 lbs |
| Slew Speeds: | 9 slew speeds - max speed 3°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: | 4 AUX Ports (Hand Control can use any AUX Port, 2 are located near the dovetail saddle for optional accessories) |
| Autoguide Port: | Yes, 2 Ports (one is located near the dovetail saddle) |
| USB Port: | Yes, input for Mount and Hand Control |
| Power Requirements: | 12V DC, 3 amps |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | CPWI Telescope Control Software | Celestron Starry Night Special Edition Software | SkyPortal App |
| Total Kit Weight: | 120.8 lbs (54.8 kg) |

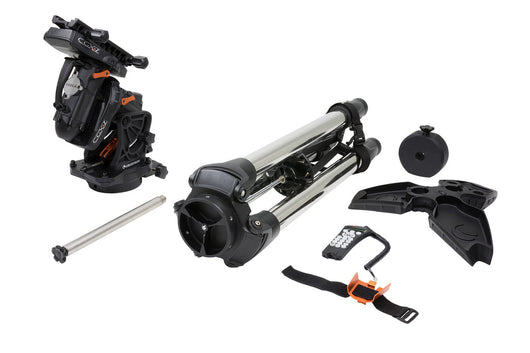

| Included Items: | CGX-L Equatorial Head | CGX-L Tripod | Accessory Tray | 1 x 22 lbs counterweight | NexStar+ Hand Control | DC Power Cable (item# 18769) | 8mm Allen wrench (contained in rear carry handle) |
