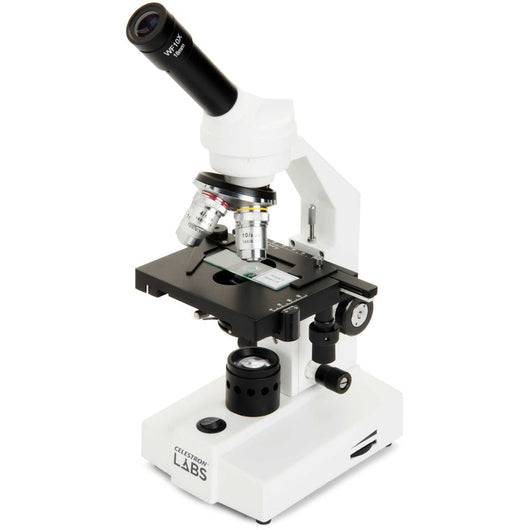

The CM2000CF Compound Microscope from Celestron Labs presents a plethora of advanced features coupled with an wallet-friendly price. Containing 10x and 20x eyepieces, as well as 4 objective lenses (4x, 10x, 40x and 100x), accepting magnifications of up to 2000x, this impressively-built tool experiments with an adjustable mechanical stage for centering slides. Further enhanced with the inclusion of 3 colored filters and 10 prepared slides, its NA 1.25 Abbe condenser and iris diaphragm will grant you a sophisticated viewing experience. A grand addition to labs, schools, scientific research and beyond.



Specifications

GENERAL
Type of Microscope:	Compound
Head:	Monocular with 360° rotatable 45° incline
Eyepiece(s) Magnification:	(1) 10x and (1) 20x (10x with pointer)
Eyepiece(s) Diameter:	23.2mm (.91")
Nosepiece:	quadruple, rotational
Objective(s) Type:	Refractive
Objective(s) Standard:	DIN

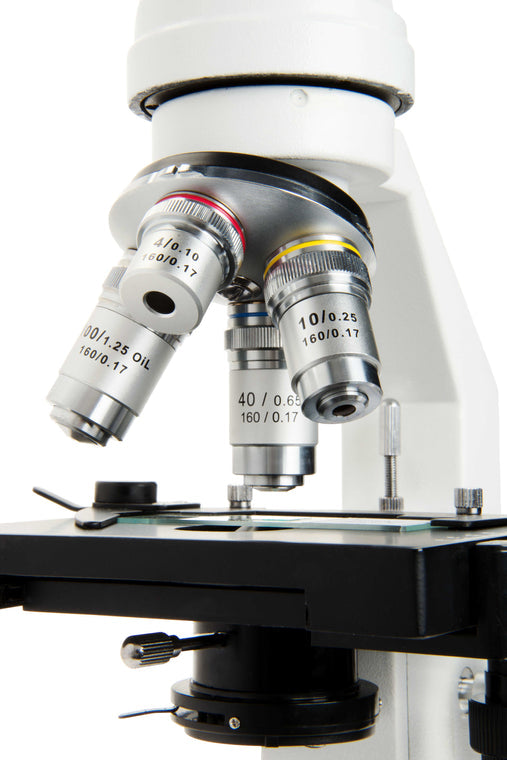

Objective(s) Magnification:	(4) 4x, 10x, 40x, 100x immersion, all achromatic
Objective(s) Thread:	4/5" x 1/36"
Focus Type(s):	Rack and pinion, coarse and fine focus (individual dials)
Focus Travel (per rotation):	0.1mm (.004")
Magnification Range:	40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x)
Illumination Type:	LED
Illumination Position(s):	Lower
Illumination Adjustability Mechanism:	Dial
Power Source:	Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations
Battery Option:	N/A
Stage:	Mechanical stage, 110mm x 125mm (4.3" x 4.9")

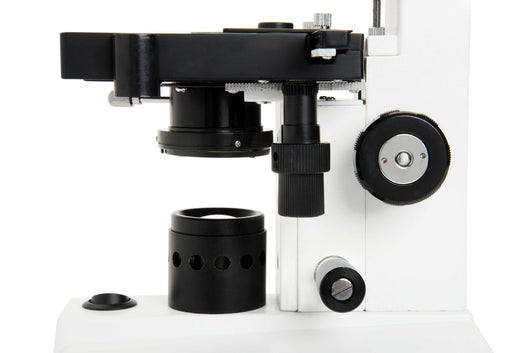

Condenser Type:	Abbe with Iris adjustment
Condenser N.A.:	1.25
Stage Diaphragm:	N/A

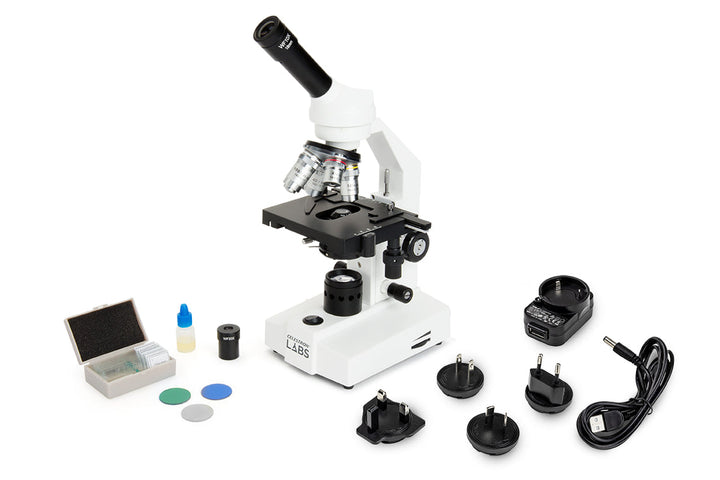

Included Items:	3 color filters (blue, white opaque, green) Immersion oil 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s.
Solar Warning
California Residents	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.



Software and Documentation

MANUALS:
Celestron Labs CM2000CF Manual
OTHER PRODUCT FILES:
Microscope basics
