CPC 925 GPS (XLT) Computerized Telescope: Key Features

General Specs

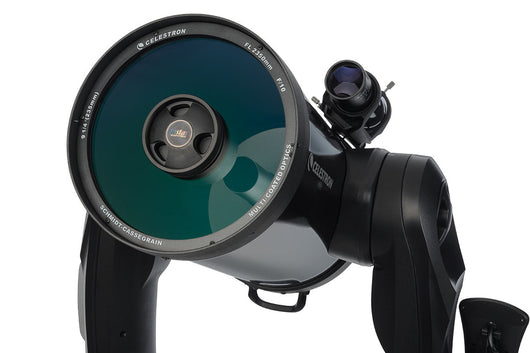

9.25-inch Schmidt-Cassegrain telescope boasting diffraction-limited optics
Enhanced with Celestron’s elite StarBright XLT coatings for improved light transmission

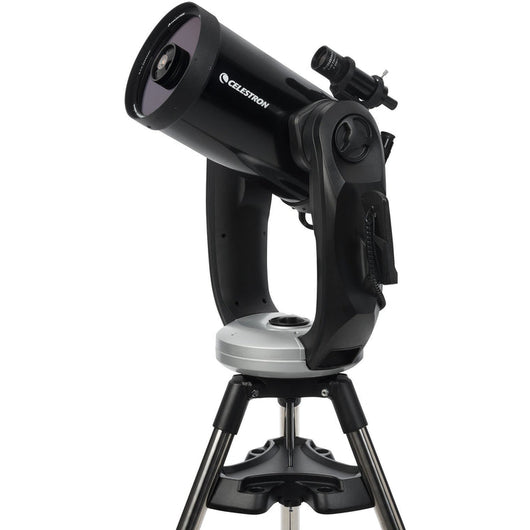

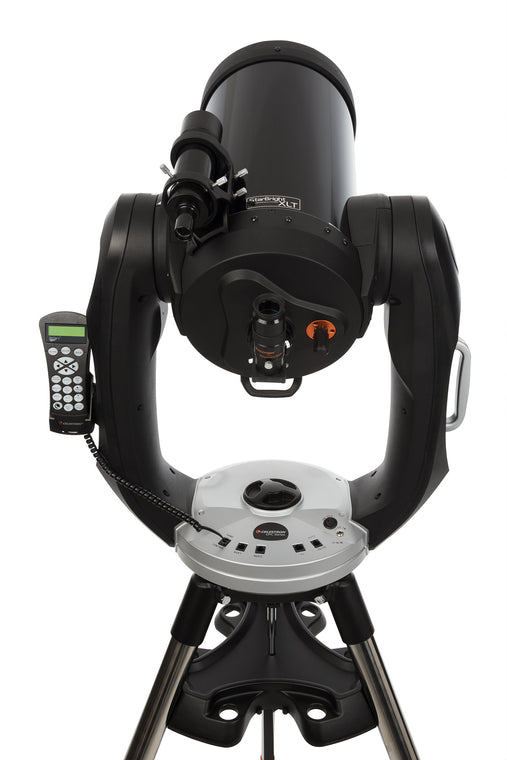

Features a fully-automated dual-fork arm Altazimuth mount for stable positioning
Comes equipped with a 9x50 finderscope for precise object tracking
Next-gen, robust tripod allows for quick and simple setup, even in pitch-black conditions. The tripod includes durable 2-inch steel legs and an accessory tray.
Ergonomically designed for ease of lifting and transportation between observing sites
Integrated star diagonal makes for a more relaxed viewing posture, particularly for high-altitude objects
Includes a built-in remote hand control holder for a hands-free operation while using the telescope

Computerized Mount Highlights

Utilizes the established NexStar computer control system for automated navigation
Extensive database with over 40,000 celestial objects, including customizable and expanded details on 200+ items
Features pre-set lists that categorize the best-known deep-sky objects, multiple star systems, variable stars, solar system bodies, and asterisms
Updated drive base and mechanical components, featuring quieter operation, larger drive gears, and a quick-release clutch
SkyAlign technology for rapid and straightforward alignment using any three bright celestial objects
Software and motor controls are flash-upgradable online
Permanent Periodic Error Correction (PEC) functionality
Additional auxiliary port for optional accessories, like Autoguider or GPS modules
Comes bundled with NexRemote software and an RS-232 cable for comprehensive computerized telescope control

Specifications

MOUNT INFO:
Optical Design:	Schmidt-Cassegrain
Aperture:	235mm (9.25")
Focal Length:	2350mm (93")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	40mm (1.57")
Magnification of Eyepiece 1:	59x
Finderscope:	9x50 Finderscope with quick release bracket
Star Diagonal:	1.25" Star Diagonal
Optical Tube:	Aluminum
Highest Useful Magnification:	555x
Lowest Useful Magnification:	34x
Limiting Stellar Magnitude:	14.4
Resolution (Rayleigh):	0.59 arc seconds
Resolution (Dawes):	0.49 arc seconds
Light Gathering Power (Compared to human eye):	1127x
Secondary Mirror Obstruction:	85mm (3.35")
Secondary Mirror Obstruction by Diameter:	36%
Secondary Mirror Obstruction by Area:	13%
Optical Coatings:	Starbright XLT
Optical Tube Length:	559mm (22")
Optical Tube Diameter:	271.78mm (10.7")
Optical Tube Weight:	58 lbs (26.3 kg) with mount
Dovetail:	None
Mount Type:	Computerized Altitude-Azimuth Dual Fork Arm
Height adjustment range (includes mount and tripod):	1397mm - 1778mm (55" - 70")
Tripod leg diameter:	50.8mm (2") Stainless Steel
Mount Head Weight:	58 lbs (26.3 kg) with optical tube
Accessory Tray:	Yes
Tripod Weight:	19 lbs (8.6 kg)
Slew Speed:	9 slew speeds - max speed 5°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	Altazimuth, EQ North and EQ South
GPS:	Internal 16 channel
Dovetail Compatibility:	none
Number of Auxiliary ports:	2 AUX Ports (Hand Control can use any of the AUX Ports)
Autoguide Port:	Yes
USB Port:	Yes, on hand control
Power Requirements:	12 VDC-1.5A (Tip positive)
Motor Drive:	DC servo motors
Alignment Procedures:	Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align
Periodic Error Correction:	Yes
Computerized Hand Control:	2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database:	40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software:	Celestron Starry Night Special Edition Software and SkyPortal App
Total Telescope Kit Weight:	77 lbs ( 34.9 kg)
Included Items:	Optical tube Mount and Tripod Accessory Tray 40mm eyepiece 1.25" Star Diagonal 50mm 9x50 Finderscope with Bracket Instruction Manual
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Software and Documentation

MANUALS:
NexStar Plus Hand Control Manual
CPC Manual
SOFTWARE & FIRMWARE:
CPWI Software
Celestron Firmware Manager (CFM) Software
NexRemote Telescope Control Software
DRAWINGS:
CPC Tripod Dimensional Drawing
CPC 925 GPS Fork Mount and OTA Dimensional Drawing
CPC 925 GPS Full System Dimensional Drawing
OTHER PRODUCT FILES:
SCT & EdgeHD Collimation Guide
CPC Additional Specifications
How to Align a Red Dot Finder to Your Telescope Video
Solar Safety Warning
What are the Sizes of Collimation Screws
Celestron NexStar+ Hand Control Troubleshooting Guide
