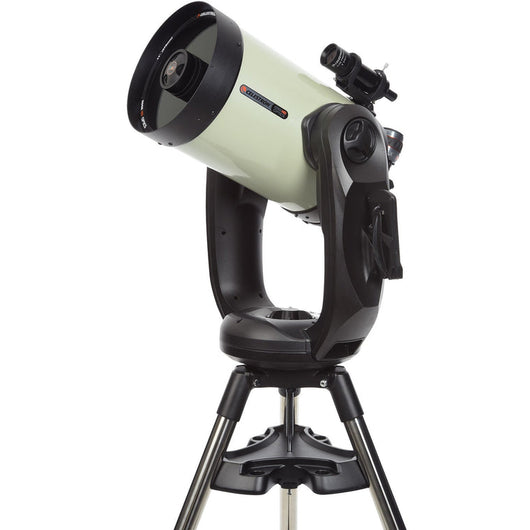

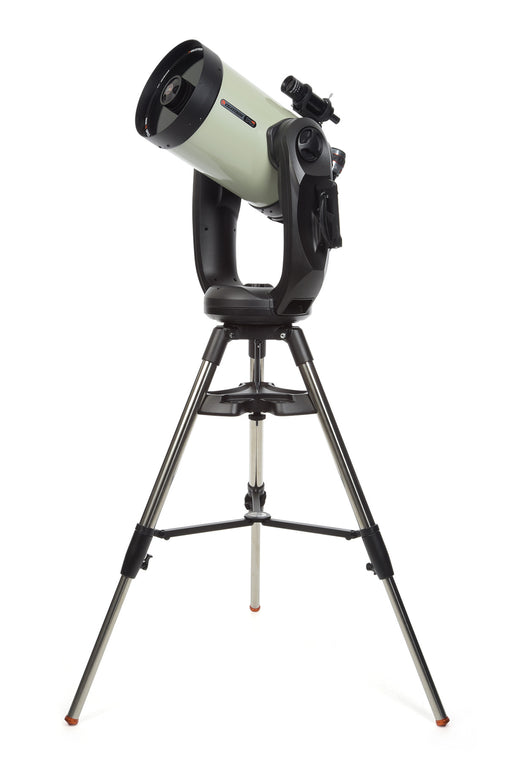

Celestron's CPC Deluxe HD stands out in the altazimuth telescope market as a high-performer, earning it the admiration of seasoned amateur astronomers and acclaim from Stephen Hawking. Its 11-inch EdgeHD optical tube offers exceptional, defect-free astroimages and views. Navigation is a breeze with the NexStar+ hand control and built-in GPS, guiding users through easy SkyAlign setup and offering access to over 40,000 celestial objects. The telescope is anchored by a sturdy dual fork arm mount with enhanced gears and motors, ensuring superior tracking and pinpoint accuracy. Designed with serious astroimaging in mind, the CPC Deluxe HD is equipped for All-Star Polar Alignment and features Permanently Programmable Periodic Error Correction when paired with the HD Pro Wedge. This versatility makes it ideal for both leisurely backyard observations and intensive astroimaging in remote, dark sky locations. The CPC Deluxe HD is also a popular choice for NASA (with a CPC 925 on the International Space Station) and was favored by Stephen Hawking for his personal use in Cambridge, UK.

The Celestron CPC Deluxe HD boasts exceptional optics, starting with its proprietary EdgeHD optical system, designed to correct coma and field curvature. This results in aberration-free images with pinpoint stars, extending across the largest imaging sensors and wide eyepieces. To learn more about how EdgeHD surpasses other optical systems, one can download the EdgeHD whitepaper from the Support and Download tab. All EdgeHD systems feature StarBright XLT coatings on all optical surfaces, enhancing image brightness and light transmission. Plus, each EdgeHD optical tube is Fastar compatible, allowing for ultra-fast f/2 imaging after attaching a third-party lens assembly in place of the secondary mirror.

The CPC Deluxe is renowned for its ultimate versatility. It's robust yet portable, with a dual fork arm mount that provides ultra-precise tracking and is easy to set up thanks to its manageable weight of 70.51 lbs and convenient carrying handles. The telescope's SkyAlign procedure is user-friendly, guiding you through aligning three bright objects in the eyepiece, and then ready to locate and track over 40,000 celestial bodies. The CPC Deluxe HD is compatible with the latest Celestron accessories like StarSense AutoAlign for quick automatic alignment and the SkyQ Link 2 WiFi Module for smartphone or tablet control. This makes it a long-term, versatile investment for any aspect of the hobby, including astroimaging.

The CPC Deluxe HD is uniquely designed for both visual and astroimaging purposes, unlike most altazimuth telescopes. It features high-end components like a 6-inch brass gear, stainless steel worm gear, and ball bearings in steel and nylon. This allows for accurate tracking up to 30 seconds without a wedge. For extended exposure astrophotography, adding the HD Pro Wedge transforms the telescope into an ideal astroimaging setup. With the wedge, users benefit from quick All Star Polar Alignment and enhanced accuracy through Permanently Programmable Periodic Error Correction. The CPC also smoothly tracks across the meridian without requiring a meridian flip, facilitating the capture of celestial objects in prime sky regions.

Specifications

OPTICAL TUBE INFO:
Optical Design:	EdgeHD
Aperture:	279.4mm (11")
Focal Length:	2800mm (110")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	23mm (0.91")
Magnification of Eyepiece 1:	122x
Finderscope:	9x50
Star Diagonal:	2" with 1.25" adapter
Optical Tube:	Aluminum
Highest Useful Magnification:	660x
Lowest Useful Magnification:	40x
Limiting Stellar Magnitude:	14
Resolution (Rayleigh):	0.5 arc seconds
Resolution (Dawes):	0.42 arc seconds
Light Gathering Power (Compared to human eye):	1593x
Secondary Mirror Obstruction:	95mm (3.75")
Secondary Mirror Obstruction by Diameter:	34%
Secondary Mirror Obstruction by Area:	12%
Optical Coatings:	Starbright XLT
Optical Tube Length:	610mm (24")
Optical Tube Diameter:	312.42mm (12.3")
Optical Tube Weight:	65 lbs (29.5 kg) with mount
Dovetail:	None
MOUNT INFO:
Mount Type:	Computerized Altitude-Azimuth Dual Fork Arm
Height adjustment range (includes mount and tripod):	1397mm - 1778mm (55" - 70")
Tripod leg diameter:	50.8mm (2") Stainless Steel
Mount Head Weight:	65 lbs (29.5 kg) with optical tube
Accessory Tray:	Yes
Tripod Weight:	19 lbs (8.6 kg)
Slew Speed:	9 slew speeds - max speed 5°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	Altazimuth, EQ North and EQ South
GPS:	Internal 16 channel
Dovetail Compatibility:	none

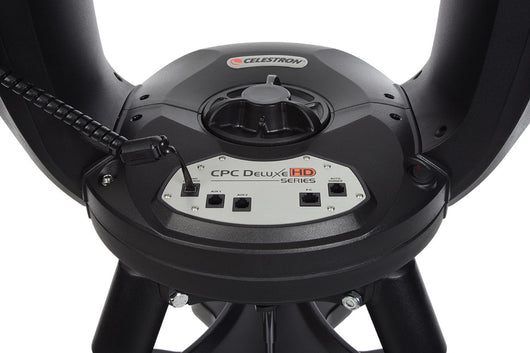

Number of Auxiliary Ports:	2 AUX Ports (Hand Control can use any of the AUX Ports)
Autoguide Port:	Yes
USB Port:	Yes, on hand control
Power Requirements:	12 VDC-1.5A (Tip positive)
Motor Drive:	DC servo motors
Alignment Procedures:	Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align
Periodic Error Correction:	Yes

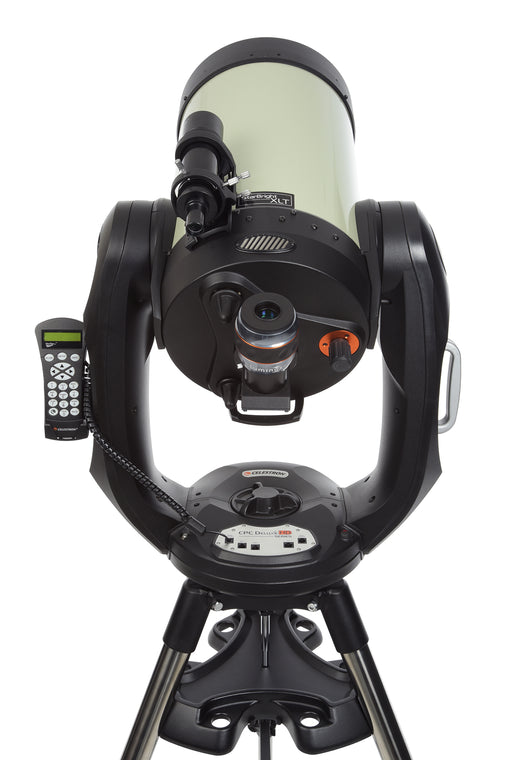

Computerized Hand Control:	2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database:	40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software:	Celestron Starry Night Special Edition Software and SkyPortal App
Total Telescope Kit Weight:	84 lbs (38.1 kg)
Included Items:	Optical tube Mount and Tripod Accessory Tray 23mm eyepiece 2" Star Diagonal with 1.25" adapter 50mm 9x50 Finderscope with Bracket Instruction Manual
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Software and Documentation

We recommend a load of no more than 33 lbs. at 5.0 inches away from the 11" Schmidt corrector.

MANUALS:
EdgeHD Optics Manual
Whitepaper EdgeHD Optics
NexStar Plus Hand Control Manual
CPC Deluxe HD Manual
SOFTWARE & FIRMWARE:
CPWI Software
Celestron Firmware Manager (CFM) Software
NexRemote Telescope Control Software
DRAWINGS:
CPC Deluxe Tripod Dimensional Drawing
CPC Deluxe 1100 HD Fork Mount and OTA Dimensional Drawing
CPC Deluxe 1100 HD Full System Dimensional Drawing
OTHER PRODUCT FILES:
SCT & EdgeHD Collimation Guide
CPC Additional Specifications
How to Align a Red Dot Finder to Your Telescope Video
Solar Safety Warning
What are the Sizes of Collimation Screws
Celestron NexStar+ Hand Control Troubleshooting Guide
