Celestron CPC Deluxe 800 EdgeHD

$3,199.00 $2,699.00

  The Celestron CPC Deluxe HD, a flagship in the altazimuth telescope category, is highly revered by advanced amateur astronomers and was also the telescope of choice for Stephen Hawking. It...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
SKU: 11007
Availability: In Stock Pre order Out of stock
Description

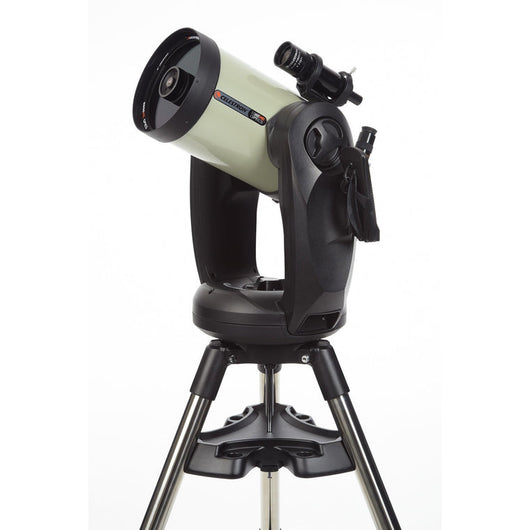

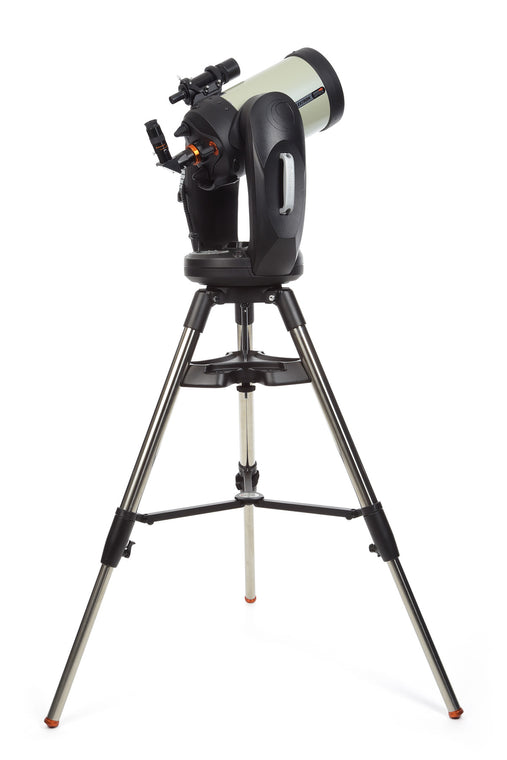

The Celestron CPC Deluxe HD, a flagship in the altazimuth telescope category, is highly revered by advanced amateur astronomers and was also the telescope of choice for Stephen Hawking. It features an 8-inch EdgeHD optical tube that offers clear, sharp astroimages without any visual imperfections. The NexStar+ hand control, coupled with an internal GPS, simplifies the SkyAlign setup process and provides access to a database of over 40,000 celestial objects. A robust dual fork arm mount, equipped with upgraded gears and motors, provides the telescope with exceptional tracking and accuracy.

Designed with astroimaging in mind, the CPC Deluxe HD includes All-Star Polar Alignment and Permanently Programmable Periodic Error Correction when used with the HD Pro Wedge. The CPC Deluxe 800HD merges superior performance with boundless versatility, making it ideal for everything from casual backyard stargazing to advanced astroimaging in remote, dark sky areas. The CPC/CPC Deluxe series is also a preferred choice for NASA (with a CPC 925 onboard the International Space Station) and was used by renowned astrophysicist Stephen Hawking at his residence in Cambridge, UK.

At the heart of the CPC Deluxe HD's exceptional viewing experience is Celestron’s proprietary EdgeHD optical system. This system is specifically designed to correct coma and field curvature, ensuring aberration-free images and crisply defined stars, even at the edges of the largest imaging sensors and widest eyepieces.

Details on how EdgeHD surpasses other optical systems can be found in the EdgeHD whitepaper, available in the Support and Download section. All EdgeHD systems are treated with StarBright XLT coatings on all optical surfaces, enhancing image brightness and light transmission. Additionally, each EdgeHD optical tube is compatible with Fastar, allowing for rapid f/2 imaging by replacing the secondary mirror with a third-party lens assembly.

The CPC Deluxe is acclaimed for its exceptional versatility. Its solid dual fork arm mount guarantees ultra-precise tracking and is surprisingly lightweight at just 43 lbs, with durable handles for easy setup.

Upon activation, the CPC Deluxe HD guides you through the straightforward SkyAlign procedure, helping you center any three bright objects in the eyepiece. Afterward, it’s ready to locate and track over 40,000 celestial bodies.

To further tailor your astronomical experience, the CPC Deluxe HD is compatible with all of Celestron’s newest accessories. This includes the StarSense AutoAlign for rapid alignment, or the SkyQ Link 2 WiFi Module for controlling the telescope with a smartphone or tablet.

With such versatility, the CPC Deluxe HD is a telescope that will remain relevant and highly functional for years, catering to all aspects of the hobby, including advanced astroimaging.

The CPC Deluxe HD is uniquely crafted for astroimaging, unlike most altazimuth telescopes that focus primarily on visual observation. It boasts high-end features similar to German equatorial mounts. Right out of the box, the CPC Deluxe can track accurately for up to 30 seconds without a wedge, thanks to a newly engineered drive train featuring a 6-inch brass gear, stainless steel worm gear, and ball bearings made of steel and nylon.

For extended exposure astrophotography, adding the HD Pro Wedge transforms the telescope into an ideal setup for astroimaging. This includes utilizing the All Star Polar Alignment process for quick polar alignment and enhancing mount accuracy with Permanently Programmable Periodic Error Correction. Additionally, the CPC tracks seamlessly through the meridian without needing a meridian flip, enabling the capture of celestial objects at their optimal positions in the night sky.

Specifications

OPTICAL TUBE INFO:
Optical Design: EdgeHD
Aperture: 203.2mm (8")
Focal Length: 2032mm (80")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 40mm (1.57")
Magnification of Eyepiece 1: 51x
Finderscope: 50mm Finderscope with quick release bracket
Star Diagonal: 1.25" Star Diagonal
Optical Tube: Aluminum
Highest Useful Magnification: 480x
Lowest Useful Magnification: 29x
Limiting Stellar Magnitude: 14
Resolution (Rayleigh): 0.69 arc seconds
Resolution (Dawes): 0.57 arc seconds
Light Gathering Power (Compared to human eye): 843x
Secondary Mirror Obstruction: 64mm (2.5")
Secondary Mirror Obstruction by Diameter: 31%
Secondary Mirror Obstruction by Area: 9.77%
Optical Coatings: Starbright XLT
Optical Tube Length: 432mm (17")
Optical Tube Diameter: 238mm (9.37")
Optical Tube Weight: 42 lbs (19.1 kg) with mount
Dovetail: None
MOUNT INFO:
Mount Type: Computerized Altitude-Azimuth Dual Fork Arm
Height adjustment range (includes mount and tripod): 1295.4mm - 1422.4mm (51" - 66")
Tripod leg diameter: 50.8mm (2") Stainless Steel
Mount Head Weight: 42 lbs (19.1 kg) with optical tube
Accessory Tray: Yes
Tripod Weight: 19 lbs (8.6 kg)
Slew Speed: 9 slew speeds - max speed 5°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: Altazimuth, EQ North and EQ South
GPS: Internal 16 channel
Dovetail Compatibility: none

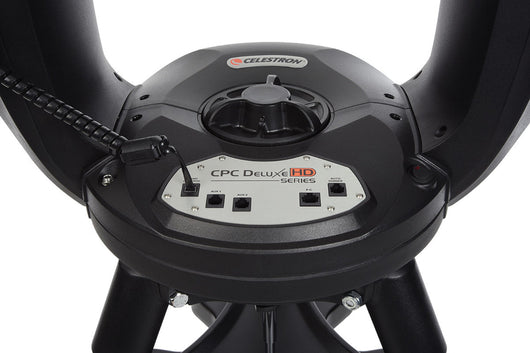

Number of Auxiliary Ports: 2 AUX Ports (Hand Control can use any of the AUX Ports)
Autoguide Port: Yes
USB Port: Yes, on hand control
Power Requirements: 12 VDC-1.5A (Tip positive)
Motor Drive: DC servo motors
Alignment Procedures: Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align
Periodic Error Correction: Yes

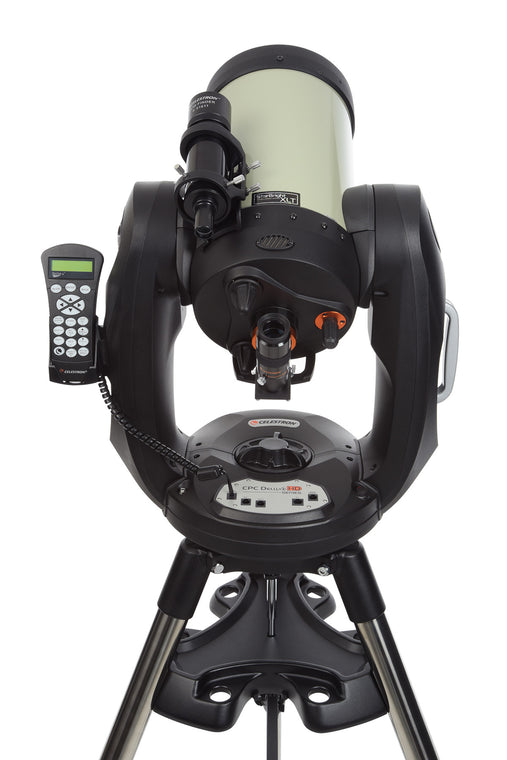

Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: Celestron Starry Night Special Edition Software and SkyPortal App
Total Telescope Kit Weight: 61 lbs (27.6 kg)
Included Items: Optical tube
Mount and Tripod
Accessory Tray
40mm eyepiece
1.25" Star Diagonal
50mm 9x50 Finderscope with Bracket
Instruction Manual
Solar Warning
  • Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
  • Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
  • Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.



Software and Documentation

MANUALS:
EdgeHD Optics Manual
Whitepaper EdgeHD Optics
NexStar Plus Hand Control Manual
CPC Deluxe HD Manual
SOFTWARE & FIRMWARE:
CPWI Software
Celestron Firmware Manager (CFM) Software
NexRemote Telescope Control Software
DRAWINGS:
CPC Deluxe 800 HD Fork Mount and OTA Dimensional Drawing
CPC Deluxe Tripod Dimensional Drawing
CPC Deluxe 800 HD Full System Dimensional Drawing
OTHER PRODUCT FILES:
SCT & EdgeHD Collimation Guide
CPC Additional Specifications
How to Align a Red Dot Finder to Your Telescope Video
Solar Safety Warning
What are the Sizes of Collimation Screws
Celestron NexStar+ Hand Control Troubleshooting Guide
