Celestron CPC Deluxe 925 EdgeHD
The CPC Deluxe HD by Celestron, a leader in the altazimuth telescope system, is highly regarded by seasoned amateur astronomers and was the chosen instrument of Stephen Hawking. Its 9.25-inch...
The CPC Deluxe HD by Celestron, a leader in the altazimuth telescope system, is highly regarded by seasoned amateur astronomers and was the chosen instrument of Stephen Hawking. Its 9.25-inch EdgeHD optical tube delivers breathtaking and flawlessly sharp astroimages. The integrated NexStar+ hand control and GPS make navigation simple with SkyAlign setup and a database of over 40,000 objects. Its robust dual fork arm mount, enhanced with superior gears and motors, ensures exceptional tracking precision and stability.
This telescope is perfectly suited for advanced astroimaging, boasting All-Star Polar Alignment and Permanently Programmable Periodic Error Correction when used with the HD Pro Wedge. The CPC Deluxe 925HD combines elite performance with unmatched versatility, ideal for everything from casual backyard stargazing to intense astroimaging in remote areas. The CPC Deluxe series is also esteemed by NASA (with a CPC 925 on the International Space Station) and was used by renowned astrophysicist Stephen Hawking in Cambridge, UK.

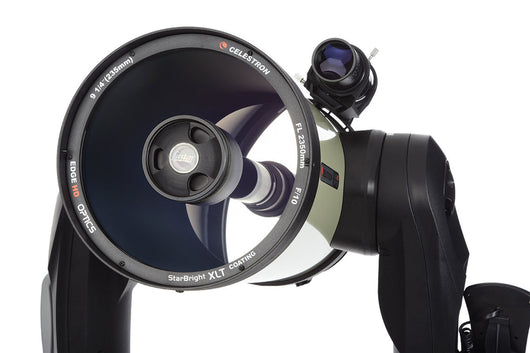

Celestron’s CPC Deluxe HD is renowned for its unparalleled optics. At its core is the EdgeHD optical system, uniquely designed to correct coma and field curvature, ensuring images free from aberrations with pinpoint stars, even at the edges of the widest eyepieces.
To understand how EdgeHD surpasses other optical systems, the EdgeHD whitepaper is available in the Support and Download section. Each EdgeHD system features StarBright XLT coatings on optical surfaces to enhance image brightness and light transmission. Furthermore, these optical tubes are Fastar compatible, allowing for rapid f/2 night sky imaging by simply replacing the secondary mirror with a third-party lens assembly.
The CPC Deluxe is celebrated for its supreme versatility. Its substantial yet manageable dual fork arm mount, weighing 64.84 lbs and equipped with sturdy handles, makes it easy to set up and precise in tracking. The telescope's SkyAlign procedure is user-friendly, guiding you to align three bright objects in the eyepiece, readying the telescope to locate and track more than 40,000 celestial objects.
Customization is key with the CPC Deluxe HD, compatible with all of Celestron’s latest accessories. Whether it’s adding StarSense AutoAlign for swift alignment or the SkyQ Link 2 WiFi Module for smartphone control, this telescope adapts to all your astronomical needs.
Designed with astroimaging in mind, the CPC Deluxe HD is not just for visual observation. It shares high-end features with German equatorial mounts, allowing accurate tracking for up to 30 seconds without a wedge. Adding the HD Pro Wedge enhances its capabilities for longer exposure astrophotography. This setup enables quick polar alignment with the All Star Polar Alignment procedure and more precise tracking with Permanently Programmable Periodic Error Correction. It also smoothly tracks through the meridian, facilitating the capture of celestial objects in optimal sky regions.
Specifications
OPTICAL TUBE INFO: | |
---|---|
Optical Design: | EdgeHD |
Aperture: | 235mm (9.25") |
Focal Length: | 2350mm (93") |
Focal Ratio: | f/10 |
Focal Length of Eyepiece 1: | 23mm (0.91") |
Magnification of Eyepiece 1: | 102x |
Finderscope: | 50mm (1.97") Finderscope with quick release bracket |
Star Diagonal: | 2" with 1.25" adapter |
Optical Tube: | Aluminum |
Highest Useful Magnification: | 555x |
Lowest Useful Magnification: | 34x |
Limiting Stellar Magnitude: | 14.4 |
Resolution (Rayleigh): | 0.59 arc seconds |
Resolution (Dawes): | 0.49 arc seconds |
Light Gathering Power (Compared to human eye): | 1127x |
Secondary Mirror Obstruction: | 85mm (3.35") |
Secondary Mirror Obstruction by Diameter: | 36% |
Secondary Mirror Obstruction by Area: | 13% |
Optical Coatings: | Starbright XLT |
Optical Tube Length: | 559mm (22") |
Optical Tube Diameter: | 271.78mm (10.7") |
Optical Tube Weight: | 58 lbs (26.3 kg) with mount |
Dovetail: | None |
MOUNT INFO: | |
Mount Type: | Computerized Altitude-Azimuth Dual Fork Arm |
Height adjustment range (includes mount and tripod): | 1397mm - 1778mm (55" - 70") |
Tripod leg diameter: | 50.8mm (2") Stainless Steel |
Mount Head Weight: | 58 lbs (26.3 kg) with optical tube |
Accessory Tray: | Yes |
Tripod Weight: | 19 lbs (8.6 kg) |
Slew Speed: | 9 slew speeds - max speed 5°/second |
Tracking Rates: | Sidereal, Solar and Lunar |
Tracking Modes: | Altazimuth, EQ North and EQ South |
GPS: | Internal 16 channel |
Dovetail Compatibility: | none |

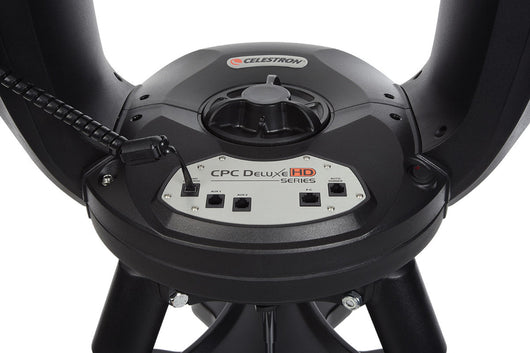

Number of Auxiliary Ports: | 2 AUX Ports (Hand Control can use any of the AUX Ports) |
Autoguide Port: | Yes |
USB Port: | Yes, on hand control |
Power Requirements: | 12 VDC-1.5A (Tip positive) |
Motor Drive: | DC servo motors |
Alignment Procedures: | Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align |
Periodic Error Correction: | Yes |

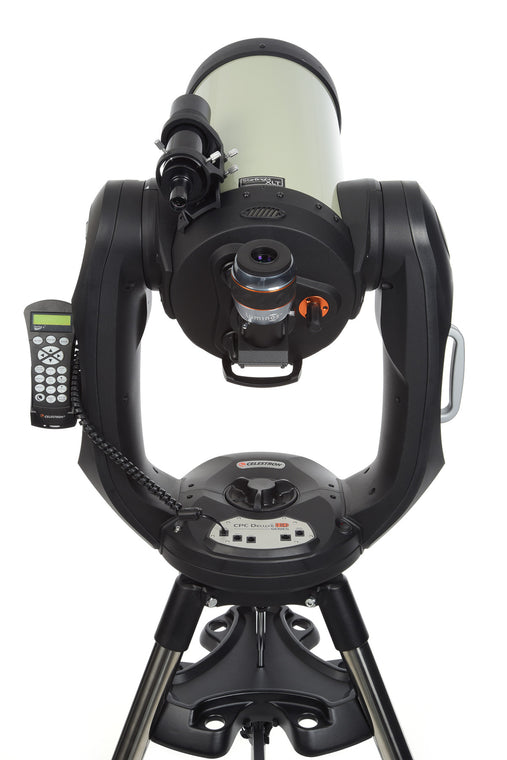

Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
Software: | Celestron Starry Night Special Edition Software and SkyPortal App |
Total Telescope Kit Weight: | 77 lbs ( 34.9 kg) |
Included Items: | Optical tube Mount and Tripod Accessory Tray 23mm Eyepiece 2" Star Diagonal with 1.25" adapter 50mm 9x50 Finderscope with Bracket Instruction Manual |
