Celestron LCD Digital Microscope II

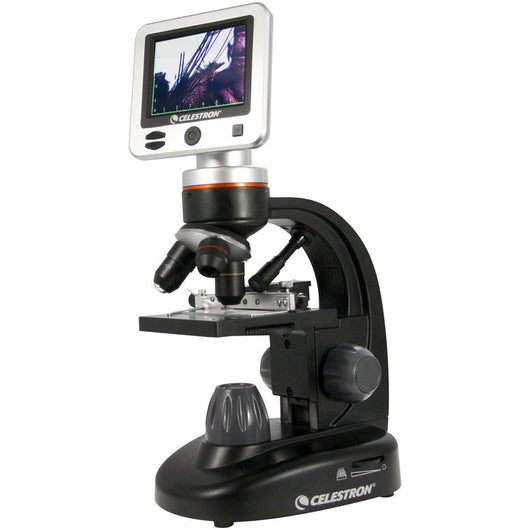

The Celestron LCD Digital Microscope II merges professional-grade features with user-friendly design, offering a high-quality biological microscope at an accessible price. This advanced microscope is equipped with a 3.5-inch full-color...
The Celestron LCD Digital Microscope II merges professional-grade features with user-friendly design, offering a high-quality biological microscope at an accessible price. This advanced microscope is equipped with a 3.5-inch full-color TFT LCD screen and a 5MP CMOS digital camera, facilitating the capture of high-resolution images and videos of specimens. The microscope's mechanical stage is fully adjustable, ensuring smooth slide maneuverability.
A key feature of the Celestron LCD Digital Microscope II is its 180° rotating head, which simplifies the sharing of images. Its rotating objective lens turret offers three levels of magnification: 4x, 10x, and 40x. The camera sensor doubles as a 10x eyepiece lens, providing magnification powers of 40x, 100x, and 400x, with an additional 4x digital zoom to reach up to 1600x magnification.

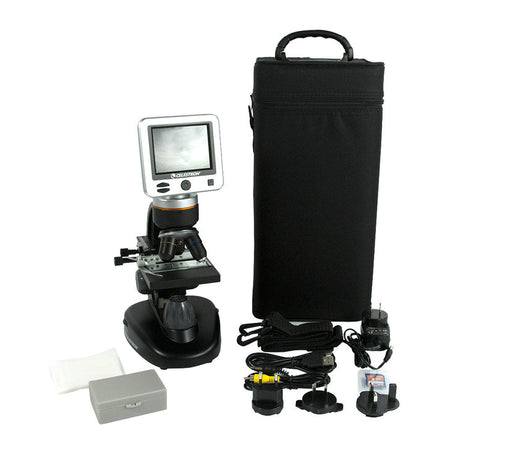

This microscope is ideal for a wide range of applications, from professional research to serious hobbyist exploration. The built-in measuring reticle aids in comparing specimen sizes, enhancing the analytical aspect of microscopy. Included in the package is a 1GB SD card, capable of storing over 620 high-resolution images, a TV output for large monitor displays in classrooms or labs, and several accessories: a dust cover, a rugged canvas carrying case with a shoulder strap, five prepared slides, and a 4-plug international AC adapter.
Whether in a laboratory, classroom, or at home, the Celestron LCD Digital Microscope II stands out for its versatility and ease of use, making it an excellent choice for educators, students, and professionals alike.
Specifications
| Type of Microscope: | LCD Desktop |
| Head: | 180° rotatable head w/3.5" TFT LCD Screen |
| Nosepiece: | Triple with click stop |
| Objective(s) Type: | (3) Achromatic objectives on turret |
| Objective(s) Standard: | DIN 35 RMS |
| Objective(s) Magnification: | 4x, 10x, 40x |
| Objective(s) Thread: | WJ 4/5" x 1/36" |
| Focus Type(s): | Course Focus |
| Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range: | 40x, 100x, 400x | Up to 1600x with digtial zoom |
| Illumination Type: | LEDs |
| Illumination Position(s): | TBD |
| Illumination Adjustability Mechanism: | Adjustable wheels at base |
| Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional) |
| Battery Options: | Yes (4AA) |
| Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures |
| Condenser Type: | Aplantic |
| Condenser N.A.: | N.A. 65 |
| Stage Diaphragm: | Multiple on wheel |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
| Sensor Size: | 5MP | 1/2.5" |
| Pixel Size: | 2.2 μm |
| Screen type: | High Definition TFT LCD Screen | 480 x 272 pixels | 262K colors | Brightnes 400cd/m2 |
| Screen Size: | 3.5" |
| Memory Type: | SD Card |
| Memory Size: | 2G SD included | Supports up to 32G |
| Port(s) In: | AC Plug (power) | SD Card slot (32Gmax) |
| Port(s) Out: | Video/ TV out | USB 2.0 |
| AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution: | 2592 x 1944 | 2112 x 1188 | 1538 x 864 | 640 x 480 |
| Video resolution: | VGA (640 x 480) |
| Shutter trigger position: | On LCD Screen |
| Software: | Internal Firmware built in |
| Microscope Dimensions: | 170mm x 140mm x 330mm (6.7" x 5.5" x 13") |
| Microscope Weight: | 56 oz (1600g) |
| Included Items: | 2GB SD Card | USB 2.0 Cable (data transfer) | 5 Prepared Slides | 4 plug, multi-country AC adapter | Dust Cover | Carrying Case |
