Elevate your microscopic exploration with the Celestron MicroDirect 1080p HD Handheld Digital Microscope, an innovative tool that offers an immersive viewing experience without the need for a computer. This digital microscope is ideal for a wide range of users including educators, students, forensic scientists, and hobbyists interested in the microscopic world. It provides a clear, true 1080p high-definition view, along with the capability to record still images and videos.
The MicroDirect 1080p HD Handheld Digital Microscope stands out with its ability to stream crystal-clear 1080p HD video directly to a TV monitor or projector through an included HDMI cable. It is designed to connect seamlessly to any compatible monitor or projector, allowing for real-time 1080p HD video streaming at magnifications up to 220x. This feature is particularly beneficial for viewing 3D specimens, samples, and even slides with exceptional clarity and detail.
Equipped with a 3.5MP high-speed sensor, this microscope excels in both high-definition streaming and still image and video recording. The sensor's larger pixel sizes capture more detail and offer a higher refresh rate, enhancing the overall viewing experience. Still images can be conveniently saved directly to a Micro SD card (not included) while streaming on a monitor. Additionally, the microscope can connect to a PC via USB, and with the downloadable Celestron Portable Capture HD software, it can record 720p High Definition video at 30 fps.

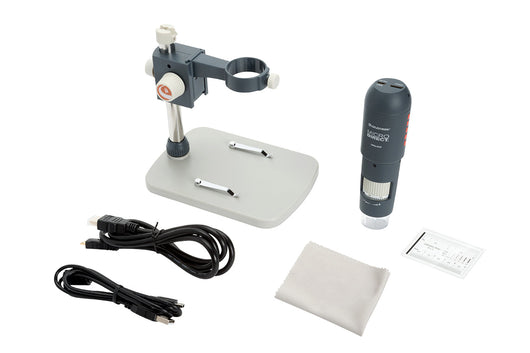

The microscope comes with a fully adjustable stand, allowing for precise and steady positioning to capture the perfect image or video. This feature-rich Celestron MicroDirect 1080p HD Handheld Digital Microscope is a valuable tool for anyone looking to delve deeper into the world of microscopy, whether in a classroom, laboratory, or at home.
Specifications
| Type of Microscope: |
Handheld Digital HD |
| Nosepiece: |
Clear plastic |
| Objective(s) Type: |
Single adjustable internal objective |
| Focus Type(s): |
Barrel focus: Course Focus | Fine Focus |
| Magnification Range: |
10x to 220x |
| Illumination Type: |
Ring Illuminator- 8 LED-Adjustable |
| Illumination Position(s): |
Upper- At Nose |
| Illumination Adjustability Mechanism: |
Adjustment Wheel- On barrel |
| Power Source: |
120V- USB 2.0 with micro USB Port at microscope (User supplied plug/adapter) |
| Eyepiece Type: |
CMOS Sensor in lieu of eyepiece |
| Sensor Size: |
3.5MP | 1/3" |
| Pixel Size: |
2.3 μm |
| Screen type: |
Monitor (HDMI) | PC Screen (USB 2.0) |
| Screen Size: |
Connects via HDMI to any monitor or projector or connect to computer (using screen) via USB 2.0 |
| Memory Type: |
Micro SD card slot (card not included) |
| Memory Size: |
Up to 32G |
| Port(s) In: |
Micro USB 2.0 (pwr) |
| Port(s) Out: |
Mini HDMI |
| Still image capture resolution: |
5120x720 (Interpolated) | 3849x2169 (Interpolated) | 3072x1728 (Interpolated) | 2304x1296 | 1920x1080 | WVGA |
| Video resolution: |
Streaming (via HDMI):1080p (1920 x 1080) | Recording (USB 2.0) 1280 x 720 (720p) @30fps/ 848 x 480 @ 30 fps/ 640 x 480 (Max frame rate 30fps) |
| Shutter trigger position: |
On body |
| Shutter Speed: |
1 sec. to 1/1000 sec. |
| Software: |
HDMI Direct connect: No Software needed | USB 2.0 PC connect: Celestron Portable Capture Pro HD |
| Software compatibility: |
Windows: 7.1/10/11 | Mac: Not Compatible |
| Microscope Dimensions: |
Microscope: 155.6mm x 38mm x 38mm (6.125" x 1.5" x 1.5") | Stand: 119mm x 171.4mm x 482.6mm ( 4.68" x 6.75" x 6.19") |
| Microscope Weight: |
1.3 lbs (590g) (including stand) |
| Included Items: |
Adjustable Stand | USB 2.0 cable | Calibration ruler | HDMI cable | Lens cloth | Quick Setup Guide |
