The Celestron RASA 11" Rowe-Ackermann Schmidt Astrograph V2 OTA revolutionizes deep-sky astroimaging, offering advanced features tailored for modern CCD and DSLR cameras. This 11-inch, fast, wide-field f/2.2 optical system utilizes rare-earth glass, eliminating false color, coma, and field curvature for pristine images.

Key Features:

Optimized Image Circle: With a large 43.3mm image circle, it ensures sharp stars across the field, even on large astroimaging sensors, extending up to 52mm for larger formats.
Ultra-Stable Focus System (USFS): Newly integrated USFS minimizes focus shift and mirror flop, enhancing image stability and clarity.
Advanced Cooling System: Features a high-output 12V MagLev fan with dust filters, ensuring rapid cooling and clean optics.
Versatile Camera Compatibility: Includes standard camera adapters (T-thread and M48) for easy attachment to popular CCD and DSLR cameras.

Ideal for Diverse Astroimaging Needs:

Wide-Field Imaging: Its 620mm focal length is perfect for capturing large sky areas, creating vast sky mosaics, or comet tracking.
High-Quality Optics: Four-element rare-earth glass delivers images free from chromatic aberrations, ensuring high-quality results.
Efficient Imaging: The fast f/2.2 system allows for shorter exposures, reducing the need for extended tracking and often eliminating the necessity for autoguiding.

Advanced Design for Peak Performance:

Minimized Vignetting: The optical design ensures minimal light fall-off at the edges.
Optimized for Modern Imaging: Engineered to perform seamlessly with today’s top imaging equipment, every component enhances the astroimaging experience.
Accessory Friendly: Dovetail CGE bars facilitate easy mounting of accessories like a guidescope.

Whether you're surveying the night sky, hunting comets, or capturing expansive celestial images, the Celestron RASA 11" V2 is a powerhouse, delivering unparalleled performance and versatility to astrophotographers and enthusiasts alike.

Specifications

OPTICAL TUBE INFO:
Optical Design:	Rowe-Ackermann Schmidt Astrograph
Aperture:	279mm (11")
Focal Length:	620mm (24.4")
Focal Ratio:	f/2.2
Central obstruction diameter:	114mm (4.48") (41% of aperture diameter)
Light Gathering Power (Compared to human eye):	1588x
Resolution (Rayleigh):	0.49 arc seconds
Resolution (Dawes):	0.41 arc seconds
Image Circle:	43.3mm (1.7") Ø , 4.0°
Useable field:	52mm (2.04") Ø , 4.8° only minimal performance loss at edge of FOV
Wavelength range:	400 - 700 nm
Spot size:	< 4.4 μm RMS across FOV
Optical Coatings:	StarBright XLT
Off-axis Illumination:	83% at 21mm (0.82") off-axis
Optical Window:	68mm (2.67") Ø
Back focus with included camera adapter:	55mm (2.16")
Back focus from top of threaded collar:	72.8mm (2.86")
Optical Tube:	Aluminum
Optical Tube Length:	838.2mm (33")
Optical Tube Diameter:	330.2mm (13")
Focuser:	Ultra-Stable Focus System
Finderscope:	Not included
Optical Tube Weight:	43 lbs (19.5 kg)
Other Features:	Ventilation fan, dual dovetail mounting bars

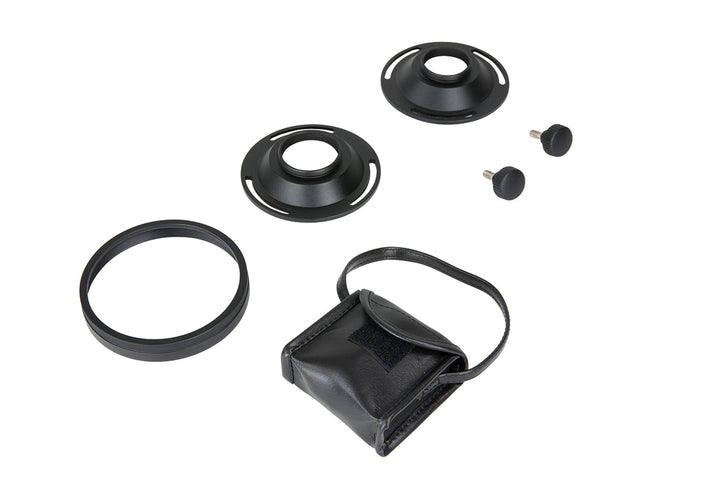

Included items:	42mm (1.65") T-thread camera adapter \| 48mm (1.89") camera adapter \| Dust cover \| Fan battery pack
Dovetail:	CGE Dovetail Bar
