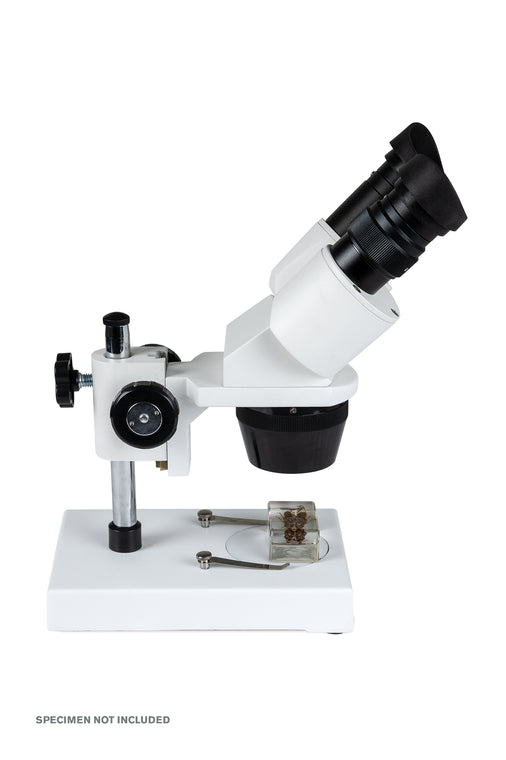

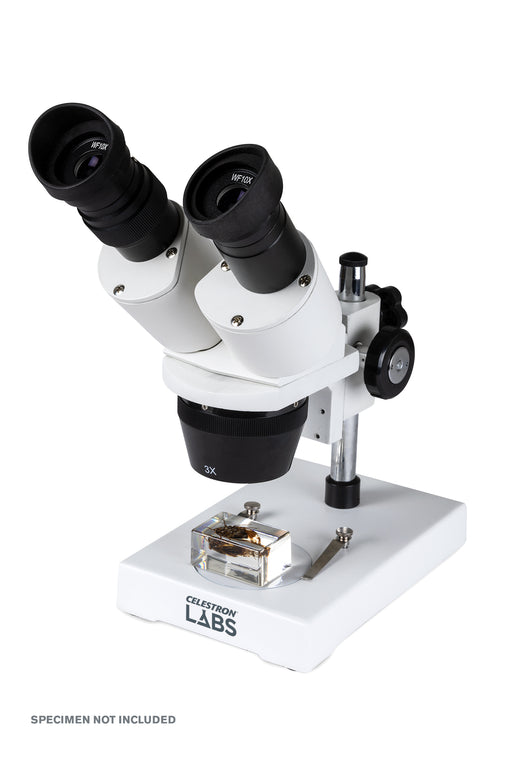

The Celestron Labs S10-30N Stereo Microscope offers an impressive magnification range of 10x to 30x, making it an ideal tool for examining a variety of specimens in 3D detail. This stereo microscope is perfect for inspecting insects, rocks, leaves, fossils, and other objects that benefit from low-power, three-dimensional observation.
Key Features:
-

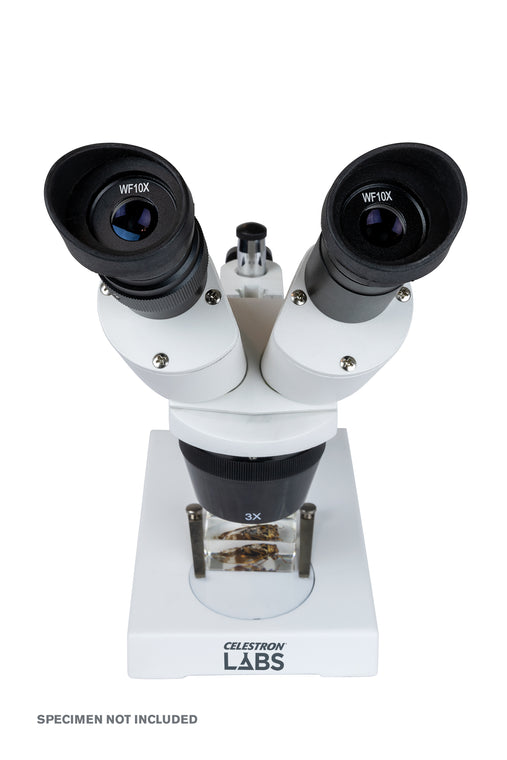

Versatile Magnification: Equipped with 10x eyepieces and two objective lenses (1x and 3x), it provides a flexible magnification range, allowing you to switch between 10x and 30x as needed.
-
Ergonomic Design: The angled binocular viewing head is designed for comfort, reducing neck strain during prolonged use.
-
Greenough Objective Design: This design, paired with natural light illumination, ensures clear and bright images of your specimens.
-
Cordless for Portability: The microscope's cordless design enhances its portability, making it easy to use in various settings, whether in a lab, classroom, or out in the field.
-

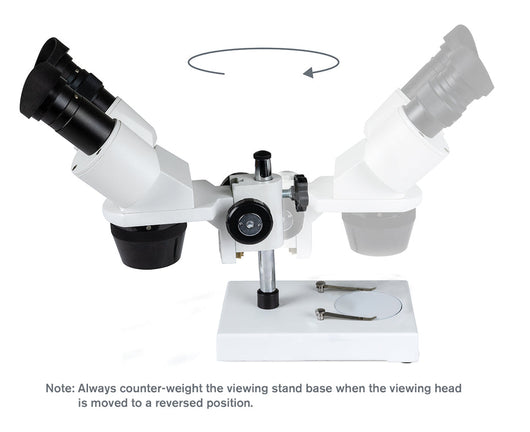

User-Friendly Focus Adjustment: Features a rack-and-pinion focus mechanism for precise focusing. The microscope head can slide vertically along the pillar stand to focus on larger samples, and it can rotate around the pillar for added versatility.
-

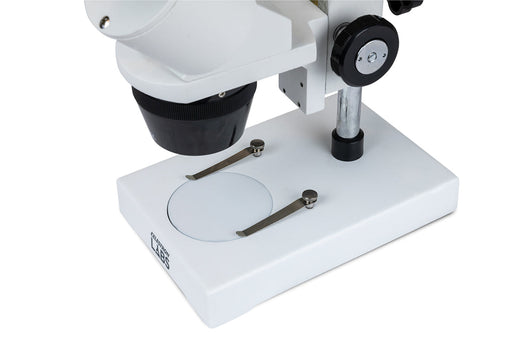

Accessories: Comes with a reversible black and white stage plate for contrasting backgrounds, enhancing the visibility of specimens. It also includes synthetic rubber eyecups to reduce ambient light interference and a dust cover for protection when not in use.
The Celestron Labs S10-30N Stereo Microscope is a robust and user-friendly instrument, ideal for both educational and hobbyist purposes. Its compact and lightweight design, combined with its practical features, makes it a valuable tool for hands-on learning and exploration in various environments.
Specifications
| GENERAL |
|
| Type of Microscope: |
Stereo |
| Head: |
Ergonomic binocular viewing head, inclined at 45° |
| Eyepiece(s) Magnification: |
(2) WF 10x |
| Eyepiece(s) Diameter: |
30.5mm (1.2") |
| Nosepiece: |
stereo, rotational |
| Objective(s) Type: |
Greenough |
| Objective(s) Standard: |
N/A |
| Objective(s) Magnification: |
1x / 3x |
| Objective(s) Thread: |
N/A |
| Focus Type(s): |
Rack and pinion, coarse focus only |
| Focus Travel (per rotation): |
40mm (1.57") |
| Magnification Range: |
10-30x |
| Illumination Type: |
Natural light |
| Illumination Position(s): |
N/A |
| Illumination Adjustability Mechanism: |
N/A |
| Power Source: |
None |
| Battery Option: |
None |
| Stage: |
60mm (2.36") diameter glass reversible black / white surface plate, stage clips |
| Condenser Type: |
None |
| Condenser N.A.: |
None |
| Stage Diaphragm: |
None |
| Included Items: |
(2) 10xWF eyepieces
(2) synthetic rubber eyecups
Small screwdriver for eyepiece security screws |
