| Magnification: |
20x |
| Objective Lens Diameter: |
80mm (3.15") |
| Focal Length of Objective Lens: |
329.15mm (12.96") |
| Angular Field of View: |
3.2° |
| Linear Field of View (@1000 yds) / @1000 m): |
168 ft (56 m) |
| Exit Pupil: |
4mm (.15") |
| Eye Relief: |
15.5mm (.61") |
| Close Focus: |
66.2 ft (20.2 m) |
| Interpupillary Distance (max): |
72mm (2.83") |
| Interpupillary Distance (min): |
56mm (2.20") |
| Diopter Adjustment Range: |
±4 |
| Twilight Factor |
40 |
| Relative Brightness: |
16 |
| Limiting Stellar Magnitude: |
Ideal: 12.02 | Moderate: 11.02 | Poor: 10.02 |
| Lens Coatings: |
Fully Multi-Coated - XLT Coatings |
| Prism Glass (Type): |
BaK-4 |
| Prism Coatings: |
N/A |
| Weight: |
86.4 oz (2449 g) |
| Environmental Protection: |
Waterproof |
| Nitrogen Filled: |
Yes |
| Tripod Adaptable: |
Yes |
| Carrying Case: |
Deluxe Nylon |
| Dimensions: |
330.2mm x 241.3mm x 101.6mm (13" x 9.5" x 4") |
| Included Items: |

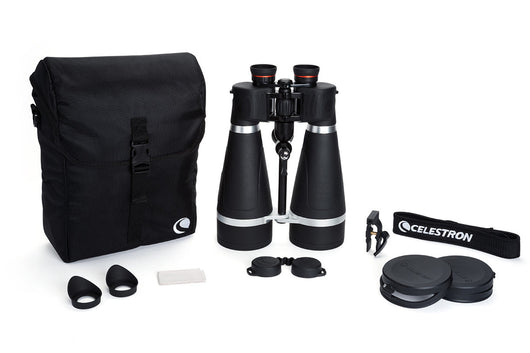

Reflex Sight Rail (RSR) Objective lens caps Interchangeable flared eyecups Rainguard Neck strap Lens cloth Instruction manual |
| Solar Warning |
- Never look directly at the Sun with the naked eye or with this optic. Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
|
