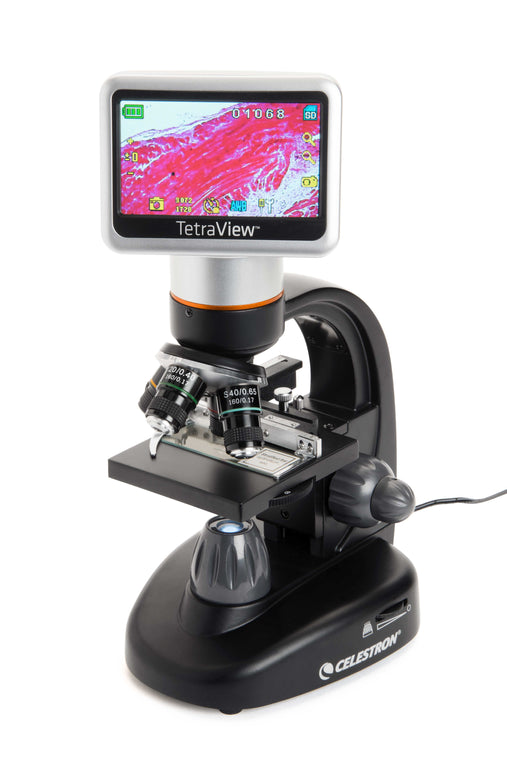

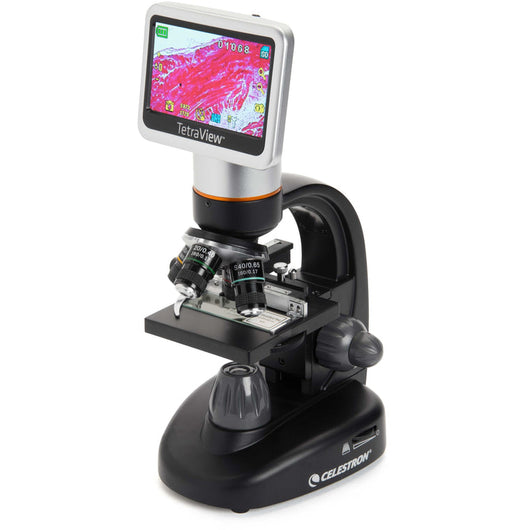

Celestron TetraView LCD Digital Touch Screen Microscope
The Celestron TetraView LCD Digital Microscope stands out in the world of professional microscopes with its advanced features and user-friendly design, all at an affordable price. It's an ideal tool for...
The Celestron TetraView LCD Digital Microscope stands out in the world of professional microscopes with its advanced features and user-friendly design, all at an affordable price. It's an ideal tool for both professionals and serious enthusiasts, perfect for use in labs, schools, or for scientific research.
Notable Features:
-
Magnification Range: Offers a versatile magnification range from 40x to 400x, expandable up to 1600x with digital zoom, catering to a variety of observation needs.
-
LCD Touchscreen Display: Features a 4.3" LCD touchscreen, providing a clear and interactive way to view specimens.
-
High-Resolution Camera: Equipped with a 5MP CMOS built-in digital camera, it captures high-quality images and videos of specimens.
-
Objective Lenses: Includes four fully achromatic objective lenses (4x, 10x, 20x, 40x), ensuring clear and accurate imaging.
-
Flexible Viewing Options: The LCD screen is rotatable up to 180°, making it easy to share observations with others. An AV/TV output allows for display on larger screens.
-

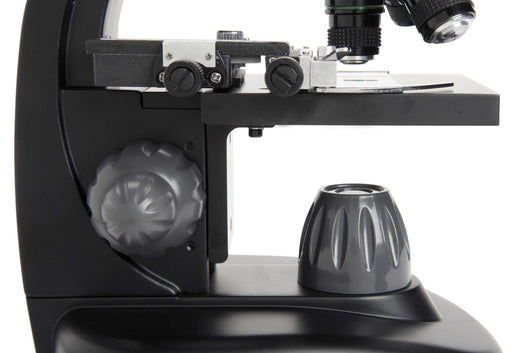

Mechanical Stage: A fully mechanical stage for precise slide manipulation.
-
Illumination and Focus: Adjustable LED bottom lighting and both coarse and fine focus knobs aid in detailed viewing.
-
Memory and Power: Comes with a 2GB SD card (expandable up to 32GB) for storage. Powered by an AC adapter or batteries (4AA) for portability.
-

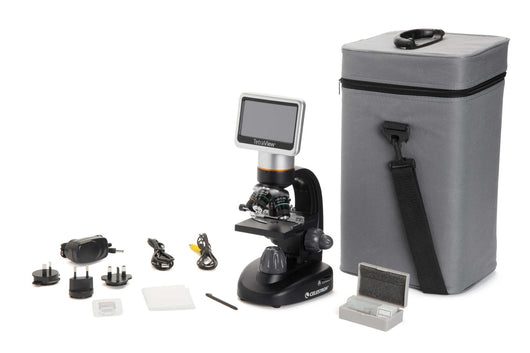

Additional Accessories: Includes 7 prepared slides, a hard carrying case, dust cover, touch pen, USB cable, and an AV out cable.
Whether you're a coin or stamp collector, a professional in a lab setting, or an avid hobbyist, the Celestron TetraView LCD Digital Microscope is a robust and versatile choice, designed to bring the microscopic world to life with ease and precision.
Specifications
| GENERAL | |
|---|---|
| Type of Microscope: | LCD Desktop |
| Head: | 180° rotatable head w/4.3" TFT LCD Screen |
| Nosepiece: | Quad with click stop |
| Objective(s) Type: | (4) Achromatic objectives on turret |
| Objective(s) Standard: | DIN 35 RMS |
| Objective(s) Magnification: | 4x, 10x, 20x, 40x |
| Objective(s) Thread: | WJ 4/5" x 1/36" |
| Focus Type(s): | Course Focus and Fine Focus |
| Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range: | 40x, 100x, 200x, 400x, Up to 1600x with digtial zoom |
| Illumination Type: | LEDs |
| Illumination Position(s): | TBD |
| Illumination Adjustability Mechanism: | Adjustable wheels at base |
| Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional) |
| Battery Options: | Yes (4AA) |
| Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") - With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures) |
| Condenser Type: | Aplantic |
| Condenser N.A.: | N.A. 65 |
| Stage Diaphragm: | Multiple on wheel |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
| Sensor Size: | 5MP - 1/2.5" |
| Pixel Size: | 2.2 μm |
| Screen type: | High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180° |
| Screen Size: | 4.3" |
| Memory Type: | SD Card |
| Memory Size: | 8G SD included, Supports up to 32G |
| Port(s) In: | AC Plug (power), SD Card slot (32Gmax) |
| Port(s) Out: | Video/ TV out, USB 2.0 |
| AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution: | 1920x1080 2048x1152 2560x1440 3072x1728 3648x2048 3072x1728 |
| Video resolution: | VGA (640 x 480) |
| Shutter trigger position: | On LCD Screen |
| Software: | Internal Firmware |
| Microscope Dimensions: | 78mm x 140mm x 330mm (7" x 5.5" x 13") |
| Microscope Weight: | 67 oz (1.9 kg) |
| Included Items: | 8GB SD Card USB 2.0 Cable (data transfer) 7 Prepared Slides 4 plug, multi-country AC adapter Dust Cover Carrying Case |
