| Magnification: |
10-30x |
| Objective Lens Diameter: |
50mm (1.96") |
| Angular Field of View: |
4.3° @10x / 2.2° @30x |
| Linear Field of View (@1000 yds) / @1000 m): |
225 ft (75 m) @ 10x / 115 ft (38 m) @ 30x |
| Exit Pupil: |
5mm (.19") @10x / 1.7mm (.06") @30x |
| Eye Relief: |
20mm (.78") @10x / 15mm (.59") @30x |
| Close Focus: |
26 ft (8 m) @10x / 45 ft (14 m) @30x |
| Interpupillary Distance (max): |
72mm (2.83") |
| Interpupillary Distance (min): |
56mm (2.20") |
| Diopter Adjustment Range: |
-4 to +8 |
| Twilight Factor: |
22.36 @10x / 38.73 @30x |
| Relative Brightness: |
25 @10x / 2.77 @30x |
| Limiting Stellar Magnitude: |
Ideal: 10.99
Moderate: 9.99
Poor: 8.99 |
| Lens Coatings: |
Multi-Coated |
| Prism Glass (Type): |
Bk7 |
| Prism Coatings: |
N/A |
| Weight: |
28 oz (794 g) |
| Environmental Protection: |
Water Resistant |
| Nitrogen Filled: |
No |
| Tripod Adaptable: |
Yes |
| Carrying Case: |
Soft Sided Cloth |
| Dimensions: |
185mm x 81mm x 160mm (7.3" x 3.2" x 6.3") |

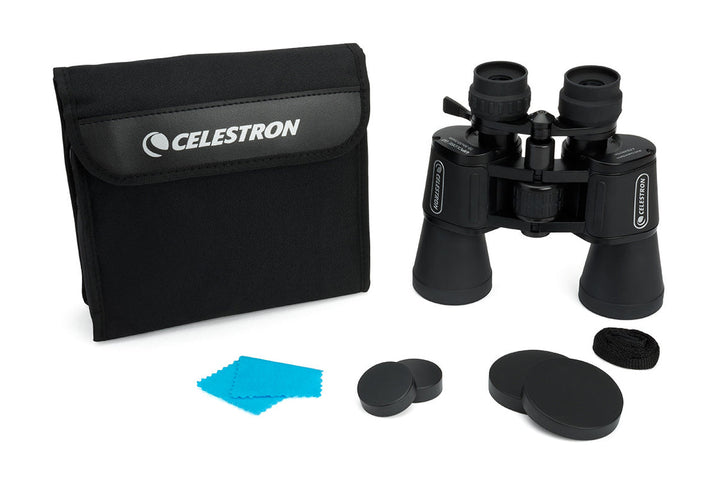

| Included Items: |
Carrying case
Objective covers
Eyepiece covers
Lens cloth
Instruction manual |
| Solar Warning |
- Never look directly at the Sun with the naked eye or with this optic. Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
|
