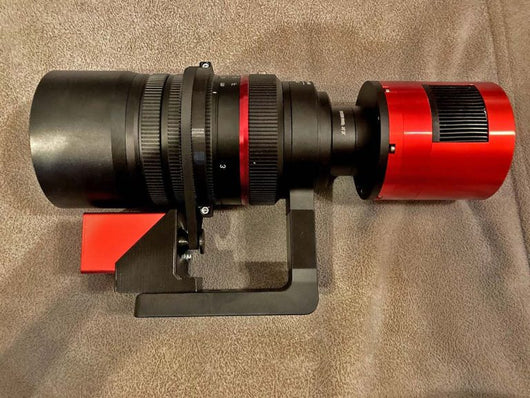

Deep Sky Dad Askar 200mm ZWO EAF Dovetail Kit: Precision Focusing for Astrophotography

Key Features:

• Astrophotography-Ready Lens: The Askar ACL200 lens is tailor-made for astrophotography, equipped with a Vixen style dovetail and a helical focuser for precise adjustments.

• Efficient Focusing Solution: The kit's dovetail mount streamlines the focusing process, a boon for astrophotographers, especially when using narrowband filters.

• Temperature Change Adaptability: Designed to automatically adjust focus in response to temperature fluctuations during the night, ensuring consistent image sharpness.

• Proven Mounting Principle: Utilizes the same effective principle as the popular WO RedCat autofocuser for reliable and efficient focusing.

• AF3s Autofocuser Dovetail Kit: Includes the AF3s autofocuser dovetail kit, enhancing the ease and precision of the focusing process.

• ASIAIR Compatibility: Features a specialized dovetail kit mounting solution specifically for the ZWO EAF autofocuser, catering to ASIAIR system users.

• Streamlined Astrophotography Setup: Designed to integrate seamlessly with astrophotography equipment, making the imaging process more efficient and enjoyable.

What's in the Box?

• 1x 3D printed mounting plate
• 1x 3D printed 16T MXL pulley
• 1x 3D printed helical focuser MXL ring
• 2x 3D printed mounting plate spacers for tension adjustment
• 1x MXL timing belt
• 2x 10mm M3 bolt (for ring)
• 2x 8mm M4 bolt (for attaching EAF to mounting plate)
• 2x 16mm M6 bolt (for attaching mounting plate to the dovetail)
• 1x 60mm M5 bolt (for attaching dovetail and extension block)
• 1x ALU extension block

Software and Docs

• assembly instructions
