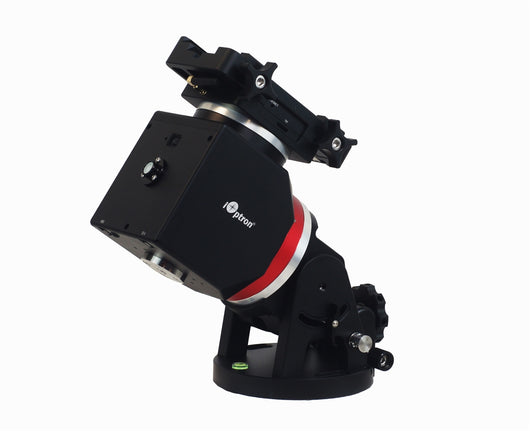

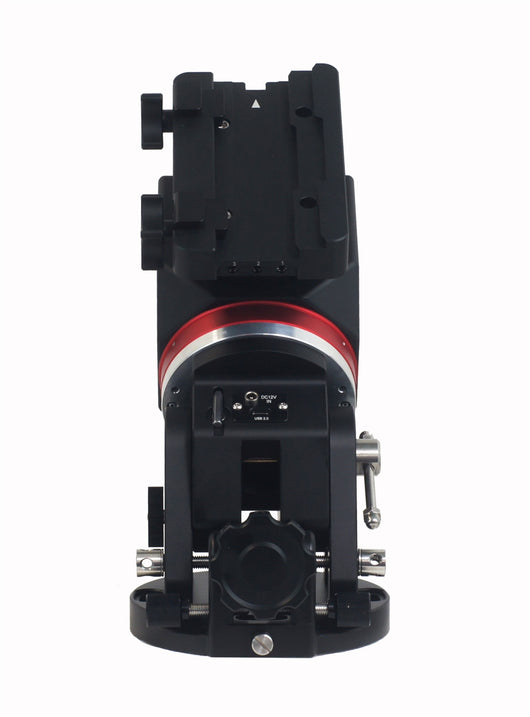

The iOptron HAE69 and HAE69EC SWG mounts have been upgraded to the next-gen HAE69B iMate mounts. These revamped models are your go-to for a streamlined, high-performance stargazing experience. Picture this: a mount head that's under 20 lbs but can carry a payload of 69 lbs—no counterweights or shaft needed. Thanks to iOptron's years of expertise in developing top-notch mounts, the HAE69 makes this a reality.

When it comes to gear tech, the HAE69 series uses advanced strain wave gear systems for both the RA and DEC axes, achieving an impressive weight-to-payload ratio. Built with a sleek, black anodized, all-metal CNC machined exterior, these mounts are as durable as they are good-looking. Plus, features like an electronic friction brake and power-down memory mean you can pick up right where you left off, even after unexpected power cuts.

The iMate models come with a built-in 64-bit ARM computer that has Wi-Fi and is loaded with KStars planetarium software, Ekos control tools, and INDI drivers. This allows you to hook up a variety of devices—be it cameras, focusers, or filter wheels—giving you the freedom to choose your preferred brands and models. Storage-wise, the iMate boasts 32Gb of eMMC storage and an additional slot for up to 64Gb TF (micro SD) cards, making automated imaging sessions a breeze.

Compatibility? You're covered. The iMate works with Windows, MacOS, Linux, iOS, and Android. Moreover, these dual SWG Alt-az/Eq mounts now come with an internal main board, eliminating the need for a separate handset and keeping cable drags at bay while in operation.

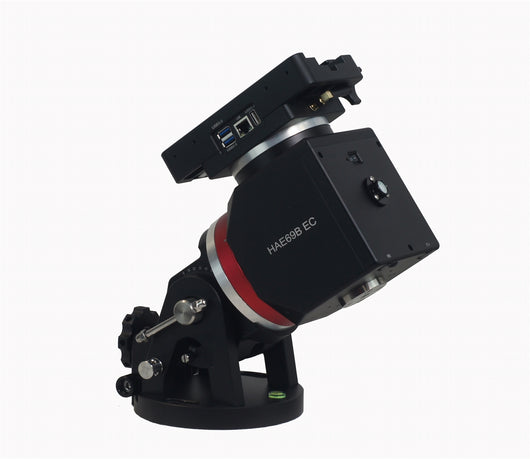

As for the HAE69BEC model, it comes with a high-precision RA axis encoder for next-level tracking accuracy, making autoguiding optional for many users.

Note: The actual product may vary from the pictures.

Features At-A-Glance

Cutting-edge strain wave gear tech
Payload capacity: 69 lbs; Mount weight: 19 lbs (with dovetail saddle)
PE < ± 15 arcsec
All-metal CNC machining
Electronic friction brake for planned or unexpected power outages
Gear period of 270 seconds
Onboard iMate computer with WiFi, pre-installed with KStars, Ekos, INDI driver, and iPolarServer
iMate comes with 3X 12V DC, 2X USB2.0, and 1X USB3.0 ports
No cable clutter
Go2Nova® handset with OLED for improved usability, especially in extreme temperatures (available for specific models)
Optional iPolar electronic polar scope
Dual saddle compatible with Vixen and Losmandy-D styles
Zero position locator and memory for power-down position
Built-in ST-4 autoguiding port
Firmware upgradable via USB
Aluminum carrying case included
Two-year warranty

Specifications

Mount	Strain Wave Altazimuth/Equatorial Mount
RA gear system	Strain Wave Gear
DEC gear system	Strain Wave Gear
Reduction ratio	RA 800:1, DEC 800:1
Payload w/o CW *	69 lbs (31 kg)
Mount weight	19.8 lbs (9 kg) with dovetail saddle
Payload with CW*	79 lbs ( 36kg)
Period	270 second
High precision encoder	Yes (RA)
PEC	Yes, Real time PEC
Azimuth adjustment range	± 8°
Latitude adjustment range	0°~ 90°
Drive motor	Stepper motor
Structure Material	All metal, CNC machined
Exterior finish	Anodized black
Polar Scope	iPolar electronic polar scope (optional)
Level indicator	Level bubble
Control system	GOTONOVA/Commander/iMate
Handset	Go2Nova® 8411 w/OLED display (optional)
Tracking	Automatic
Maximum slew speed	4.5º/sec
Power consumption	1A(Tracking), 1.6A(GOTO)
Power	DC12V-6A (5.5/2.1mm DC plug)
AC adapter	100V ~ 240V (included, indoor use only)
Power off brake	Electronic friction brake
Power-down memory	Yes
Built-in computer	Open Source Architecture iMate^TM with Wi-Fi, preloaded KStarts/Ekos and iPolarServer
Ports on iMate	1X USB3.0, 2X USB2.0, 3X DC 12V outputs
Communication port	Yes (iMate and USB)
Autoguide port	Yes (ST-4 compatible)
Firmware upgrade	Yes
Dovetail saddle	Vixen/Losmandy dual saddle
Mounting base diameter	152mm
Tripod	Optional
Counterweight Shaft	SS Φ20X200mm, 3/8"-16 thread (Optional)
Counterweight	10 lbs (4.5kg)(Optional)
Operation temperature	-20ºC ~ 40ºC
Warranty	Two year limited

* 250mm, with payload center of gravity to the RA rotation axis.
