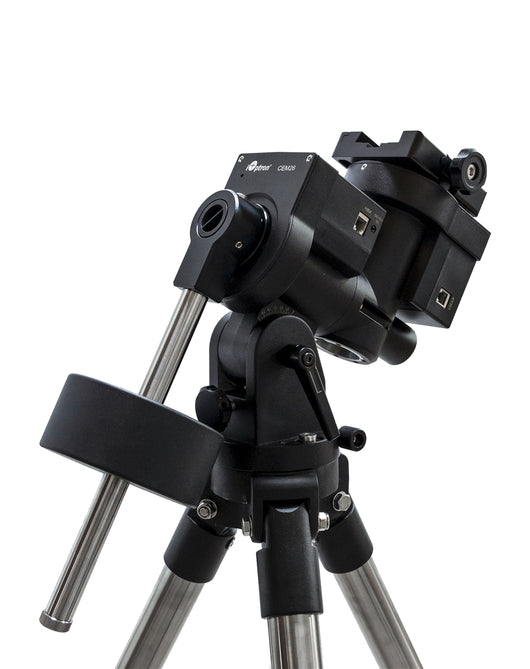

iOptron CEM26 with iPolar
Are you a passionate stargazer or an avid astrophotographer based in New York or anywhere in the world? Look no further than the iOptron CEM26 Equatorial Mount with iPolar - a...
Are you a passionate stargazer or an avid astrophotographer based in New York or anywhere in the world? Look no further than the iOptron CEM26 Equatorial Mount with iPolar - a precision-engineered marvel designed to elevate your astronomy and astrophotography experiences to new heights.
Specifications:
1. Mount Type: Equatorial
- The iOptron CEM26 is an advanced equatorial mount, ensuring precise tracking and alignment with celestial objects.
2. Payload Capacity: Up to 27 lbs (12.3 kg)
- This mount can effortlessly support a wide range of telescopes and camera setups, making it versatile for all your imaging needs.
3. GoTo System with iPolar Alignment:
- The iPolar technology simplifies polar alignment with its intuitive interface, enhancing your astrophotography accuracy.
4. Built-in WiFi:
- Seamlessly connect your mount to your smartphone or tablet for wireless control and data transfer.
5. Permanent Periodic Error Correction (PPEC):
- Enjoy smoother tracking and longer exposure times thanks to PPEC, which mitigates gear error.
6. Adjustable Counterweight Shaft:
- Customize the balance of your setup easily with the adjustable counterweight shaft, ensuring stability during long imaging sessions.
7. Multiple Tracking Rates:
- The CEM26 offers various tracking rates, including lunar, solar, and sidereal, providing precise tracking for different celestial objects.
8. Built-in GPS:
- The GPS module automatically determines your precise location and time, further simplifying setup and alignment.
9. Compact and Portable Design:
- Designed for astronomers on the move, the CEM26 is lightweight and compact, making it easy to transport to your favorite observing sites.
10. Sturdy Construction: - Crafted with durability in mind, this mount features robust materials and construction, ensuring reliability for years to come.
11. Dual Saddle Plate: - Accommodate both Vixen and Losmandy-style dovetails with the dual saddle plate, offering compatibility with a wide range of accessories.
12. 12V DC Power Supply: - The included power supply ensures uninterrupted operation in the field, so you can capture stunning images without worry.
Elevate your astronomy and astrophotography game with the iOptron CEM26 Equatorial Mount with iPolar. Its cutting-edge features, exceptional payload capacity, and user-friendly design make it the ideal choice for both amateur and professional astronomers. Whether you're in the heart of New York City or under the pristine dark skies of remote locations, this mount will help you unlock the secrets of the universe, one breathtaking image at a time. Get ready to explore the cosmos like never before!
Specifications
| Mount | Center-Balanced Equatorial Mount |
| Payload * | 26 lbs (12kg), exclude counterweight |
| Mount weight | 10 lbs (4.5kg) |
| Payload/Mount weight | 2.60 |
| Structure Material | All metal, Casting + CNC machined |
| Exterior Finish | Powder coating |
| Periodic error (PE) ** | <±12 arcsec |
| PEC | Yes, Permanent PEC |
| Worm period | 600 sec |
| Right Ascension worm wheel | Φ88mm, 144 teeth aluminum |
| Declination worm wheel | Φ88mm, 144 teeth aluminum |
| Right Ascension axis shaft | Φ35mm steel |
| Declination axis shaft | Φ35mm steel |
| Right Ascension bearing | Φ55mm ball bearing |
| Declination bearing | Φ55mm ball bearing |
| Worm gears | Φ15.2mm, Brass |
| Motor drive | 1.8º stepper motor, 128X microdivision |
| Resolution | 0.17 arc seconds |
| Transmission | Synchronous belt |
| Latitude adjustment range*** | 0º ~ 60º |
| Azimuth adjustment range | ± 6º |
| Polar Scope | iPolar TM electronic polar scope |
| Level indicator | Level bubble |
| Hand Controller | Go2Nova® 8409 with ~212,000 objects database |
| Tracking | Automatic |
| Slew speed | 1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec) |
| Power consumption | 0.5A(Tracking), 0.8A(GOTO) |
| Power requiremention | 12V DC, 5A |
| AC adapter | 100V ~ 240V (included, indoor use only) |
| Power-down memory | Yes |
| Wi-Fi | Built-in |
| Communication port | Yes (Wi-Fi and USB) |
| Autoguide port | Yes (ST-4 compatible) |
| Firmware upgrade | Yes |
| PC computer control | Yes (ASCOM) |
| Counterweight shaft | Φ20X200mm with a 120mm extension (M16, SS) |
| Counterweight | 10 lbs (4.5kg) |
| Tripod | 1.5" Stainless Steel (5kg) |
| Dovetail saddle | 3.8" Vixen-style, center adjustable |
| GPS | Optional external 32-channel GPS |
| Autoguiding | Optional external iGuider 1 |
| Operation temperature | -10ºC ~ 40ºC |
| Warranty | Two year limited |
* OTA size and length dependent, smaller than 6" in diameter recommended
** Measured with encoder on bench, 10 minutes
***Optional low latitude adapter and/or small diameter CWs are needed when latitude <10º
