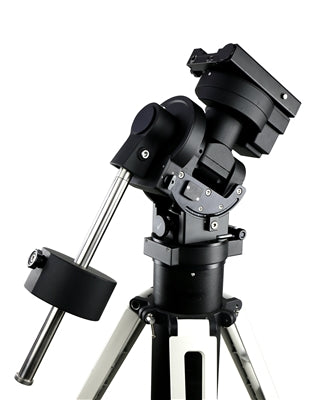

iOptron CEM70 w/ iPolar/iGuider
Hot on the heels of our game-changing iOptron CEM60 mount, we're stoked to roll out the CEM70 and its next-level sibling, the CEM70G. These bad boys are set to redefine...
Hot on the heels of our game-changing iOptron CEM60 mount, we're stoked to roll out the CEM70 and its next-level sibling, the CEM70G. These bad boys are set to redefine what you can expect from a 70lb payload equatorial mount. While both are decked out with high-end features, the CEM70G takes it up a notch with its groundbreaking onboard optical guiding system—boosting tracking accuracy and making your setup more portable than ever.
Still loyal to the core concept of center balance, these mounts are your go-to choice for stellar performance in a convenient, portable package. Expect laser-sharp GOTO pointing and on-point tracking with a periodic error (PE) of less than ±5 arcsec. Whether you're into star-gazing or capturing the cosmos through a lens, these mounts got you covered.
And let's talk user-friendly features. From an integrated iPolar electronic polar scope to gear clutches that you can easily lock—even with gloves on. The advanced cable management system sorts out not just the mount but also your iPolar, guider, and camera cables. Oh, and did we mention? The CEM70G comes WiFi and USB 3.0-ready right out of the box.
So what's in the CEM70G package, you ask? You'll find an iPolar electronic polar scope, iGuider onboard autoguiding camera, and a durable hard case.
Feature Highlights:
- Redesigned center-balanced equatorial mount (CEM) for an unmatched payload-stability ratio.
- Perfect for both visual astronomy buffs and astrophotography pros.
- A payload capacity of 70 lbs (31.8 kg) while weighing in at just 30 lbs (13.6 kg) itself.
- Gear clutches that are a breeze to use.
- Altitude and azimuth adjustments you can count on.
- Stepper motor delivering a killer 0.07 arcsec accuracy for GOTO and tracking.
- iPolar electronic polar scope with built-in heater.
- Go2Nova 8410 controller integrated with advanced GOTONOVA GOTO tech.
- Low periodic error (PE) of less than ±5 arcsec with permanent correction.
- Onboard iGuider autoguiding system.
- 32-channel GPS for pinpoint accuracy.
- WiFi and USB 3.0 connectivity.
- Multiple options for cable management.
- Comes with an 8" Vixen/Losmandy dual saddle that's spring-loaded.
- Bonus: iOptron-subsidized TheSky Imaging Edition software.
Package Deets:
- Box 1: #C702AG
- One CEM70G mount head safely housed in a hard case, plus some cool accessories.
- Box 2: #7226
- A 9.5kg counterweight to keep things balanced.
There you have it—everything you need to know about the latest and greatest from iOptron!
Specifications
| Mount | Center-balanced Equatorial Mount (CEM) |
| Payload* | 31.8kg (70 lbs), exclude counterweight |
| Mount weight | 13.6kg (30 lbs) |
| Payload/Mount weight ratio | 2.33 |
| Material | All metal |
| Latitude adjustment range | 0°~ 65° |
| Azimuth adjustment range | ± 4° |
| PE (by encoder)** | < ±5 arcsec |
| Worm period | 348 sec |
| PEC | PPEC |
| Right Ascension worm wheel | Φ151mm, 248 teeth |
| Declination worm wheel | Φ151mm, 248 teeth |
| Worm | Φ21.2mm |
| Right Ascension axle | Φ55mm, steel |
| Declination axle | Φ55mm, steel |
| Right Ascension bearings | Φ80mm |
| Declination bearings | Φ80mm |
| Counterweight shaft | Φ28x 415 mm (SS, 1.9kg) |
| Counterweight | 9.5 kg (20 lbs) x1 |
| Mount base size | Φ152mm |
| Motor drive | Precision stepper motor w/128 micro-step |
| Resolution | 0.07 arc seconds |
| Slew speed | 3.75°/sec (900x) max. |
| Hand Controller | Go2Nova® 8410, 8 line 21 character LCD |
| Power requirement*** | DC 12V, 5A (5.5mm/2.5mm plug) |
| Power consumption | 0.6A(Tracking),0.8A(GOTO) |
| Polar Scope | Internal electronic polar scope, iPolar |
| Meridian treatment | Stop (0-10° pass), auto flip |
| Zero position | Automatic zero search |
| Park position | Horizontal, vertical, current, alt/azi input |
| Level indicator | YES |
| Dovetail saddle | 8" Losmandy D & Vixen |
| GPS | YES |
| Guiding port | ST-4 |
| Communication port | USB3.0, Wifi |
| Cable management | 2xDC12V (3A), 3xUSB3.0, 1xDC in/2xDC out, iPort. 1X USB input for mount, iGuider, iPolar and more |
| Guiding scope/camera | Built in guiding scope and camera, iGuider |
| Operation temperature range | -10°C ~ +40°C |
| Hard case | YES |
| Pier/Tripod | Optional LiteRoc tripod (8023ACC) or pier |
| Warranty | Two year limited |
* OTA size and length dependent.
** Measured with encoder on the bench, 348 seconds
*** Included AC adapter is for indoor use only
