iOptron CEM70EC-NUC
Unveiling the iOptron CEM70EC-NUC: An Equatorial Mount Reimagined! Sick of messy cables and compatibility issues with third-party controllers? Say hello to iOptron's NUC-ready mounts! The CEM70EC-NUC seamlessly integrates with Intel®...
Unveiling the iOptron CEM70EC-NUC: An Equatorial Mount Reimagined!

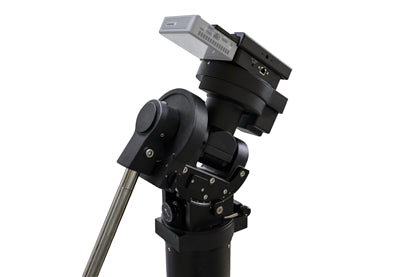

Sick of messy cables and compatibility issues with third-party controllers? Say hello to iOptron's NUC-ready mounts! The CEM70EC-NUC seamlessly integrates with Intel® NUC mini PCs (up to 38mm thick) right at the front dovetail saddle—complete with a well-thought-out cable management system.
(Tap Here for More Info)
Building on the popularity of the iOptron CEM60, we're pumped to roll out two next-gen, medium payload, center-balanced equatorial mounts: Meet the CEM70 and its sibling, the CEM70G. These champs are setting the new standard in the 70lb payload category. While both are loaded with cutting-edge features, the CEM70G takes it up a notch with an integrated optical guiding system, enhancing tracking accuracy and simplifying your setup.
Maintaining the benefits of the center-balanced design, these medium payload mounts deliver exactly what you'd want—accuracy and portability. Whether you're into observing or imaging, the CEM70EC won't let you down.
Get excited for features like an internal iPolar electronic polar scope, large gear-lock levers that even work with gloves, and a comprehensive cable management system. All in all, the CEM70 series is crafted to suit your needs.
Why You'll Love It
- Freshly-designed center-balanced equatorial mount (CEM), providing the best payload-to-stability ratio
- Perfect for both star-gazing and capturing those celestial moments
- Carries up to 70 lbs (31.8 kg), while weighing just 30 lbs (13.6 kg) itself
- User-friendly and dependable gear clutches
- Fine-tuned altitude and azimuth adjustments
- Ultra-accurate stepper motor boasting 0.07 arcsec precision for pinpoint GOTO and reliable tracking
- Built-in iPolarTM electronic polar scope
- Features Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Tech and a built-in heater
- Low periodic error (PE<0.3 arcsec rms) and real-time periodic error correction (RPEC)
- 32-channel GPS built-in
- USB connectivity
- ST-4 autoguiding port included
- Nifty cable management features, compatible with NUC
- 8" dual Vixen/Losmandy saddle that's NUC-mount ready
- NEW: iOptron-subsidized TheSky Imaging Edition software
What's in the Box?
-
Box 1 of 2 (Product Code: #C704AN0)
- 1x CEM70EC-NUC mount head in a sturdy hard case, along with accessories
-
Box 2 of 2 (Product Code: #7226)
- 1x 9.5kg counterweight
So, ready to elevate your sky-gazing game?
Specifications
| Mount | Center-balanced Equatorial Mount (CEM) |
| Payload* | 31.8kg (70 lbs), exclude counterweight |
| Mount weight | 13.6kg (30 lbs) |
| Payload/Mount weight ratio | 2.33 |
| Material | All metal |
| Latitude adjustment range | 0°~ 65° |
| Azimuth adjustment range | ± 4° |
| PE (by encoder)** | < 0.3 arcsec rms |
| Worm period | 348 sec |
| PEC | Realtime PEC (RPEC) |
| Right Ascension worm wheel | Φ151mm, 248 teeth |
| Declination worm wheel | Φ151mm, 248 teeth |
| Worm | Φ21.2mm |
| Right Ascension axle | Φ55mm, steel |
| Declination axle | Φ55mm, steel |
| Right Ascension bearings | Φ80mm |
| Declination bearings | Φ80mm |
| Counterweight shaft | Φ28x 415 mm (SS, 1.9kg) |
| Counterweight | 9.5 kg (20 lbs) x1 |
| Mount base size | Φ152mm |
| Motor drive | Precision stepper motor w/128 micro-step |
| Resolution | 0.07 arc seconds |
| Slew speed | 3.75°/sec (900x) max. |
| Hand Controller | Go2Nova® 8410, 8 line 21 character LCD |
| Power requirement*** | DC 12V, 5A (5.5mm/2.5mm plug) |
| Power consumption | 0.6A(Tracking),0.8A(GOTO) |
| Polar Scope | Internal electronic polar scope, iPolar |
| Meridian treatment | Stop (0-10° pass), auto flip |
| Zero position | Automatic zero search |
| Park position | Horizontal, vertical, current, alt/azi input |
| Level indicator | YES |
| Dovetail saddle | 8" Losmandy D & Vixen |
| GPS | YES |
| Guiding port | ST-4 |
| Communication port | USB2.0 |

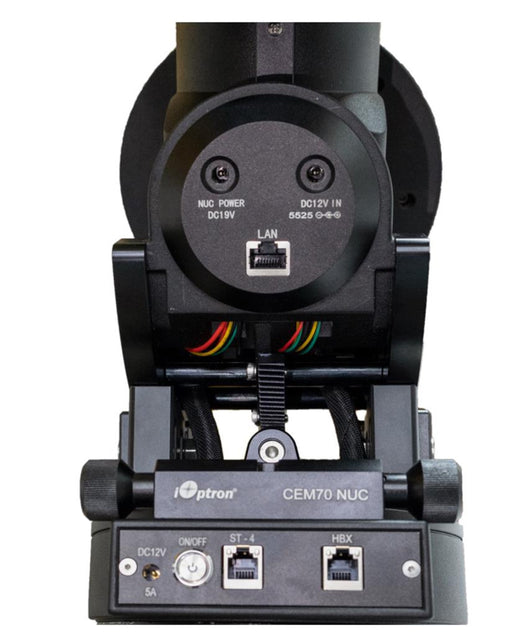

| Cable management | DC12V (3A),DC (5A), GUIDE,USB For NUC: DC 19V, LAN and USB |
| Operation temperature range | -10°C ~ +40°C |
| Hard case | YES |
| Pier/Tripod | Optional LiteRoc tripod (8023ACC) or pier |
| Warranty | Two year limited |
* OTA size and length dependent.
** Measured with encoder on the bench, 348 seconds
*** Included AC adapter is for indoor use only
