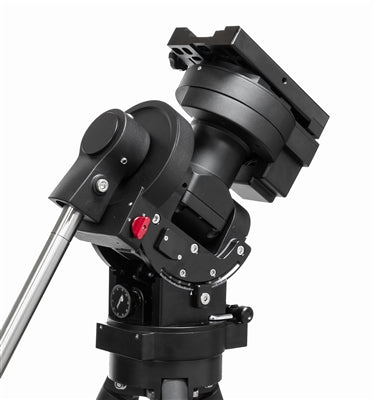

Hey folks, guess what? Building on the rockstar reputation of the iOptron CEM60, we're jazzed to roll out the next-gen medium payload champ, the CEM70EC2W. Why should you care? Because this beast is the first of its kind to boast dual axes high-res encoders, upping your tracking game while making your setup way more portable.
We've kept all the good stuff that comes with a center-balanced equatorial mount, which means this beauty still packs a punch when it comes to efficiency, accuracy, and portability. It's your go-to buddy whether you're eyeballing the skies or capturing breathtaking astro shots.
Peek under the hood and you'll find some awesome perks. We're talking about a built-in iPolar electronic polar scope, gear levers so easy to use you can handle 'em with gloves on, and a snazzy cable management system that covers your mount, iPolar, guider, and camera. Yeah, we thought of everything.
Sweet Deets:
-
Next-Gen CEM Design: Center-balanced and rock solid, perfect for payloads up to 70 lbs and naturally stable.
-
Universal Appeal: Stellar for visual peeping or astro photography.
-
Specs Alert: Mount weighs 30 lbs, can carry a payload of 70 lbs.
-
User-Friendly Gear Clutches: Super easy to engage.
-
Fine-Tuned Adjustments: Precision altitude and azimuth, because details matter.
-
Motor Power: Stepper motor with insane 0.07 arcsec accuracy for spot-on GOTO and tracking.
-
Cool Tech: Built-in iPolar electronic polar scope, and Go2Nova® 8410 controller with toasty built-in heater.
-
Track Star: Low periodic error (<0.3 arcsec rms) and dual axes real-time periodic error correction (RPEC).
-
GPS Goodness: 32-channel Global Positioning System, 'cause why not?
-
Connectivity: USB3.0 port and an integrated ST-4 autoguiding port.
-
Cable Bliss: Advanced management with a bunch of options.
-
Hold My Gear: Spring-loaded 8" Vixen/Losmandy dual saddle.
-
Bonus Software: New iOptron-subsidized TheSky Imaging Edition, sweet!
What's in the Box:
Box 1 (Part #C706AW):
- 1x CEM70EC2 mount head all snug in a hard case with some awesome accessories.
Box 2 (Part #7226):
- 1x 9.5kg counterweight to keep things balanced.
So, what are you waiting for? The CEM70EC2W is a game changer. Let's go capture some stars!
Specifications
| Mount | Center-balanced Equatorial Mount (CEM) |
| Payload* | 31.8kg (70 lbs), exclude counterweight |
| Mount weight | 13.6kg (30 lbs) |
| Payload/Mount weight ratio | 2.33 |
| Material | All metal |
| Latitude adjustment range | 0°~ 65° |
| Azimuth adjustment range | ± 4° |
| PE (by encoders)** | < 0.3 arcsec rms** |
| Worm period | 348 sec |
| PEC | Real-time PEC(RPEC) |
| Right Ascension worm wheel | Φ151mm, 248 teeth |
| Declination worm wheel | Φ151mm, 248 teeth |
| Worm | Φ21.2mm |
| Right Ascension axle | Φ55mm, steel |
| Declination axle | Φ55mm, steel |
| Right Ascension bearings | Φ80mm |
| Declination bearings | Φ80mm |
| Counterweight shaft | Φ28x 415 mm (SS, 1.9kg) |
| Counterweight | 9.5 kg (20 lbs) x1 |
| Mount base size | Φ152mm |
| Motor drive | Precision stepper motor w/128 micro-step |
| Resolution | 0.07 arc seconds |
| Slew speed | 3.75°/sec (900x) max. |
| Hand Controller | Go2Nova® 8410, 8 line 21 character LCD |
| Power requirement*** | DC 12V, 5A (5.5mm/2.5mm plug) |
| Power consumption | 0.6A(Tracking),0.8A(GOTO) |
| Polar Scope | Internal electronic polar scope, iPolar |
| Meridian treatment | Stop (0-10° pass), auto flip |
| Zero position | Automatic zero search |
| Park position | Horizontal, vertical, current, alt/azi input |
| Level indicator | YES |
| Dovetail saddle | 8" Losmandy D & Vixen |
| GPS | YES |
| Guiding port | ST-4 |
| Communication port | USB3.0, WiFi |
| Cable management | 1xDC12V (3A), 3xUSB3.0, 1xDC in/2xDC out, iPort. 1X USB input for mount, Guider, iPolar and more |
| Operation temperature range | -10°C ~ +40°C |
| Hard case | Yes |
| Pier/Tripod | Optional LiteRoc tripod (8023ACC) or pier |
| Warranty | Two year limited |
* OTA size and length dependent.
** Measured with encoder on the bench, 348 seconds
*** Included AC adapter is for indoor use only
