iOptron 2.5kg Counterweight
This counterweight weighs in at 2.5 kg (or 5.5 lbs) and is tailored for several iOptron mounts, including: CEM70, CEM70EC, CEM70G CEM60, CEM60EC GEM45, GEM45EC, GEM40G CEM40, CEM40EC, CEM40G (Note: This...
Description

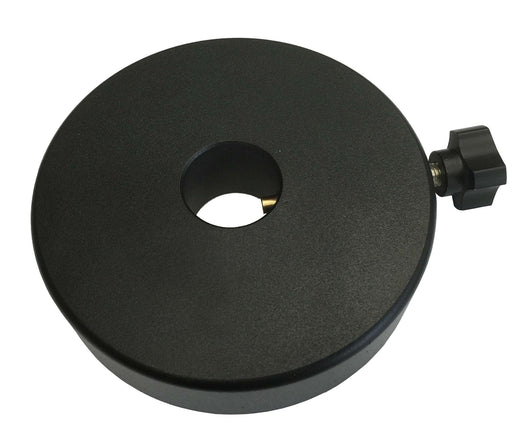

This counterweight weighs in at 2.5 kg (or 5.5 lbs) and is tailored for several iOptron mounts, including:
- CEM70, CEM70EC, CEM70G
- CEM60, CEM60EC
- GEM45, GEM45EC, GEM40G
- CEM40, CEM40EC, CEM40G (Note: This is for later versions with a 28mm CW shaft)
- iEQ45 Pro
- iEQ45
If you've got a CEM40, double-check the diameter of your counterweight (CW) shaft to make sure it's 28mm before you place an order.
Oh, and by the way, you can also use this counterweight with other mounts that have a 28mm diameter CW shaft.
Specifications
| Weight: | 2.5 kg (5.5 lbs.) |
| Outer diameter: | 118 mm (4.6 in.) |
| Inner diameter: | 28.5 mm (1.12 in.) |
| Height: | 25 mm (1 in.) |
| Locking mechanism: | Locking screw with pin |
| Locking screw thread size: | M8 |
Actual dimension, except inner diameter, may be different.
iOptron 2.5kg Counterweight
$55.00
