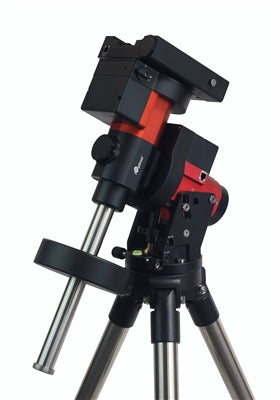

The iOptron GEM45 German equatorial mount melds fresh, innovative features with a classic design. Its sleek CNC-machined body isn't just for show—it's a testament to both the form and function of this high-quality mount.

Drawing from the know-how gained while developing our CEM series, we've optimized the GEM45 to eliminate extra bulk, resulting in an impressive payload-to-weight ratio of 2.5. This means the mount, weighing in at just 17.5 pounds, can handle up to 45 pounds of gear while executing precise GOTO and tracking functions. Polar alignment is hassle-free with the built-in iPolar electronic polar scope, even if the North Star is hidden from view. And you won't have to worry about fumbling with gear clutches; the GEM45 comes with large quick-lock levers that are a breeze to use, even when you're wearing gloves.

Cable entanglement? Not a problem. The GEM45 has an internal cable management system that keeps things tidy. It also features a 6-inch dual dovetail saddle compatible with both Losmandy and Vixen plates. The mount employs dependable stepper motors that are energy-efficient. And it stands on our newly designed LiteRoc 1.75" tripod, offering enhanced stability without the extra weight. Out-of-the-box, you'll get a mount with GPS, a 212,000+ object library, and even optional Wi-Fi capabilities via the iStarFi adapter.

Key Features:

German equatorial design enhanced with modern innovations
Perfect for both stargazing and astrophotography
A 45-pound payload capacity while weighing only 17.5 pounds
User-friendly quick-lock clutches
Built-in iPolar electronic polar scope for easy alignment
Low periodic error (< ±7.5 arc seconds) with PPEC
Precision stepper motors for accurate GOTO and tracking
Go2Nova hand controller with Advanced GOTONOVA GOTO tech and an integrated heater
ST-4 autoguiding port
32-channel GPS
USB port for easy connectivity
Cable management built-in
Compatible with 6" Losmandy-D & Vixen dovetail plates
Constructed from CNC-machined metal, anodized in red and black
Optional Wi-Fi control through smartphones/tablets/computers
New LiteRoc 1.75" tripod featuring enhanced stability and improved leg locks
Includes iOptron's TheSky Imaging Edition software

What You'll Get in the Box:

iOptron GEM45 mount (#7620A, with black gear switches)
Go2Nova Hand Controller
A 11-pound counterweight
Stainless steel counterweight shaft
Internal iPolar electronic polar scope
GPS module
Universal AC adapter (100V-240V)
Two coiled 6P6C RJ11 to RJ11 control cables
USB cable
LiteRoc 1.75" tripod
A sturdy hard case
Quick Start Guide

So there you have it. The iOptron GEM45 offers a solid blend of traditional design and cutting-edge features, all while giving you a lot of bang for your buck.

Specifications

Mount	German Equatorial Mount
Max payload*	45 lbs (20 kg), exclude counterweight
Mount weight	17.5 lbs (7.9 kg)
Payload/Mount weight	2.53
Structure Material	All metal, CNC machined
Exterior Finish	Anodized red/black
Latitude adjustment range	14º ~ 68º
Azimuth adjustment range	± 6º
Tracking accuracy (PE)**	<±7.5 arcsec
PEC	PPEC
Period	400 sec
Worm diameter	Φ17mm, Brass
Right Ascension worm wheel	Φ110mm, 216 teeth, zero backlash
Declination worm wheel	Φ110mm, 216 teeth, zero backlash
Right Ascension axis shaft	Φ45mm steel
Declination axis shaft	Φ45mm steel
Right Ascension bearings	Φ68mm
Declination bearings	Φ68mm
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11lbs (5kg) X1
Motor	Precision stepper motor, 1.8º/128X micro-step
Motor resolution	0.08 arcsec (200 PPS)
Transmission	Synchronous belt
Hand Controller	Go2Nova® HC, 8 line 21 character LCD
Star Database	212,000+, star identification
Power	DC 12V, 5A (5.5mm/2.5mm plug)
AC adapter	100V ~ 240V (included)
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power-down memory	Yes
Polar scope	Internal iPolar ^TM electronic polar scope
Meridian treatment	Stop (0-20° pass), flip
Zero position	Automatic zero search
Dovetail saddle	6" Losmandy-D & Vixe dual saddle
Max slew speed	4.5°/sec (1080X)
Guiding port	ST-4
Communication port	USB
GPS	Yes
WiFi	External (optional)
Cable Management	DC12V (3A), ST4,USB
Tripod	1.75" Stainless Steel(~8kg), or optional Tri-pier
Hard case	Included
Operation temperature	-10ºC ~ 40ºC
Warranty	Two year limited

* OTA size and length dependent
** Measured with encoder on the bench, 400 seconds
