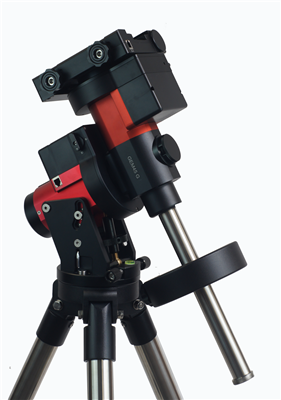

iOptron GEM45 with iGuider
The iOptron GEM45 takes German equatorial mounts to the next level by combining cutting-edge features with a proven design. One look at its sleek CNC-machined body and you know this...
The iOptron GEM45 takes German equatorial mounts to the next level by combining cutting-edge features with a proven design. One look at its sleek CNC-machined body and you know this mount means business.
Drawing from the knowledge gained through our CEM series, we've streamlined the GEM45 to achieve an impressive 2.5 payload-to-weight ratio. Weighing just 17.5 pounds, this compact powerhouse can precisely navigate and track up to 45 pounds of equipment. The built-in iPolar electronic polar scope simplifies the polar alignment process, even if you can't see the North Star. Thanks to large, easy-to-use levers on the quick-lock drive system, engaging the gears is a breeze, even with gloves on. And don't worry about tangled cables; the mount's advanced internal cable management keeps everything neat and tidy. A 6-inch dual saddle fits both Losmandy and Vixen style dovetail plates. Plus, the mount employs dependable stepper motors and energy-efficient tech. The included LiteRoc 1.75" tripod offers stability without the bulk. Standard features include a 212,000+ object library with star identification, GPS, and optional Wi-Fi capability through the iStarFi adapter.
The GEM45G model ups the ante with its onboard iGuider system, which includes a 30mm f4 lens and a 1/3-inch imaging sensor with 3.75um pixels, all neatly integrated into the mount's dovetail saddle. The iPolar, iGuider, and an extra USB port all run through a single USB connection for convenience.
Features:
- German equatorial mount packed with cutting-edge tech
- Suited for both stargazing and astrophotography
- Supports 45-pound gear while weighing just 17.5 pounds
- Quick-lock gear clutches for easy engagement
- iPolar electronic polar scope for simple alignment
- Low periodic error (< ±7.5 arc seconds) and PPEC
- Precise stepper motor for reliable GOTO and tracking
- Go2Nova hand controller with Advanced GOTONOVA GOTO Tech and a built-in heater
- iGuider onboard autoguiding system
- 32-channel GPS
- USB and ST-4 autoguiding ports
- Organized cable management
- 6" dual dovetail saddle compatible with Losmandy-D & Vixen plates
- Optional Wi-Fi connectivity
- LiteRoc 1.75" tripod and hard case included
- NEW iOptron subsidized TheSky Imaging Edition software
What's in the Box:
- iOptron GEM45 mount with black gear switches (#7620A)
- Go2Nova Hand Controller
- 11-pound counterweight
- Stainless steel counterweight shaft
- iPolar electronic polar scope
- GEM45 GPS module
- AC adapter (100V-240V)
- Two 6P6C RJ11 to RJ11 coiled control cables
- USB cable
- Hard case for mount head
- LiteRoc 1.75" tripod with leg locks
- Quick Start Guide
Specifications
| Mount | German Equatorial Mount |
| Max payload* | 45 lbs (20 kg), exclude counterweight |
| Mount weight | 17.5 lb (7.9 kg) |
| Payload/Mount weight | 2.53 |
| Structure Material | All metal, CNC machined |
| Exterior Finish | Anodized red/black |
| Latitude adjustment range | 14º ~ 68º |
| Azimuth adjustment range | ± 6º |
| Tracking accuracy (PE)** | <±7.5 arcsec |
| PEC | PPEC |
| Period | 400 sec |
| Worm diameter | Φ17mm, Brass |
| Right Ascension worm wheel | Φ110mm, 216 teeth, zero backlash |
| Declination worm wheel | Φ110mm, 216 teeth, zero backlash |
| Right Ascension axis shaft | Φ45mm steel |
| Declination axis shaft | Φ45mm steel |
| Right Ascension bearings | Φ68mm |
| Declination bearings | Φ68mm |
| Counterweight shaft | Φ28X280 mm, Stainless Steel (1.2 kg) |
| Counterweight | 11lbs (5kg) X1 |
| Motor | Precision stepper motor, 1.8º/128X micro-step |
| Motor resolution | 0.08 arcsec (200 PPS) |
| Transmission | Synchronous belt |
| Hand Controller | Go2Nova® HC, 8 line 21 character LCD |
| Star Database | 212,000+, star identification |
| Power | DC 12V, 5A (5.5mm/2.5mm plug) |
| AC adapter | 100V ~ 240V (included) |
| Power consumption | 0.6A(Tracking), 0.9A(GOTO) |
| Power-down memory | Yes |
| Polar scope | Internal iPolar TM electronic polar scope |
| Meridian treatment | Stop (0-20° pass), flip |
| Zero position | Automatic zero search |
| Dovetail saddle | 6" Losmandy D & Vixe dual saddle |
| Max slew speed | 4.5°/sec (1080X) |
| Guiding scope/camera | Built in guiding scope and camera, iGuiderTM |
| Guiding port | ST-4 |
| Communication port | USB |
| GPS | Yes |
| WiFi | External (optional) |
| Cable Management | DC12V (3A), ST4,USB |
| Tripod | 1.75" Stainless Steel(~8kg), or optional Tri-pier |
| Hard case | Included (mount head) |
| Operation temperature | -10ºC ~ 40ºC |
| Warranty | Two year limited |
* OTA size and length dependent
** Measured with encoder on the bench, 400 seconds
