iOptron CEM120
Revolutionizing the way you mount your equipment... Now featuring an enhanced payload capacity! Understanding the ever-increasing need for a sturdy and precise equatorial mount that can handle larger scopes and...
Revolutionizing the way you mount your equipment... Now featuring an enhanced payload capacity!
Understanding the ever-increasing need for a sturdy and precise equatorial mount that can handle larger scopes and sophisticated imaging setups, we bring you the iOptron CEM120. This mount takes advantage of our game-changing "center balance" design, which concentrates the mount and the payload weight directly over the pier or tripod for superior stability. This design innovation allows the CEM120 to support an impressive payload of up to 115 lbs (52 kg).
When it comes to performance, the CEM120 shines with a low periodic tracking error of just ±3.5 arc seconds. But that's not all. This mount also features a state-of-the-art cable management system with a multitude of ports placed strategically to avoid cable mess and reduce the risk of cable damage. Plus, it brings new tech to the CEM lineup, including Wi-Fi and LAN capabilities for remote operation, and user-friendly, dependable clutches on both axes.
Want to go heavier on equipment? Optional heavy-duty Tri-Pier 360 and Permanent Pier are up for grabs.
Looking for a lighter setup? We've got an optional Tri-Pier adapter (8036-120) that can also be adapted for permanent pier installations.
Features
- Redesigned center-balanced equatorial mount (CEM) for increased payload and natural stability
- Ideal for both visual and astrophotography applications
- Supports a hefty payload of 115 lbs (52 kg), while the mount itself weighs 57 lbs (26 kg)
- Intuitive and reliable gear clutches for smooth operation
- Fine-tuned altitude and azimuth adjustments
- High-precision stepper motor boasting 0.07 arcsec accuracy for exact GOTO and spot-on tracking
- Special polar alignment routine for users without a view of the Pole Star
- Comes with the Go2Nova® 8410 controller featuring Advanced GOTONOVA® GOTO Technology and an integrated heater
- Low periodic error (PE) of less than ±3.5 arcsec and Permanent Periodic Error Correction (PPEC)
- 32-channel Global Positioning System (GPS) onboard
- In-built WiFi and LAN for remote functionality
- ST-4 autoguiding port included
- Advanced cable management features for added convenience
- Spring-loaded, individually adjustable Losmandy saddle for easy adjustments
What's in the Box?
Box 1 of 2: #7320
- CEM120 Mount Head x1
- Go2Nova 8407 V2 Hand Controller x1
- Hand Controller Cable x1
- Counterweight Shaft x1
- Accessory Pack x1
Box 2 of 2: #7325
- 10 kg Counterweight x2
Specifications
| Mount | Center-balanced Equatorial Mount (CEM) |
| Payload1 | 52kg (115 lbs), exclude counterweight |
| Mount weight | 26kg (57 lbs) |
| Payload/Mount weight ratio | 2 |
| Material | All metal |
| Latitude adjustment range2 | 0°~ 68° (0.5 arcmin division) |
| Azimuth adjustment range | ± 5° (3 arcmin division) |
| PE (by encoder)3 | < ±3.5 arcsec |
| Worm period | 240 sec |
| PEC | PPEC |
| Right Ascension worm wheel | Φ216mm, 360 teeth, zero backlash |
| Declination worm wheel | Φ216mm, 360 teeth, zero backlash |
| Worm | Φ26mm |
| Right Ascension axle | Φ80mm, steel |
| Declination axle | Φ80mm, steel |
| Right Ascension bearings | Φ125mm |
| Declination bearings | Φ125mm |
| Counterweight shaft | Φ38.1x 540 mm (SS, anti-slip, 4.5kg) |
| Counterweight | 10 kg (22 lbs) |

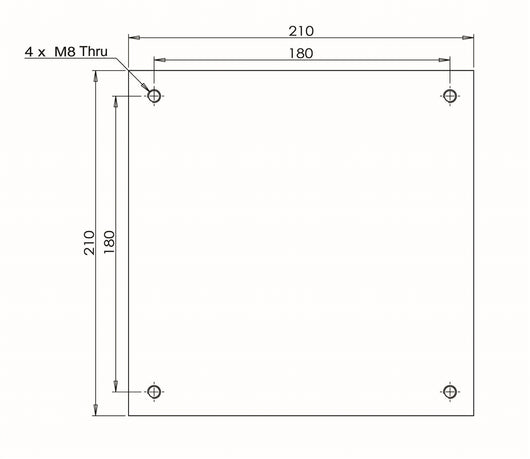

| Mount base size | 210 x 230 mm |
| Motor drive | Precision stepper motor w/128 micro-step |
| Resolution | 0.07 arc seconds |
| Slew speed | 4°/sec (960x) max. |
| Hand Controller | Go2Nova® 8410, 8 line 21 character LCD |
| Power requirement4 | DC 12V, 5A |
| Power consumption | 0.7A(Tracking),1.8A(GOTO) |
| Polar Scope | Optional iPolar electronic polar scope |
| Meridian treatment | Stop (0-14° pass), auto flip |
| Zero position | Automatic zero search |
| Park position | Horizontal, vertical, current, alt/azi input |
| Level indicator | YES |
| Dovetail saddle | Losmandy D, 17.2" (437mm) |
| GPS | YES |
| Guiding port | ST-4 |
| Communication port | RS232, USB, LAN, WiFi |

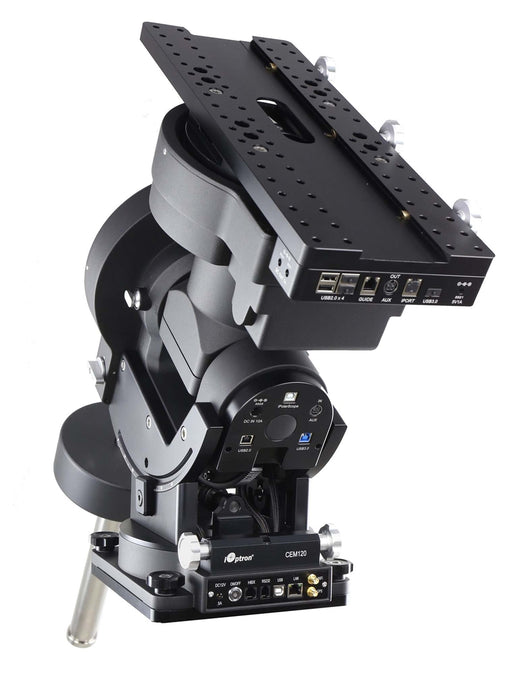

| Cable management | 2xDC12V (1A), 2xDC (5A), ST4, 6P6C, 2xUSB2.0, 3xUSB3.0, USB for PS, AUX |
| Operation temperature | -10°C ~ +40°C |
| Pier/Tripod | Optional pier |
| Warranty | Two year limited |
1. OTA size and length dependent.
2. If you latitude is <10°,please contact iOptron for low latitude CW (#7326LL).
3. Measured with encoder on the bench, 240 seconds
4. Included AC adapter is for indoor use only
