iOptron SkyGuider-Pro [SGP] w/ iPolar

$638.00

Meet the Next-Level SkyGuiderTM Pro: iOptron's Advanced Camera Tracker Building on a nearly four-year reign at the top of the camera tracker market, iOptron's revamped SkyGuiderTM Pro brings you closer than...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
SKU: 3550A
Categories: iOptron Mounts
Description

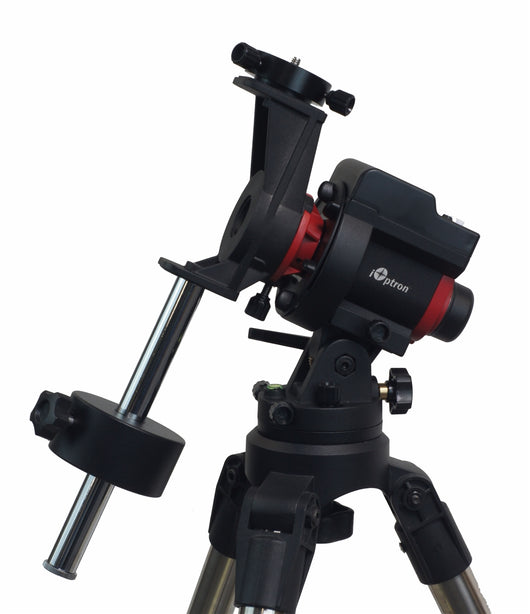

Meet the Next-Level SkyGuiderTM Pro: iOptron's Advanced Camera Tracker

Building on a nearly four-year reign at the top of the camera tracker market, iOptron's revamped SkyGuiderTM Pro brings you closer than ever to perfect tracking. This newly designed mount head is not only more compact—easily fitting in the palm of your hand—but also offers enhanced precision, silent tracking, an integrated rechargeable battery, ST-4 guiding port, and a camera trigger port.

Paired with our iOS app, this device makes polar alignment a breeze. The adjustable illumination on the precision polar scope allows for versatile viewing conditions. The DEC mounting bracket supports better balancing for heavier camera and lens setups, or even lightweight telescopes. If you opt for the 8408 hand controller, you can further fine-tune your setup with features like Pole Star position checking and camera trigger control.

The SkyGuiderTM Pro offers four tracking rates: sidereal or 1X, half-speed or 1/2X for capturing both sky and landscape, as well as solar and lunar speeds. All four tracking modes operate seamlessly in both the northern and southern hemispheres. Plus, a quick slew mode in both forward and reverse helps you adjust your framing without upsetting the camera's positioning.

We've upgraded the removable alt-azimuth base for better usability, featuring a precision bubble level, degree markers for altitude, and a dedicated azimuth control post. You can also attach the SkyGuiderTM Pro head directly to any standard photography tripod with 1/4" or 3/8" threading.

Ideal for both astroscapes and wide-field astrophotography, this device is a photographer's dream tool.

Key Features:

  • Robust all-metal mechanical structure
  • Compatible with tripods featuring 1/4" or 3/8" threads
  • Payload capacity: 11 lbs (5 kg) when balanced, excluding counterweight
  • Silent tracking ideal for long-exposure shots
  • Removable alt-az base with precise latitude and azimuth adjusters
  • iOptron AccuAlignTM dark-field illuminated polar scope included
  • Variable polar scope illumination
  • Four tracking speeds: 1X (sidereal), 1/2X, solar, and lunar
  • Operable in both northern and southern hemispheres
  • Quick slew at 144X speed for easy framing adjustments
  • Up to 20 hours of operation on a single charge (at 20°C)

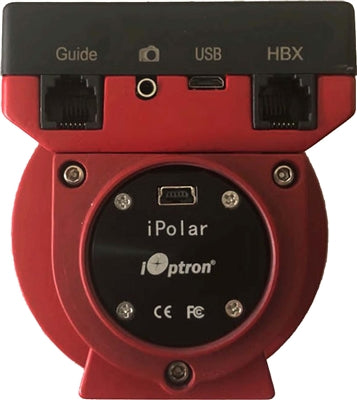

  • ST-4 autoguiding port and HBX port for external hand controller
  • Micro USB port for charging and firmware updates
  • Integrated camera trigger port
  • Padded carrying bag
  • Optional accessories: Ball heads (#3305A), tripod (#3221), Go2Nova® 8408 hand controller, and DSLR shutter trigger cable

What's in the Box?

  • SkyGuiderTM Pro Camera Mount
  • Installed Alt-Azimuth Base
  • Installed AccuAlignTM Dark-Field Illuminated Polar Scope
  • Micro USB Charging Cable
  • Padded Carry Bag
  • DEC Mounting Bracket with Camera Mounting Disk
  • 1.35 kg Counterweight
  • Counterweight Shaft
  • One-Year Limited Warranty (Battery covered for 90 days)



Specifications

Mount Compact single axis tracking EQ
Payload (Max.) 11 lbs (5kg), balanced
Mount weight 2.2 lbs (1kg) with battery
Mount weight with base 3.2 lbs (1.45kg) with battery
Body material All metal
RA shaft Φ35mm, steel
Worm wheel Φ88mm, 144 teeth aluminum alloy
R.A. worm Φ15.2mm, brass
Bearing 4 pieces
Motor drive DC servo motor with optical encoder
Tracking R.A. automatic
Tracking speed Solar, Lunar, Cel, 1/2 Cel, and N/S
Fast slew speed 144X, forward and reverse
Guiding port ST-4 compatible
Polar scope AccuAlign TM dark field illuminated (~6º FOV)
Camera trigger Yes
Hand controller Yes (with optional 8408 HC)
Power Requirement Internal rechargeable battery
Battery type Li-Poly, 3.7V, 2000mAh
Duration of operation Up to 20 hours at 20ºC
Power charge port Micro USB (5V), 80% charge in 5 hours
Camera mounting block Φ62mm, 3/8" post thread
Body base connection Vixen dovetail, 3/8” socket (1/4” converter)
Alt-Azi adjustable base Vixen style saddle, 3/8” socket
Alt-Azi adjustable base diameter Φ80 mm
Latitude adjustment range -30º ~ 65º (with alt-azi base)
Azimuth adjustment range ±5º
Level indicator Level bubble
Body dimension 133x115x95 mm (w/o alt-azi base)
Counterweight shaft Φ20x200 mm w/ 3/8”-16 threads
Counterweight 1.35kg
Firmware upgrade Yes (via USB port)
Operation Temperature -10ºC ~40ºC
Warranty One year limited (90 day on battery)



What's in the Box?

  • SkyGuiderTM Pro camera mount
  • Alt-azi base (installed)
  • AccuAlignTM dark field illuminated polar scope (installed)
  • Micro USB charging cable
  • Padded carry bag
  • DEC mounting bracket w/ camera mounting disk
  • 1.35kg counterweight
  • CW shaft
  • One Year Limited Warranty (90 day on battery)
