iOptron SkyHunter AZ(Head only)
iOptron SkyHunter AZ(Head only)
$358.00

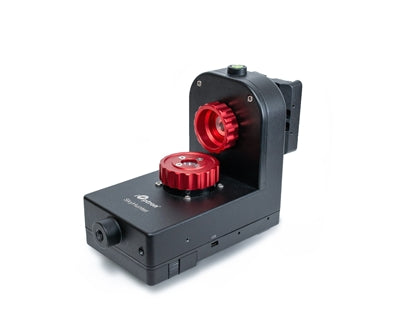

iOptron SkyHunter AZ (Head Only)
Ultra-Compact GoTo Mount
- Portable & Lightweight Design – Weighing only 2.9 lbs (1.3kg), the SkyHunter AZ is the lightest and most compact full-function GoTo mount in iOptron’s history.
- Dual-Mode Functionality – Operates in both Alt-Azimuth (AZ) and Equatorial (EQ) modes, making it versatile for visual observation and astrophotography.
- Impressive Payload Capacity – Supports up to 7 lbs (3.2kg), perfect for small telescopes and camera setups without the need for counterweights.
- Advanced Tracking Options – Features four tracking rates (Sidereal 1X, 1/2X for sky and landscape combined, Solar, and Lunar) for both northern and southern hemispheres.
- Seamless Wireless Control – Built-in WiFi adapter allows control via SkySafari 6 Pro or later, ASCOM, INDI, or iOptron Commander from a smartphone, tablet, or computer.
- Vixen-Style Dovetail Saddle – Securely mounts a wide range of optical tubes and accessories.
- Long Battery Life – The built-in rechargeable battery provides up to 10 hours of operation at 20°C, ensuring uninterrupted stargazing sessions.
- Firmware Upgradability – Features a USB port for firmware upgrades and computer control for future-proof operation.
- Optional Hand Controller & Accessories – Can be paired with the Go2Nova® 8410 controller featuring Advanced GOTONOVA® GoTo technology for precise object tracking.
- Versatile Mounting Options – Easily attaches to a camera tripod with 3/8” or 1/4” threads, with optional accessories including a 1.25" stainless steel tripod, carbon fiber tripod, and pier extension.
Package Includes:
✔ SkyHunter AZ GoTo Mount (Head Only)
✔ Stainless Steel Counterweight Shaft
✔ 3 lbs Counterweight
✔ MiniUSB Charging Cable
✔ One-Year Limited Warranty (90 days on battery)
Ideal for Grab-and-Go Astronomy & Astrophotography
The iOptron SkyHunter AZ is the perfect travel-friendly GoTo mount, offering precision tracking, wireless control, and lightweight portability—ideal for amateur astronomers and astrophotographers on the move! 🚀🔭
Specifications
| Mount | Ultracompact GOTO EQ/AZ mount |
| Payload (Max.) | 7 lbs (3.2kg), balanced |
| Mount weight | 2.9 lbs (1.3kg) with battery |
| Structure material | Metal frame structure |
| Motor drive | Dual-axis DC servo motor with optical encoder |
| Transmission | Synchronous belt |
| Tracking speed | Solar, Lunar, Cel, 1/2 Cel, and N/S |
| Maximum slew speed | 4.5°/sec (1080X) |
| Worm period | 600 sec |
| RA/DEC worm wheel | Φ77 mm, 144 teeth |
| Hand controller | Yes (with optional 8410 HC) |
| Altitude adjustment range | 0º ~ 80º |
| Azimuth adjustment range | ±5º |
| Power Requirement | Internal rechargeable battery |
| Battery type | Li-Poly, 3.7V, 2000mAh |
| Duration of operation | Up to 10 hours at 20ºC |
| Counterweigh Shaft | Φ20mmX200mm, 3/8" thread, stainless steel |
| Counterweigh | 3 lbs (1.3 kg) |
| Dovetail saddle | Vixen-type |
| Body base connection | Vixen dovetail, 3/8” socket |
| Power charge port | MiniUSB (5V) |
| Wi-Fi | Built-in |
| Communication port | Yes (Wi-Fi and USB) |
| Firmware upgrade | Yes (via USB port) |
| Operation Temperature | -10ºC ~40ºC |
| Warranty | One year limited (90 day on battery) |
