Upgrade Your Astrophotography Game with the QHY Mini Guide Scope. Achieve stunning celestial images by harnessing the precision and reliability of the QHY Mini Guide Scope. Explore its compact design, easy installation process, and optimized performance, empowering you to capture breathtaking views of the cosmos. Maximize your astrophotography potential with this essential tool.

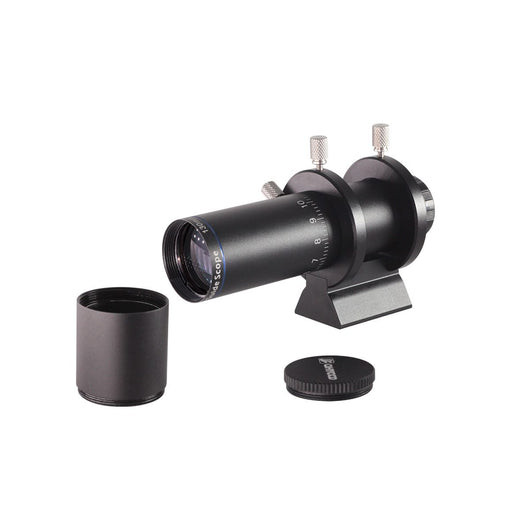

QHYCCD’s new Mini Guide Scope is based on just this idea. The Mini Guide Scope is a 30mm f/4.3 (130mm FL) ultra-small telescope. It has no complex focal adjust system. Just rotate the front of the OTA and it provides fine focal adjustment. Once focus is achieved, the tube can be locked into position and there is not need to focus again unless the system is moved.
The MiniGuideScope provides pin-point star images as sharp as any lens in the industry.
Specification's
|
Model
|
MiniGuideScope |
|
Diameter
|
30mm |
|
Focal Length
|
130mm |
|
Aperture
|
1:4.3 |
|
Object Lens Type
|
Doublet |
|
Focus System
|
Front Side Focuser |
|
Focus Locker
|
Yes |
| Camera Interface |
C/CS Mount |
| Compatible Cameras |
QHY5II and QHY5III series |
| Anti-Scatter Light Matt Paint |
Yes, Internal painted |
| Weight (OTA only) |
111g |
| Telescope Connector |
Optional Standard View Finder Scope Connector with Tripod Screw Thread |
| Diameter of the OAT |
31.6mm |
| Focus Adjustable Range |
Inf. to 1.5 meter |
