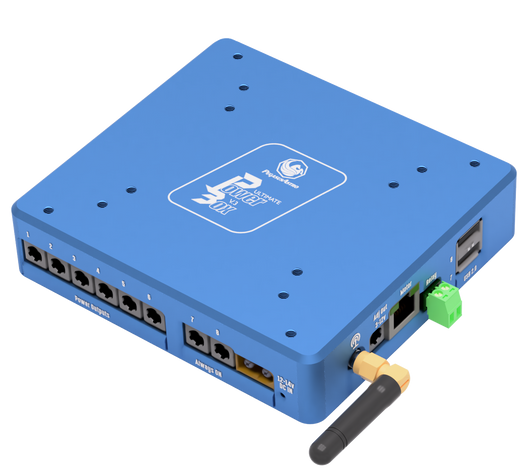

Robust Power Supply: Delivers up to 12V / 20A (240W) with six individually switchable 12V outputs, customizable for constant or PWM-driven output.
Versatile Connectivity: Features 6 USB 3.1 ports (backward compatible with USB 2) and 2 USB 2 ports, all individually controllable via software for maximum flexibility.

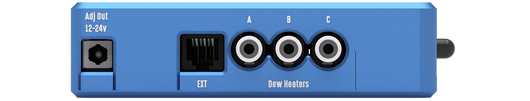

Advanced Dew Heater Control: Includes three PWM dew heater outputs for automatic temperature adjustment with AutoDew technology.
Variable Voltage Outputs: Offers two adjustable power outputs (3-12V at 3A and 12-24V at 4A) for diverse accessory requirements.
Integrated Protection Mechanisms: Equipped with short circuit, overload, and overvoltage protections for all ports ensuring the safety of connected devices.
Stepper Motor Controller: Silent and low-vibration controller compatible with a wide range of stepper motors, providing precise focus adjustments.
Environmental Sensing: Built-in ambient temperature and humidity sensors, with preference for external sensors, for environmental monitoring and device adjustment.
Remote Control Options: Operable via Wi-Fi (2.4GHz) or USB, with additional wireless control through smartphones or tablets using a Virtual HandPad.
Software Integration: Compatible with PLAY astrophotography software and ASCOM driver for seamless control through third-party software.
Extra Features: Includes a power relay switch (250V/10A), external Wi-Fi antenna for enhanced signal strength, and real-time power readings for input voltage and current per port.
ASCOM Alpaca Compatibility: Features integrated web server communication with Alpaca clients for remote telescope focus control and monitoring from any web browser.
Comprehensive Motor Support: Supports a wide array of stepper motors with specific cables available for each type, ensuring easy integration and optimal performance.
The UPBv3 is the ultimate power management solution for astrophotographers seeking to streamline their setup, enhance equipment safety, and improve observation efficiency with cutting-edge technology and extensive software support.
Specifications
Supply Voltage:
12V-14V DC (Reverse Polarity Protected)
Power Input Connector
XT60 Female
Connectivity
USB3 – Type B USB Connector

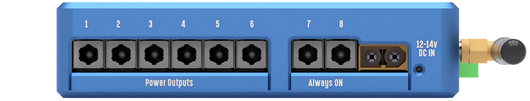

6 x 12V Outputs
Maximum Current 6.0A each. 2.1mm Center Positive Sense/ Ampmeter in each port Software: ON/OFF
3 Channel x 12V PWM Outputs
Maximum Current 3A each, RCA Connector, Pulse Width Modulated [3KHz] (Suitable for Dew Heaters / Fans / Flatpanel) Software: Duty Cycle % / OFF
2 x Variable Outputs
Adjustable via software. 3-12V / 3Amps Adjustable via software. 12-24V / 4Amps
2 x Always ON 12V Output
12V passthrough / Always ON / 8 Amps
Stock Sensor Input / EXT
0-100% humidity readings with 2-5% accuracy -40 to 80°C temperature readings ±0.5°C accuracy
Ampmeter
Measures 0 – 20A
Voltmeter
Measures 5 – 15V

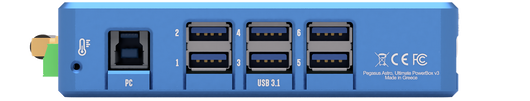

Superspeed (USB3.1) 8 port powered Hub
Industrial Grade: Temperature range -40°C to +80°C 6 x SuperSpeed (USB3.2) ports (backwards compatible with USB2) 2 x High Speed (USB2) ports USB Ports can be switched ON/OFF on demand via software (data + power) Each USB port can deliver up to 2.2Amps

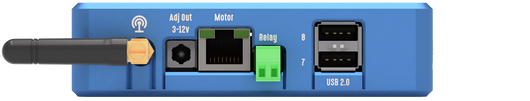

Stepper Motor Controller
Unipolar and Bipolar Stepper motors (2.0 Amps per phase) – RJ45 socket

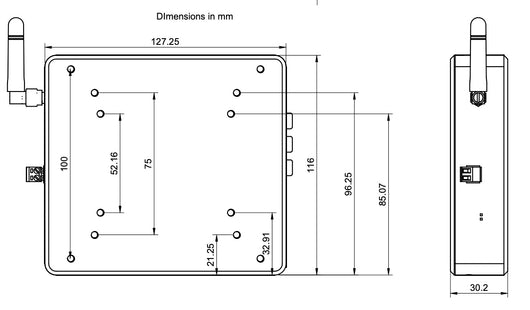

Dimensions
127.3mm x 116mm x 30mm
Weight
400 grams (14.1 ounces)
