OGMA AP26CC IMX571 Cooled Color Imager
OGMA AP26CC IMX571 Cooled Color Imager - Capture the Cosmos in Full Spectrum Superior Imaging Capabilities: High-Performance Sensor: Equipped with the Sony IMX571 Color CMOS Sensor, perfect for capturing vibrant astrophotography...
OGMA AP26CC IMX571 Cooled Color Imager - Capture the Cosmos in Full Spectrum
Superior Imaging Capabilities:
- High-Performance Sensor: Equipped with the Sony IMX571 Color CMOS Sensor, perfect for capturing vibrant astrophotography images with a resolution of 6224 x 4168 and 26MP.
- Impressive Full Well Capacity: Boasts a 100ke- full well capacity, allowing for excellent image capture with minimal noise, ideal for capturing subtle nuances of the cosmos in color.
Advanced Design for Multiple Configurations:
- Flexible Back Focus: Features a default 17.5 mm back focus, with the option to reduce to 12.5 mm for setups requiring additional accessory space.
- Optimized for Fast Optics: Enhances imaging potential when used with the O'Tilter, making it ideal for advanced astrophotography techniques.
State-of-the-Art Cooling and Anti-Dew Technology:
- Efficient Cooling System: Cools up to 40°C below ambient to minimize sensor noise for clearer, more detailed images.
- Built-In Anti-Dew Heater: Prevents condensation on the sensor protective window, maintaining clear imaging without the need for desiccant tubes.
Connectivity and Data Management:

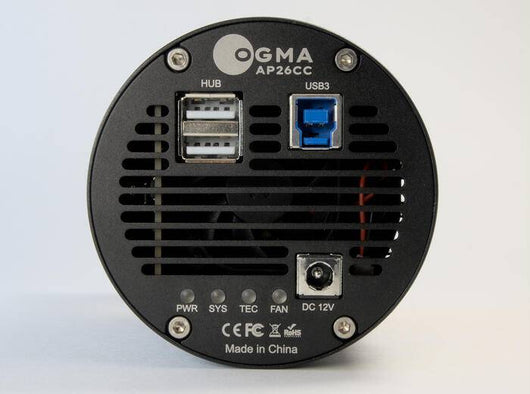

- Enhanced USB Connectivity: Offers a dual USB3.0/USB2.0 interface plus a two-port USB hub, ensuring efficient data transfer and device connectivity.
- Robust Memory Buffer: Includes a 512MB DDR3 buffer to ensure smooth data handling during long exposure captures.
Comprehensive Accessory Kit Included:
- Value-Added Extras: Each camera comes with a filter holder, UV/IR filter, back focus shortener, and various spacers and adapters to enhance your astrophotography setup.
Specifications at a Glance:
- Pixel Size: 3.76 μm square pixels for detailed and sharp imaging.
- Zero Amp-Glow: Incorporates zero amp-glow technology for pristine long-exposure images.
- Image Format: Utilizes the APS-C format to align with professional astrophotography standards.
The OGMA AP26CC IMX571 Cooled Color Imager stands as a premier choice for astrophotographers seeking to explore the vibrant details of the night sky. With its powerful sensor, versatile configuration options, and advanced cooling technology, it delivers exceptional color imaging performance under the stars.
Specifications
|
Camera Type |
Digital still image |
|
|
Sensor |
Sony IMX571 back illuminated sensor (Color or Monochrome depending on model) |
|
|
Diagonal |
28.3 mm |
|
|
Image Resolution |
26 mega pixels (6224x4168) |
|
|
Pixel Size |
3.76µm x 3.76µm |
|
|
Image Area |
23.4mm x 15.7mm |
|
|
Max FPS at Resolution |
16bit |
8bit |
|
6.8 FPS @ 6224x4168 28 FPS @ 3104x2084 63 FPS @ 2064x1386 |
13.2 FPS @ 6224x4168 37.1 FPS @ 3104x2084 110 FPS @ 2064x1386 |
|
|
Max FPS at Resolution (Low Noise) |
16bit |
8bit |
|
3.4 FPS @ 6224x4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
12.7 FPS @ 6224x4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
|
|
Shutter Type |
Rolling shutter |
|
|
Exposure Time |
0.1ms – 3600s |
|
|
Gain |
1x – 100x |
|
|
SNR |
47.1 dB |
|
|
Dynamic Range |
86.8 dB (Low Noise Mode) |
|
|

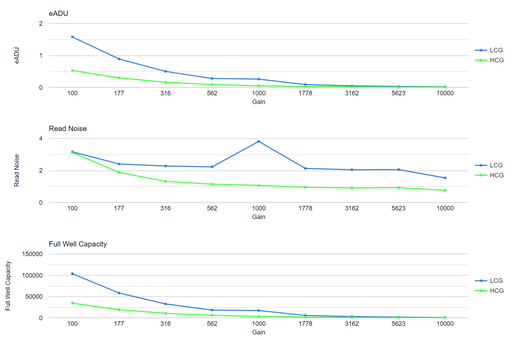

Read Noise (LCG) |
1.48 – 3.23 e- |
|
|
Read Noise (HCG) |
1.32 – 0.82 e- |
|
|
QE Peak |
>80% |
|
|
Full Well |
100ke- |
|
|
ADC |
16bit |
|
|
DDR3 Buffer |
512MB (4Gbit) sufficient for reliable data transfer over USB3.0 (1Byte = 8bit) |
|
|
Data Connection Port |
USB3.0/USB2.0 |
|
|
Data Hub |
2 USB ports |
|
|
Optical Path Connection |

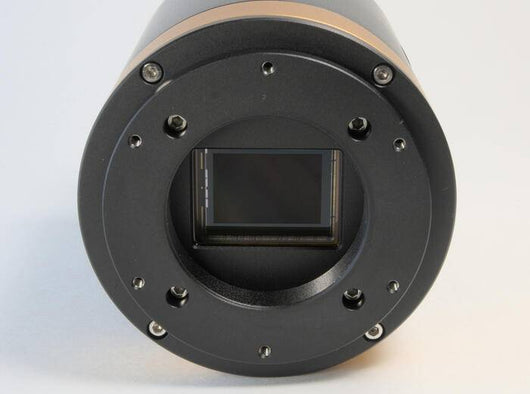

M42 x 0.75mm Also, six M2.5 holes matching popular models of filter wheels and OAGs (requires M2.5 screws) |
|
|
Protective Window |
Double-side coating protective Anti-Reflections (AR) glass |
|
|
Spectral Range |
350-1050nm |
|
|
Recording System |
Still picture and movie |
|
|
Camera Dimensions |
Diameter 80mm x height 103mm |
|
|
Camera Weight |
0.552kg |
|
|
Back Focus Distance |
17.5mm |
|
|
Cooling: |
Two stage TEC |
|
|
Effective Cooling Temperature: |
-35℃ below ambient under short exposure/ -40℃ under long exposure(> 1s) |
|
|
Operating Temperature: |
-5℃ to 50℃ |
|
|
Storage Temperature: |
-10℃ to 60℃ |
|
|
Operating Relative Humidity: |
0 to 80% |
|
|
Supported OS |
Microsoft® 10 / 11 (32 & 64 bit) OSx(Mac OS X) Linux MacOS |
|
|
Operating Voltage |
12V DC power adapter supplied Acceptable range for batteries: 11-14V DC |
|
