Camera Type

Digital still image

Sensor

Sony IMX410 Full-frame back-illuminated sensor (Color)

Diagonal

43.3 mm

Image Resolution

24 megapixels (6064 x 4040)

Pixel Size

5.94µm x 5.94µm

Image Area

36.02mm x 23.998mm

Max FPS at Resolution

14bit

8bit

Shutter Type

Rolling shutter

Exposure Range

 0.1ms – 3600s

Gain

1x – 150x

SNR

52 dB

Dynamic Range

87.3 dB (Low Noise Mode)

Read Noise (LCG)

4.48 – 1.95 e-

Read Noise (HCG)

0.68 - 0.3 e-

QE Peak

>80%

Full Well

104ke- (20ke- @HCG)

ADC

14bit

DDR3 Buffer

512MB (4Gbit) sufficient for reliable data transfer over USB3.0 (1Byte = 8bit)

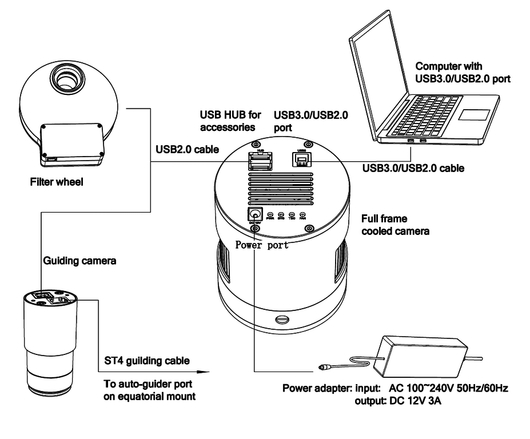

Data Connection Port

USB3.0/USB2.0

Data Hub

2 USB ports

Optical Path Connection

M54 x 0.75mm

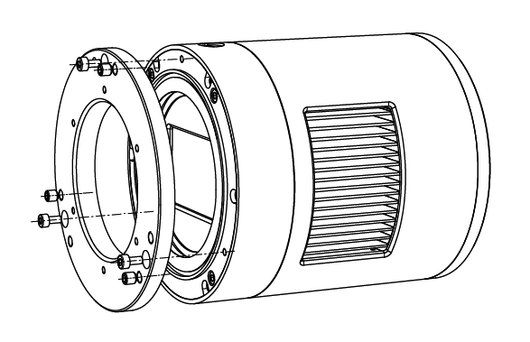

Also, six M2.5 holes matching popular models of filter wheels and OAGs (requires M2.5 screws)

See optical path connections

Protective Window

Double-side coating protective Anti-Reflections (AR) glass

Spectral Range

350-1050nm

Recording System

Still picture and movie

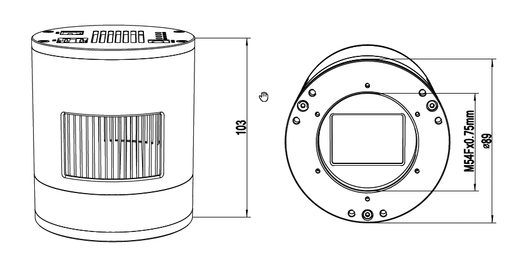

Camera Dimensions

Diameter 89mm x length 103mm

Camera Weight

0.718kg

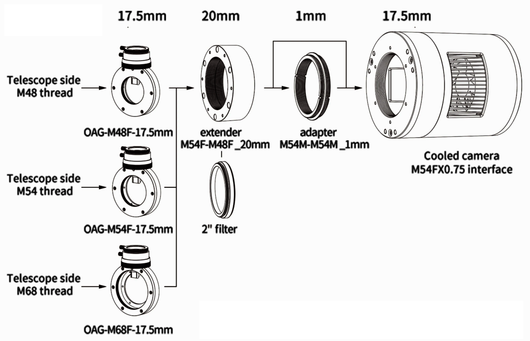

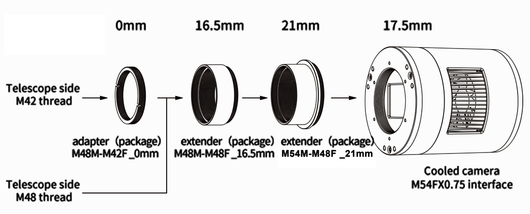

Back Focus Distance

17.5mm

Cooling:

Two-stage TEC

Effective Cooling Temperature:

30℃ below ambient under short exposure/ -35℃  under long exposure (> 1s)

Operating Temperature:

-5℃ to 50℃

Storage Temperature:

-10℃ to 60℃

Operating Relative Humidity:

0 to 80%

Supported OS

Microsoft® 10 / 11 (32 & 64 bit) OSx(Mac OS X)

Linux

MacOS

Operating Voltage

12V DC power adapter supplied

Acceptable range for batteries: 11-14V DC
