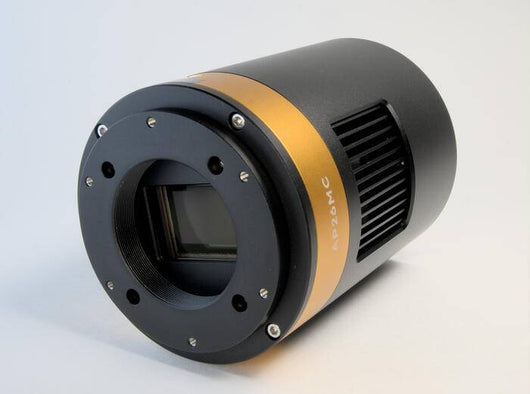

OGMA AP26MC IMX571 Cooled Monochrome Imager
OGMA AP26MC IMX571 Cooled Monochrome Imager - Unleash Your Astrophotography Potential Exceptional Image Quality: Sensor Excellence: Features the Sony IMX571 Monochrome CMOS Sensor, offering astrophotographers a high resolution of 6224 x...
OGMA AP26MC IMX571 Cooled Monochrome Imager - Unleash Your Astrophotography Potential
Exceptional Image Quality:
- Sensor Excellence: Features the Sony IMX571 Monochrome CMOS Sensor, offering astrophotographers a high resolution of 6224 x 4168 and 26MP to capture detailed celestial images.
- Large Full Well Capacity: A substantial 100ke- full well capacity ensures deep image capture with low noise, ideal for high dynamic range imaging.
Versatile Configuration:
- Adjustable Back Focus: Comes with a standard 17.5 mm back focus, easily adjustable to a shorter 12.5 mm for enhanced compatibility with additional astrophotography accessories.
- Compatible with Fast Optics: Achieve optimal results with fast optics by incorporating the O'Tilter, enhancing your setup’s versatility and imaging potential.
Advanced Cooling System:
- Efficient Cooling: Up to 40°C below ambient temperature cooling to significantly reduce sensor noise for clearer, sharper images.
High Connectivity and Speed:

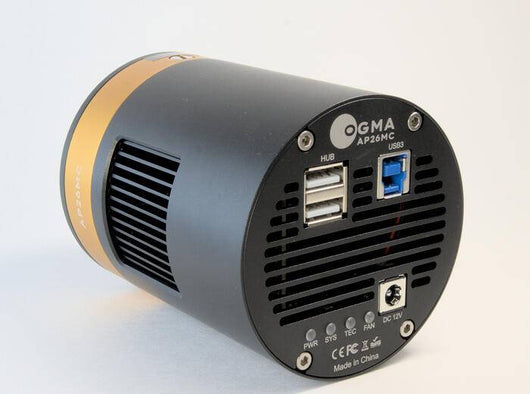

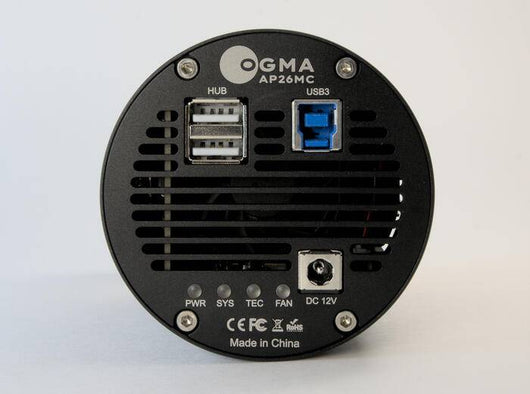

- Dual USB Ports: Includes a USB3.0 and USB2.0 interface with an additional two-port USB hub, facilitating efficient data management and connectivity.
- Ample Buffer: Equipped with a 512MB DDR3 buffer, ensuring smooth and reliable data transfer, crucial for maintaining the integrity of high-resolution images.
Bonus Accessory Kit Included:
- Value-Added Components: Each purchase includes a filter holder, UV/IR filter, back focus shortener, and various spacers and adapters, adding over $100 in value.
Key Specifications:
- Pixel Size: 3.76 μm square pixels for precise image detail.
- No Amp-Glow: Zero amp-glow technology for flawless long-exposure imaging.
- Image Format: Supports APS-C format, aligning with professional astrophotography standards.
The OGMA AP26MC IMX571 Cooled Monochrome Imager is designed for the discerning astrophotographer looking to push the boundaries of night sky photography. With its high-resolution sensor, versatile configurations, and powerful cooling system, it stands out as a top choice for capturing the universe in all its monochromatic glory.
Specifications
|
Camera Type |
Digital still image |
|
|
Sensor |
Sony IMX571 back illuminated sensor (Color or Monochrome depending on model) |
|
|
Diagonal |
28.3 mm |
|
|
Image Resolution |
26 mega pixels (6224x4168) |
|
|
Pixel Size |
3.76µm x 3.76µm |
|
|
Image Area |
23.4mm x 15.7mm |
|
|
Max FPS at Resolution |
16bit |
8bit |
|
6.8 FPS @ 6224x4168 28 FPS @ 3104x2084 63 FPS @ 2064x1386 |
13.2 FPS @ 6224x4168 37.1 FPS @ 3104x2084 110 FPS @ 2064x1386 |
|
|
Max FPS at Resolution (Low Noise) |
16bit |
8bit |
|
3.4 FPS @ 6224x4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
12.7 FPS @ 6224x4168 (Low Noise Mode is only available in All Pixel Readout Mode) |
|
|
Shutter Type |
Rolling shutter |
|
|
Exposure Time |
0.1ms – 3600s |
|
|
Gain |
1x – 100x |
|
|
SNR |
47.1 dB |
|
|
Dynamic Range |
86.8 dB (Low Noise Mode) |
|
|

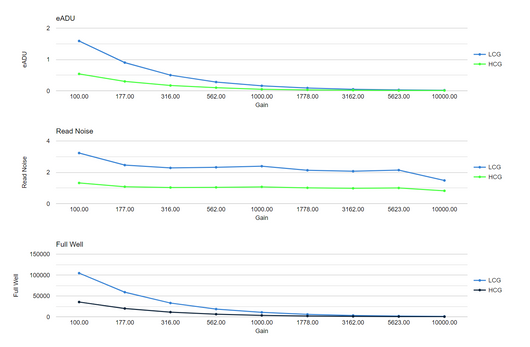

Read Noise (LCG) |
1.48 – 3.23 e- |
|
|
Read Noise (HCG) |
1.32 – 0.82 e- |
|
|
QE Peak |
>80% |
|
|
Full Well |
100ke- |
|
|
ADC |
16bit |
|
|
DDR3 Buffer |
512MB (4Gbit) sufficient for reliable data transfer over USB3.0 (1Byte = 8bit) |
|
|
Data Connection Port |
USB3.0/USB2.0 |
|
|
Data Hub |
2 USB ports |
|
|

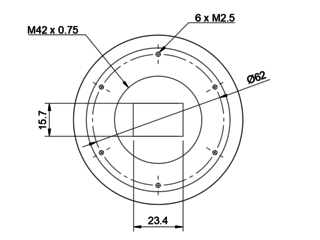

Optical Path Connection |
M42 x 0.75mm Also, six M2.5 holes matching popular models of filter wheels and OAGs (requires M2.5 screws) |
|
|
Protective Window |
Double-side coating protective Anti-Reflections (AR) glass |
|
|
Spectral Range |
350-1050nm |
|
|
Recording System |
Still picture and movie |
|
|
Camera Dimensions |
Diameter 80mm x height 103mm |
|
|
Camera Weight |
0.552kg |
|
|
Back Focus Distance |
17.5mm |
|
|
Cooling: |
Two stage TEC |
|
|
Effective Cooling Temperature: |
-35℃ below ambient under short exposure/ -40℃ under long exposure(> 1s) |
|
|
Operating Temperature: |
-5℃ to 50℃ |
|
|
Storage Temperature: |
-10℃ to 60℃ |
|
|
Operating Relative Humidity: |
0 to 80% |
|
|
Supported OS |
Microsoft® 10 / 11 (32 & 64 bit) OSx(Mac OS X) Linux MacOS |
|
|
Operating Voltage |
12V DC power adapter supplied Acceptable range for batteries: 11-14V DC |
|
What's in the Box?
Main package contents:
- Hardside protective case
- OGMA AP26MC Monochrome Cooled Astronomy Camera
- 12 Volt power adapter
- High-speed USB3.0A cable
Bonus kit:
- UV/IR Cut 2-inch filter
- Zero Light Leak filter holder
- Back focus shortener (12.5 mm) with M42(m) thread
- Spacer M42 to M42 x 21 mm
- Spacer/Adapter M42(m) to M48(f) x 16.5 mm
- Thread adapter M42(f) to M48(m)
Software and Docs
OGMA DShow driver for Windows.
