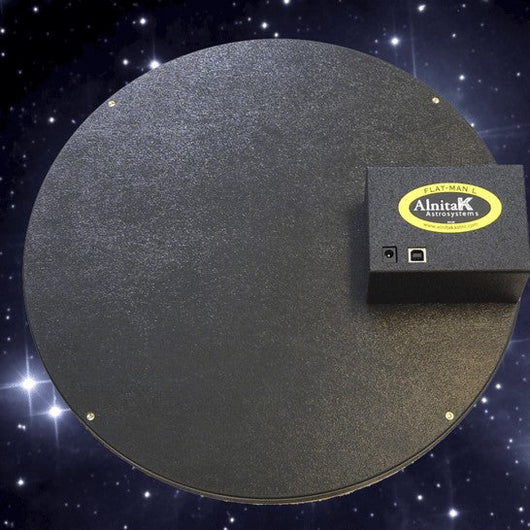

Optec Inc. Alnitak Flat-Man L: Perfect Flat Fielding for Telescopes up to 14 inches

• Designed for Larger Telescopes: The Flat-Man L is tailored for telescopes in the 8-12.5" range, making it a versatile tool for a wide array of larger telescopes.
• Advanced Electroluminescent Technology: Utilizes electroluminescent technology for even illumination, crucial for accurate flat field imaging.
• Flexible Mounting Options: Can be manually placed on the vertical OTA or hung perpendicular to the OTA’s park position, offering ease of use in various settings.
• Windows Software Compatibility: Comes with software that controls and adjusts the brightness of the Flat-Man L, enhancing user control.
• Adjustable Light Intensity: Offers 255 levels of light intensity adjustment, providing flexibility to match specific imaging requirements.
• Convenient Power Supply: Includes a USB cable and power supply, ensuring easy setup and operation.
• Affordable Flat Field Solution: An economical option for achieving excellent flat fields, ideal for telescopes up to 12-1/2" in diameter.
• Optional Mounting Bracket: The #19091 Flat-Man L Mounting Bracket enables easy mounting on any tripod with a 1/4"-20 head or can be modified for observatory wall mounting.
• Enhances Astrophotography: A vital accessory for astrophotographers seeking to improve image quality with precise flat field calibration.
• Robust and Reliable: Built to high standards, ensuring durability and consistent performance in demanding astronomical environments.

Specifications

• Lamp Diffuser Diameter: 14" (355mm)
• Lamp Illumination Diameter: 13" (330mm)
• Maximum Recommended OTA: 12-1/2" (315mm)
• Control Box Dimensions: 2.25" x 3.2" x 4.2" (57 x 80 x 106mm)
• Weight: 3.5 lbs. (1.6 kg)
• Power requirements: 12VDC for illumination, 5VDC for control (USB provided)
• Minimum OTA/dewshield OD: None
• Maximum OTA/dewshield OD: 14"
• Mounting Holes: Eight #6-32 threaded holes available,
• Alnitak Software Compatibility: Windows 7 and 10.
• Command Line Program: AACmd.exe

Software and Docs

Alnitak Ascom/Windows/Firmware

Alnitak Installation Manual
