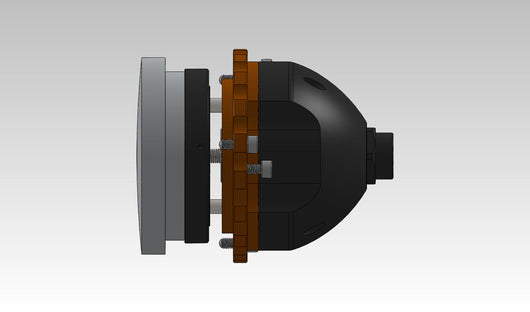

Optec Inc. C14 FastFocus Secondary Mirror Focuser
Optec Inc. C14 FastFocus Secondary Mirror Focuser: Advanced Focusing for Celestron EdgeHD Telescopes Designed for Celestron C-14 Telescopes: Tailored specifically for Celestron C-14 and EdgeHD C1400 OTA with Fastar compatibility,...
Description
Optec Inc. C14 FastFocus Secondary Mirror Focuser: Advanced Focusing for Celestron EdgeHD Telescopes
- Designed for Celestron C-14 Telescopes: Tailored specifically for Celestron C-14 and EdgeHD C1400 OTA with Fastar compatibility, enhancing their focusing capabilities.
- Unique Focusing Mechanism: Employs a system where only the secondary mirror moves for focusing, mirroring the function of many professional telescopes.
- Lockable Imaging Train: Allows the primary mirror and entire imaging train to be locked in place, avoiding flexure and tilt at the image plane for improved image quality.
- Requires FocusLynx Controller Hub: To function optimally, this focuser requires the Optec FocusLynx Controller Hub (#19690).
- Retrofit Kits for Older Models: Special retrofit kits are available for making older Celestron OTAs Fastar and FastFocus compatible.
- Enhanced Network Control: Includes the option for a #19724 Split-Ethernet wiring kit, enabling networked focusing control.
- Compatible with Various Software: FocusLynx dual-focus control hubs work with popular platforms like ASCOM, Alpaca, X2, and INDI.
- Professional-Level Focusing Solution: Ideal for astrophotographers and astronomers seeking high-precision focusing without the limitations of back-focus.
- Straightforward Integration: Designed for easy installation and compatibility with existing Celestron setups.
- Robust and Reliable: Built with high-quality materials, ensuring durability and reliability for demanding astronomical applications.
Specifications
- Mounting: Fits Celestron C-14 and EdgeHD C1400 OTA with Fastar capability
- Collimation: Integrated push-pull mechanism with six #10-32 socket caps
- Linear bearings: four 0.25" bore 3/4" closed circuit linear ball bearings
- Lead screw: 1/4-20 tpi x 2-inch length
- Motor: NPM 25mm flanged motor with 25:1 gearhead
- Step Size: 7.8 micro inch (0.197micron)
- Total Steps: 44800 steps
- Total Travel: 0.350 inches (8.9mm) for secondary mirror
- Net effective focal travel: approx. 1.75-inches at focal plane
- Height: 2.75 in. (70mm)
- Weight: 1 lb. 10 oz. (740 g)
Software and Docs
Additional Information
| Style |
Without FocusLynx Hub, With FocusLynx Hub |
|---|
Optec Inc. C14 FastFocus Secondary Mirror Focuser
$1,295.00
