Optec Inc. DirectSync ACFX motor assembly for Meade ACF f/8 built-in dual-speed focuser

$655.00

  Optec Inc. DirectSync ACFX Motor Assembly: Advanced Focusing for Meade ACF Telescopes Certainly! Here's an original, bullet-pointed, and summarized SEO description for the Optec Inc. DirectSync ACFX Motor Assembly for...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU: 19975
Availability: In Stock Pre order Out of stock
Categories: Focusers/Rotators Optec, Inc.
Tags: ACFX DirectSync Meade Optec
Description



Optec Inc. DirectSync ACFX Motor Assembly: Advanced Focusing for Meade ACF Telescopes

Certainly! Here's an original, bullet-pointed, and summarized SEO description for the Optec Inc. DirectSync ACFX Motor Assembly for Meade ACF f/8 Built-in Dual-Speed Focuser:

Title: "Optec Inc. DirectSync ACFX Motor Assembly: Advanced Focusing for Meade ACF Telescopes"

SEO Description:

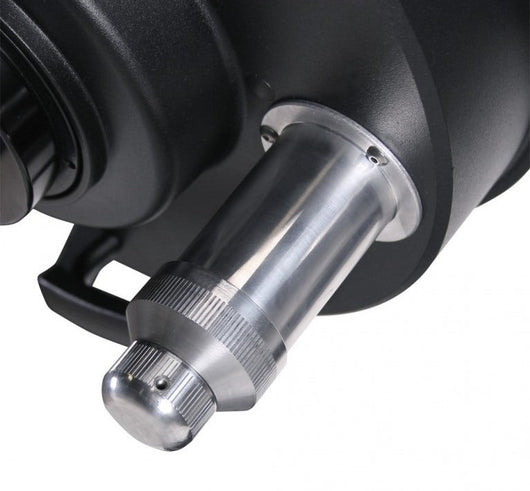

  • Designed for Meade ACF f/8 Telescopes: Tailored to fit the "reverse Crayford" focuser of Meade 8", 10", 12", 14", and 16" ACF f/8 telescopes.
  • Innovative ThirdLynx Control Circuit: Features Optec's new ThirdLynx control circuit, enhancing the motor's performance and reliability.
  • Integrated Control Electronics: All necessary control electronics are built into the focus motor, eliminating the need for an external controller.
  • Best-In-Class Clutch Mechanism: Retains the high-quality clutch mechanism of the original DirectSync motors, ensuring precise focusing.
  • USB Connectivity: Offers USB connectivity for easy integration with computer systems and existing FocusLynx software.
  • No External Controller Required: Simplifies the setup by removing the need for additional control units, making it more user-friendly.
  • Fully Compatible with FocusLynx Software: Ensures seamless operation with all existing FocusLynx software, offering a range of control options.
  • Perfect for Meade f/8 ACF Native Focuser: Ideal for astrophotographers and astronomers using Meade's f/8 ACF telescopes seeking enhanced focusing capabilities.
  • Professional Grade Focusing Solution: Suitable for both amateur and professional astronomers who demand high-quality, reliable motorized focusing solutions.
  • Streamlined and Efficient Operation: Designed for easy installation and operation, enhancing the overall user experience with Meade ACF telescopes.

Specifications

  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.35" (85mm)
  • Weight: 5.2 oz (150 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead

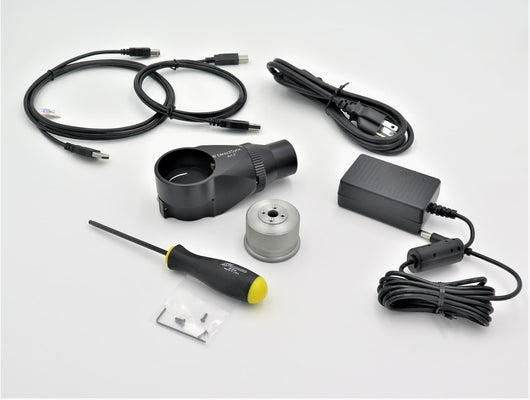

  • Connectivity: USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA

Software and Docs

ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the FTX40 compatible with all ASCOM, X2, and INDI software.
