Optec Inc. DirectSync ATX25 motor for Astro-Tech, William Optics, TS Service, and other import focusers

$525.00

  ThirdLynx DirectSync ATX25: Advanced Focusing Motor for Modern Refractors Key Features: Innovative Control Circuit: The DirectSync ATX25 motor is equipped with Optec's latest ThirdLynx control circuit, offering superior performance and...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU: 19981
Availability: In Stock Pre order Out of stock
Categories: Focusers/Rotators Optec, Inc.
Tags: ATX25 DirectSync Optec
Description

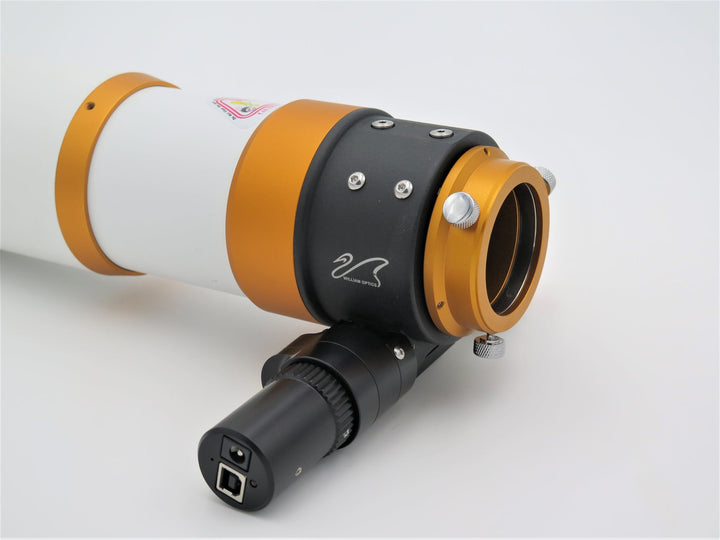

ThirdLynx DirectSync ATX25: Advanced Focusing Motor for Modern Refractors

Key Features:

  • Innovative Control Circuit: The DirectSync ATX25 motor is equipped with Optec's latest ThirdLynx control circuit, offering superior performance and reliability.

  • New Design for Recent Models: Specifically designed to fit import focusers manufactured after October 2019, ensuring a perfect match with the latest equipment.

  • Broad Compatibility: The ATX25 motor is versatile, fitting a range of focusers, including:

    • Meade Series 6000 ED Triplet APO refractors.
    • Astro-Tech models like AT80EDT, AT115EDT, AT130EDT f/6 ED Triplet Refractors, and AT80ED f/7 ED Refractor.
    • Lunt Solar Systems telescopes such as LS60MT, LS80MT, LS100MT, and LS130MT.
    • Teleskop Service TS-Optics Photoline 130mm f/7 Triplet APO.
    • William Optics Gran Turismo 71 APO Refractor.

  • Best-In-Class Clutch Mechanism: Similar to the DirectSync APX25 motors, the ATX25 features a top-tier clutch mechanism for precise and smooth focusing.

  • Integrated Control Circuit: The motor includes an all-new control circuit built directly into the focus motor end cap, eliminating the need for external controllers.

  • USB Connectivity: Offers hassle-free USB connectivity, fully compatible with all existing FocusLynx software for easy integration and control.

  • Tailored for Late 2019 Models: Addressing changes in import focusers from late 2019, the ATX25 motor is optimized for newer models for a seamless fit.

  • Options for Older Models: For telescopes predating fall 2019, the DirectSync APX25 motor is recommended. Detailed comparisons and photos are available to assist in choosing the right motor for your focuser.

  • Personalized Assistance: Customers can send in photos of their telescope focuser for expert recommendations, ensuring the perfect match for their equipment.

Specifications

  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 4.37" (111mm)
  • Weight: 5.2 oz (150 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Connectivity: USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA
