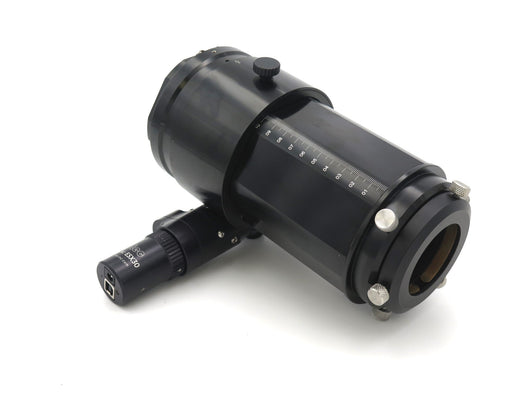

Optec DirectSync ESX30 Motor: Advanced Focusing for Explore Scientific Telescopes

Key Features:

• Integrated ThirdLynx Controller: The DirectSync ESX30 focus motor is equipped with the advanced ThirdLynx integrated controller, specifically designed for Explore Scientific's 3-inch Hex focuser.

• Exclusive Design for Explore Scientific: Tailored exclusively to fit the Explore Scientific 3-inch hex focuser, ensuring seamless integration and optimal functionality.

• Top-Tier Clutch Mechanism: Inherits the renowned Best-In-Class clutch mechanism from the original DirectSync ES30 motor, delivering unmatched precision in focusing.

• New Integrated Control Circuit: Features a new, all-in-one control circuit built directly into the focus motor end cap, enhancing the design and user experience.

• No Need for External Controller: Simplifies your astrophotography setup by eliminating the need for an external controller, making it more user-friendly.

• USB Connectivity: Fully compatible with USB connections, ensuring easy integration with all existing FocusLynx software for hassle-free operation.

• Wide Compatibility with Telescopes: Perfectly fits a range of Explore Scientific telescopes with a 3-inch Hex focuser, including:

  • ED115 FPL53 115mm Refractor.
  • ED140 FPL53 140mm Refractor.
  • ED152 f/8 CF 152mm Refractor.
  • ED165 FPL53 165mm Refractor.

Specifications

• Motor Housing Width: 1.9" (48mm)
• Overall Length: 5.56" (141mm)
• Weight: 6.6 oz (187 g)
• Step Resolution: 1.5 micron per step
• Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
• Controller: Integrated ThirdLynx

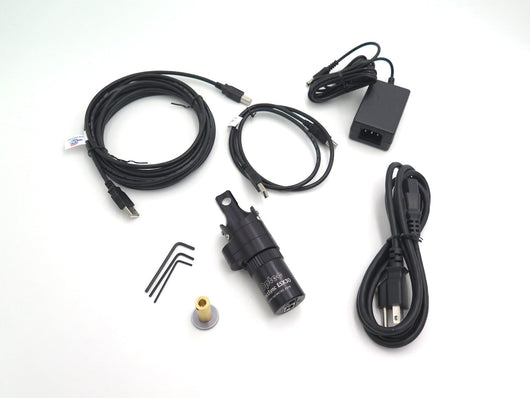

• Connectivity: USB 2.0 A-B cable (included)
• Temperature Sensor: Analog Devices ADT7302 embedded
• Input Power: 12-volts DC, 2.5 x 5.5mm plug
• Current Draw: Maximum draw approx. 350mA

Software and Docs

• Installation Instructions
• FocusLynx download page
