Optec Inc. DirectSync SWX30 Motor: Enhanced Focusing for SkyWatcher Esprit Telescopes

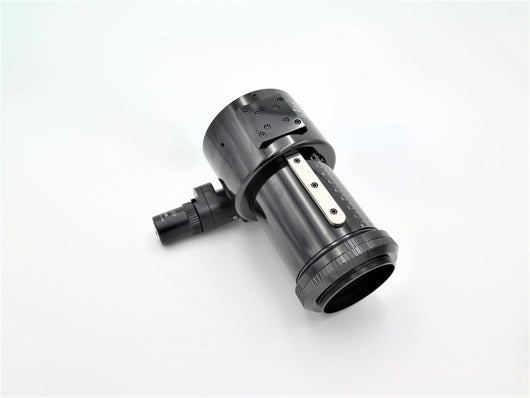

• Specialized for SkyWatcher Esprit Focusers: Engineered specifically for the SkyWatcher 3-inch focusers, ideal for Esprit 100/120/150mm telescopes.
• Advanced ThirdLynx Control Circuit: Incorporates Optec's cutting-edge ThirdLynx control circuit, providing superior motor performance and reliability.
• Built-In Clutch Mechanism: Retains the high-quality clutch mechanism of the original DirectSync SW30 motors for precise focusing control.
• Integrated Control Circuit Design: Features a new integrated control circuit within the focus motor end cap, streamlining the system by removing the need for external controllers.
• USB Connectivity: Offers USB connectivity for seamless integration with computer systems and existing FocusLynx software.
• Simplified Setup: The motor's design eliminates the need for additional control units, enhancing user convenience and ease of installation.
• Professional Grade Focusing Tool: Ideal for astrophotographers and astronomers seeking a reliable, precise motorized focusing solution for their SkyWatcher Esprit telescopes.
• Fully ASCOM Compliant Software Compatibility: Works in conjunction with FocusLynx software for advanced control and automation of focusing tasks.
• Enhances Astrophotography Results: Particularly beneficial for astrophotographers looking to achieve the sharpest possible focus in their images.
• Ready to Use Out-of-the-Box: Designed for ease of use, the DirectSync SWX30 is ready for immediate deployment, simplifying the astrophotography setup process.

Specifications

Compatible With

• Skywatcher Esprit 100 focuser,
• Skywatcher Esprit 120 focuser,
• Skywatcher Esprit 150 focuser.

• Motor Housing Width: 1.9" (48mm)
• Overall Length: 3.55" (90mm)
• Weight: 6.0 oz (165 g)
• Step Resolution: 1.1 micron per step
• Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
• Controller: Integrated ThirdLynx
• Connectivity: USB 2.0 A-B cable (included)
• Temperature Sensor: Analog Devices ADT7302 embedded
• Input Power: 12-volts DC, 2.5 x 5.5mm plug
• Current Draw: Maximum draw approx. 350mA
