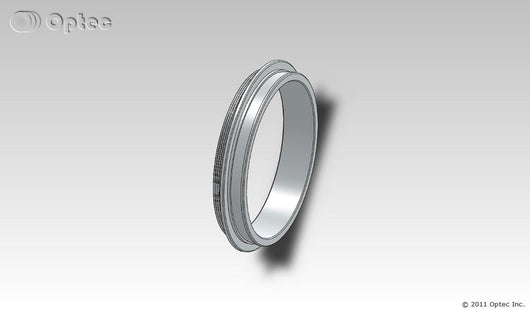

The #17834 3-inch Takahashi mount screws directly onto Takahashi equipment with female 72mm threads and presents an OPTEC-3000 dovetail to attach to any product with an OPTEC-3000 receiver, including the TCF-S3, IFW-3, and Pyxis 3" rotator.

Specifications

• Outside Diameter: 3.45" (87.6mm)
• Overall Height: 1.02" (25.9mm)
• Clear Aperture: 2.6" (66mm)
• Weight: 2.56 oz (72.6g)
• Back-focus Usage: 0.08" (2.03mm)
• Telescope Side Connection: OPTEC-3000 Dovetail
• Camera Side Connection:: Takahashi 72mm Female Thread

• Drawing
